PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1500 × 1100 mm
Individual work surface size per user	1400 x 700 mm
Work surface thickness	38 mm
PVC edge band thickness	2 mm
Knee clearance height under work surface	673 mm
Frosted acrylic privacy divider height	450 mm
Upper open shelf depth on end cabinet	300 mm
Under-desk storage pedestal width	406 mm
Cable grommet diameter	80 mm
Trestle support leg spread diameter	600 mm
Drawer internal height (file drawer)	241 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity per work surface	136 kg
Drawer slide cycle rating	50000 cycles
Door hinge cycle rating	80000 cycles
Total unit net weight	126 kg
Recommended user capacity	2 people
Laminate surface abrasion resistance	2000 cycles
Manufacturer limited warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	E1-grade melamine-faced chipboard, walnut woodgrain laminate finish, anti-scratch/anti-stain coating
Support trestle leg	2mm thick powder-coated matte black steel, angled tripod design
Storage cabinet panels	E1-grade melamine-faced chipboard, two-tone grey/walnut finish, 18mm thick panel
Desktop privacy divider	5mm thick frosted translucent acrylic, frameless desk-mounted design
Cabinet door hinges	Cold-rolled steel soft-close hinges, nickel-plated finish
Drawer slides	Full-extension cold-rolled steel ball-bearing slides, zinc-plated finish
Desk base leveling glides	10mm diameter nylon adjustable glides, 12mm adjustment range
Cable management components	ABS plastic cable grommets and under-desk wire raceways
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated desktop power/data grommet	Embedded port provides AC power, USB charging, and data pass-through for desktop devices
Lockable end storage cabinets	Central key lock secures both lower doors and upper storage compartments for personal items
Under-desk file storage	Dual lower drawers per station accommodate hanging letter and legal-sized office documents
Upper open storage shelves	Two tiered open shelves above each work zone for easy access to office supplies and decor
Acrylic privacy divider	Translucent frameless screen blocks direct line of sight between adjacent users while preserving light
Adjustable leveling glides	Rotatable feet adjust up to 12mm to stabilize the desk on uneven office flooring
Under-desk cable raceway	Concealed channel routes power and data cables from grommet to floor outlets for a tidy workspace
Modular connection capability	Pre-drilled assembly points allow connection to additional workstation units for expanded office layouts
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office space	Ideal for corporate open-plan offices, providing separated work zones without full cubicle walls
Startup and small business workspace	Suitable for small teams requiring integrated storage and cable management out of the box
Shared co-working environment	Works for hot-desking and shared workspaces with lockable personal storage for each seat
Administrative and back-office departments	Appropriate for HR, finance, and operations staff requiring document storage space
Project team work areas	Configured for two-person project teams to collaborate while maintaining individual work surface space
Call center and customer service floors	Suitable for high-density call center deployments with built-in cable management for headsets and devices

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to structural performance
EN 527-2:2016	Office worktables dimensional and safety requirements for seated work, applicable to height clearances
EN 14073-2:2004	Office storage furniture safety requirements, applicable to cabinet and drawer components
EN 13722:2004	Furniture assessment of surface resistance to abrasion, applicable to laminate top durability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to load and durability testing
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable to cabinet and drawer performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to laminate cabinet and desk components
GB/T 3327-2017	Performance requirements for office desks and workstations, applicable to work surface and load ratings
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to MFC/MDF panel materials
GB/T 4897.3-2003	Performance requirements for particleboard for furniture use, applicable to work surface and cabinet panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate cabinet and desk components;
2. GB/T 3327-2017: Performance requirements for office desks and workstations, applicable to work surface and load ratings;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to MFC/MDF panel materials;
4. GB/T 4897.3-2003: Performance requirements for particleboard for furniture use, applicable to work surface and cabinet panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-STG-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-STG-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-STG-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

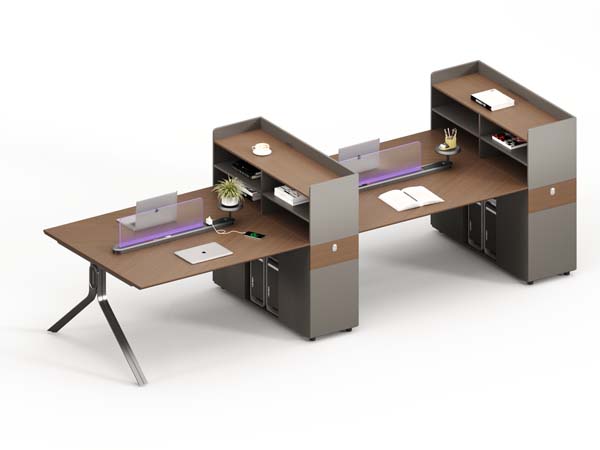

The 2-Person Staggered Modular Office Workstation with Integrated Storage and Privacy Divider (model WS-2P-STG-2800) is a streamlined unbranded commercial workspace solution designed to balance collaborative access and individual focus in shared environments. Its staggered layout positions two equal, generously sized individual work surfaces separated by a frameless, desk-mounted frosted acrylic privacy divider that blocks direct line of sight between adjacent users while letting natural light filter across the unit. An end storage cabinet anchors one side of the configuration, with tiered open upper shelves positioned for easy access above each work zone, and enclosed storage below aligned to each user’s seated position.
The workstation is constructed for long-term commercial use, with work surfaces made of E1-grade walnut-grey melamine-faced chipboard finished with anti-scratch, anti-stain coating and sealed with durable PVC edge banding. Angled tripod trestle legs cut from matte black powder-coated steel provide stable support, paired with nylon adjustable leveling glides that compensate for uneven flooring. Storage components use matching E1-grade melamine-faced chipboard, with soft-close nickel-plated cold-rolled steel hinges on cabinet doors, zinc-plated full-extension ball-bearing drawer slides, and integrated ABS plastic cable management parts including desktop grommets and concealed under-desk raceways. The frosted acrylic privacy divider is mounted directly to the desk surface without a bulky frame for a clean, modern look.
Functional features are tailored to daily office use: embedded desktop power and data grommets provide AC power, USB charging, and data pass-through for connected devices, while the under-desk raceway routes cables neatly to floor outlets to eliminate surface clutter. Each user accesses lockable storage secured by a central key that locks both lower cabinet compartments and upper storage, plus dual lower drawers sized to hold hanging letter and legal-sized documents. The open upper shelves hold frequently used supplies or small decor items within arm’s reach.
This workstation fits a wide range of commercial spaces, including corporate open-plan offices where it creates defined work zones without the visual weight of full cubicle walls, startup and small business offices that benefit from out-of-the-box integrated storage, co-working spaces where lockable storage supports hot-desking use cases, back-office administrative departments handling large volumes of documents, two-person project team zones, and high-density call center floors. For procurement planning, note that each unit ships across multiple cartons, requires on-site assembly, and comes with a 5-year limited manufacturer warranty. The static load capacity per work surface supports standard office equipment, while the hardware cycle ratings support regular daily use in high-traffic work environments.

2-Person Staggered Modular Office Workstation with Integrated Storage and Privacy Divider Specifications
