PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	4 users
Worktop distributed static load	80 kg per seat
Drawer rated load	20 kg
Open shelf rated load	15 kg per shelf
Whole workstation net weight	145 kg
Caster load capacity on mobile storage unit	40 kg per set of 4 casters
Adjustable levelling foot range	10 mm
Suggested user weight at each seat	120 kg
Warranty reference	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm wood-grain melamine-faced particleboard with 2 mm PVC edge banding
Support frame	Powder-coated charcoal steel tube legs and under-top rails
Center divider screens	Upholstered fabric over padded core with metal under-desk brackets
Storage cabinet carcass	18 mm graphite-gray melamine-faced board with matching edge banding
Drawer and door fronts	Wood-grain laminate fronts with charcoal recessed pulls and one integrated lock position
Hardware and mobility parts	Steel hinges or drawer slides, 40 mm nylon casters, and adjustable steel leveling feet

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-position work layout	Two face-to-face bench pairs provide separate 1200 mm work zones while sharing center divider screens
Low privacy separation	350 mm above-desk upholstered screens reduce direct sightlines without blocking ceiling light or room visibility
Under-desk side storage	Each outer return combines one lockable front compartment with two side-access open shelves
Mobile cabinet positioning	Foreground cabinet uses small casters so it can roll under the side return or serve as a nearby mobile pedestal

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton size	1450 x 760 x 180 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office benching	Suitable for four staff in a compact open office because paired work surfaces and low screens preserve collaboration while separating monitors
Project and procurement layout	Recommended for standardized departmental installations where side storage, cable-capable bench structure, and repeatable four-person modules are required

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk suitability	Applies to safety, dimensions, and structural requirements for work surfaces used as office desks
EN 527-2 mechanical safety suitability	Applies to desk strength, durability, and stability tests
EN 16139 seating strength non-applicability check	Exclude from desk purchase unless task chairs are included in the same supply package
EN 14073-2 storage furniture suitability	Applies to safety and strength requirements for office storage cabinets and pedestals

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk products suitability	North American acceptance reference for desk load, stability, and durability testing
ANSI/BIFMA X5.9 storage units suitability	Applies to mobile pedestals and office storage cabinets used with the workstation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural suitability	General technical standard for wooden furniture cabinets and tables
GB/T 3325 metal furniture suitability	Applicable to the steel legs and powder-coated support components
GB 18580 emission testing suitability	Formaldehyde emission requirement for wood-based panels used in desktops and cabinets
GB/T 10357 furniture strength suitability	Desk and storage cabinet mechanical test reference for load, stability, and durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural suitability: General technical standard for wooden furniture cabinets and tables;
2. GB/T 3325 metal furniture suitability: Applicable to the steel legs and powder-coated support components;
3. GB 18580 emission testing suitability: Formaldehyde emission requirement for wood-based panels used in desktops and cabinets;
4. GB/T 10357 furniture strength suitability: Desk and storage cabinet mechanical test reference for load, stability, and durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-SIDE-STORAGE-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-SIDE-STORAGE-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-SIDE-STORAGE-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

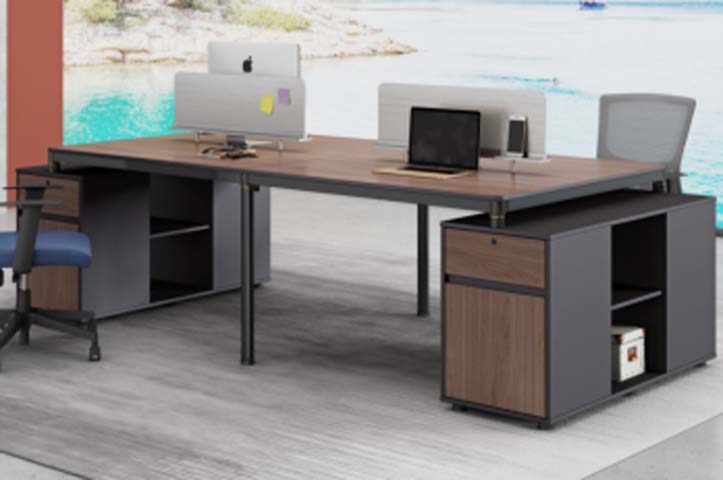

The Four-Person Panel Workstation with Side Storage Cabinets is an unbranded office workstation designed as a compact, repeatable benching module for collaborative work environments. Model WS-4P-SIDE-STORAGE-2800, it organizes four users into two face-to-face bench pairs, with each person assigned a defined work zone along shared work surfaces. Upholstered low divider screens run through the center, reducing direct sightlines between opposing seats while preserving visibility across the room and allowing ceiling light to pass over the panels. Side returns at the outer edges give the layout integrated storage and a structured, practical footprint. Its visual character combines wood-grain laminate surfaces, graphite-gray cabinetry, charcoal steel supports, and fabric privacy panels for a balanced commercial-office appearance. The work surfaces use 25 mm wood-grain melamine-faced particleboard with 2 mm PVC edge banding, while the finished top thickness is specified at 50 mm. The support structure consists of powder-coated charcoal steel tube legs and under-top rails, using an 80 mm main leg section with 2 mm metal wall. Center divider screens are upholstered fabric over a padded core and secured with metal under-desk brackets. Storage cabinet carcasses are made from 18 mm graphite-gray melamine-faced board with matching edge banding. Drawer and door fronts use wood-grain laminate, charcoal recessed pulls, and one integrated lock position. Hardware includes steel hinges or drawer slides, 40 mm nylon casters on the mobile storage unit, and adjustable steel leveling feet. Functionally, each main seat provides 680 mm high and 900 mm wide knee clearance. Cable management is supported by an 80 mm diameter cable opening and a cable tray with 120 mm depth. The rated distributed static load is 80 kg per seat, with drawer capacity rated at 20 kg and open shelf capacity at 15 kg per shelf. Each outer return includes one lockable front compartment and two side-access open shelves. The foreground cabinet is mobile and can roll beneath the side return or remain nearby as a convenient pedestal; its four casters are rated for 40 kg per set. Leveling feet offer 10 mm of adjustment for uneven floors. The complete workstation weighs 145 kg net. This configuration is well suited to open-plan offices, departmental bench installations, project-based seating, and other commercial spaces where four-person modules must combine collaboration, privacy, and nearby storage. It can also support residential workrooms or co-working rooms where multiple users need defined places and shared cable-capable structure. Procurement teams should plan for delivery as multiple cartons, confirm final packaging details with the supplier, and account for assembly and placement before occupancy. Buyers should also verify floor load access, lock allocation, caster use, cable requirements, and repeatability across a standardized office layout.

Four-Person Panel Workstation with Side Storage Cabinets Specifications
