PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	2 persons
Work surface distributed load	100 kg
Per mobile pedestal load	30 kg
File drawer load	20 kg
Stationary support leg vertical load	50 kg
Net weight	78 kg
Caster dynamic load per set	40 kg per pedestal
Warranty duration	5 years
Color options	2 finishes
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm engineered-wood board with light-gray matte laminate and sealed edge banding
Central divider	Ribbed gray fabric-wrapped panel over composite core
Mobile pedestals	Gray powder-coated steel cabinet bodies with formed corner posts
Drawer fronts	Steel panels with recessed horizontal pull reveal and integrated lock fitting
Outer support leg	Round white powder-coated steel tube with gray non-marking foot cap
Casters and hardware	Four black nylon twin-wheel swivel casters per pedestal with steel mounting stems

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-person privacy arrangement	A 650 mm high central divider separates two 1200 mm wide work zones while sharing one footprint
Mobile under-desk storage	Each pedestal rolls on four 50 mm swivel casters and can be pulled out for filing or moved to free leg room
Cable routing	A 60 mm grommet beside the divider routes monitor or power cables below the work surface
Mixed support structure	Two rigid pedestal bodies and one outer round leg carry the rectangular top without a central fixed modesty panel

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Package count	3 cartons
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan two-person workstation	Suitable for compact face-to-face bench planning where a central divider gives visual separation and each user retains rolling storage
Project office or training administration area	Suitable where staff need temporary reconfiguration, personal filing and cable access without fixed floor mounting

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Apply office desk safety, strength and dimensional requirements for seated work surfaces
EN 527-2:2002	Apply mechanical safety, stability and durability test methods for office work tables
EN 14073-2:2004	Apply safety requirements for office storage pedestals, including drawers, locks and stability
EN 14073-3:2004	Apply stability and structural-strength test methods for mobile office storage

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Use desk products strength, load, fatigue and stability tests for the top, support leg and pedestal-as-support structure
ANSI/BIFMA X5.9-2019	Use storage unit tests for drawer operation, load, interlock behavior, stability and casters
ANSI/BIFMA X5.1-2017	Use only if matching seating is supplied, for chair strength and office caster floor-use safety

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Use for wooden-furniture general technical requirements, dimensional tolerances and surface quality of the laminated top
GB/T 3325-2017	Use for metal furniture requirements covering the steel pedestals, leg, coating and hardware
GB 18584-2001	Use for indoor decorative wood-based-panel furniture limited formaldehyde emission testing
GB/T 10357.1-2989	Use table mechanical test methods for strength, stability, drawer operation and floor safety

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Use for wooden-furniture general technical requirements, dimensional tolerances and surface quality of the laminated top;
2. GB/T 3325-2017: Use for metal furniture requirements covering the steel pedestals, leg, coating and hardware;
3. GB 18584-2001: Use for indoor decorative wood-based-panel furniture limited formaldehyde emission testing;
4. GB/T 10357.1-2989: Use table mechanical test methods for strength, stability, drawer operation and floor safety;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS2-MOB-DIV-PED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS2-MOB-DIV-PED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS2-MOB-DIV-PEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

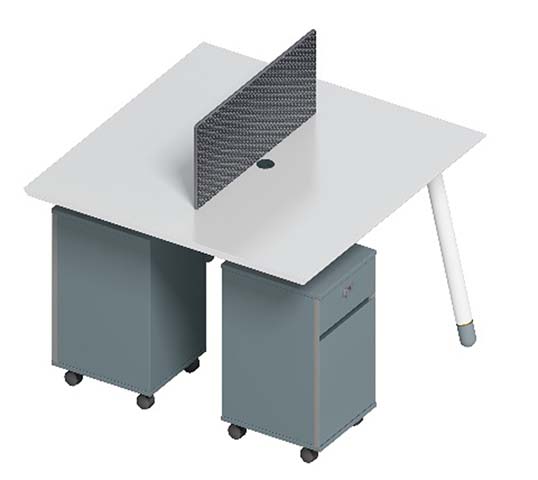

The Two-Person Mobile Workstation with Central Divider and Rolling Pedestals offers a structured shared workspace for two users in a single footprint. Model WS2-MOB-DIV-PED is an unbranded office workstation with a gray-and-white finish, combining a light-gray engineered-wood work surface, gray fabric-covered divider, white support leg, and gray steel pedestal bodies. Its rectangular layout provides two 1200 mm wide work zones separated by a 650 mm high central divider, giving face-to-face users visual privacy without requiring separate desks. Each main seat has an effective knee clearance of 680 mm high and 900 mm wide. The work surface uses a 25 mm engineered-wood board with light-gray matte laminate and sealed edge banding, presenting a clean, uniform top with a finished thickness of 50 mm. The central divider is a ribbed gray fabric-wrapped panel over a composite core, adding texture while defining the two personal work areas. Under the top, two gray powder-coated steel mobile pedestals serve both as storage and as rigid support elements. They feature formed corner posts, steel drawer fronts with recessed horizontal pull reveals, and integrated lock fittings. The outer side is supported by a round white powder-coated steel tube with an 80 mm main section, 2 mm metal wall, and a gray non-marking foot cap. Each pedestal is fitted with four black nylon twin-wheel swivel casters on steel mounting stems. The 50 mm casters allow the cabinets to roll out for filing or be moved aside to create additional leg room. Cable management is integrated beside the divider through a 60 mm grommet that directs monitor and power cables below the surface, where a cable tray with 120 mm depth helps contain leads. The product specification also lists an 80 mm diameter cable opening. The mixed support arrangement uses the two pedestal bodies and the outer round leg, avoiding a central fixed modesty panel and preserving an open under-desk feel. Rated capacities align with regular office use: the work surface supports a 100 kg distributed load, each mobile pedestal supports 30 kg, each file drawer supports 20 kg, the stationary support leg carries a 50 kg vertical load, and each pedestal caster set is rated for 40 kg dynamic load. The workstation has a net weight of 78 kg. This configuration is suited to compact open-plan bench planning, project offices, and training administration areas where temporary reconfiguration, personal filing, cable access, and visual separation are useful, with no fixed floor mounting required. Procurement teams should plan for a multi-carton delivery, allow 40 minutes per set for assembly, and note the reference packaged volume of 1 cubic meter per set and reference packaged gross weight of 180 kilograms per set.

Two-Person Mobile Workstation with Central Divider and Rolling Pedestals Specifications
