PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1200 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static load capacity per work surface	135 kg
Drawer slide cycle rating	50000 open/close cycles
Cabinet door hinge cycle rating	80000 open/close cycles
Net weight of complete workstation	85 kg
Recommended maximum user weight per seat	150 kg
Surface abrasion resistance	2000 cycles
Product warranty term	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate	E1 grade MDF core with melamine wood-grain laminate
Support frame and legs	Powder-coated matte black steel tubing with angled geometry
Storage cabinet panels	18 mm thick melamine-faced particleboard
Central privacy divider	MDF panel with light brown laminate finish
Storage cabinet hardware	Zinc-alloy handles and steel hinges
Desk edge trim	2 mm thick PVC edge banding
Cabinet base feet	Rigid plastic adjustable glides
Cable management components	ABS plastic grommets and steel under-desk cable tray
Cabinet interior shelves	18 mm thick engineered wood adjustable shelves
Frame joint connectors	High-strength steel cam-lock and bolt hardware
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two independent work zones	Split by central vertical divider to reduce visual distraction between adjacent users
Under-desk storage cabinets	Two lockable side cabinets with doors for secure document and supply storage
Dual position seating access	Supports one seated user on each side of the central divider at the main work surface
Cable routing system	Integrated grommets and under-desk tray to conceal power and data cables for monitors and peripherals
Adjustable leveling glides	Rotate to adjust height at leg and cabinet bases to stabilize desk on uneven floors
Knock-down modular assembly	Ships flat in separate panels and frame sections for on-site assembly
Cabinet interior open shelf	Open shelf section between closed cabinets for frequently accessed binders and documents
Angled leg support design	Offset splayed leg geometry eliminates knee obstruction for seated users
Lockable cabinet doors	Keyed lock on right side cabinet to secure confidential office materials
Reversible layout capability	Components allow L-return to be configured for left or right side installation
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office areas	Provides two separated workstations in one footprint for high-density staff seating
Small business shared offices	Integrated storage eliminates need for separate filing cabinets for two workers
Administrative staff work areas	Durable surface and lockable storage support daily document processing tasks
Training and team collaboration spaces	Dual surfaces support paired work, side-by-side training, and shared project tasks
Home office shared workspaces	Accommodates two people working from home with separate dedicated work zones
Branch office standardization	Modular design allows consistent deployment across multiple office locations

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to structural performance testing
EN 527-2:2016	Office worktables dimensional safety requirements, applicable to knee clearance and surface height
EN 14073-2:2004	Office storage furniture safety requirements, applicable to integrated cabinet sections
EN 12521:2015	Furniture strength durability stability for non-domestic seating-adjacent tables

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to static load and durability testing
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable to cabinet door and drawer testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk panel and cabinet construction
GB/T 3327-2016	Performance test methods for office desks, applicable to desktop load and stability testing
GB 18580-2017	Formaldehyde emission limits for wood-based panels, required for E1 grade panel verification
GB/T 4897.3-2003	Specification for particleboard used in furniture, applicable to cabinet panel substrates

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and cabinet construction;
2. GB/T 3327-2016: Performance test methods for office desks, applicable to desktop load and stability testing;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for E1 grade panel verification;
4. GB/T 4897.3-2003: Specification for particleboard used in furniture, applicable to cabinet panel substrates;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LWS-2P-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LWS-2P-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LWS-2P-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

The two-person L-shaped office workstation features a streamlined modern silhouette designed to accommodate two separate work zones within a single cohesive footprint. Its layout is organized around a central vertical privacy divider that splits the continuous L-shaped work surface into two distinct user areas, reducing visual distraction between adjacent occupants. Integrated wood-grain storage cabinetry runs along one edge of the unit, positioned to sit within easy reach of both seated users without impeding leg room, while angled matte black steel legs create an open, lightweight visual profile that avoids the bulk of fully enclosed desk frames. The workstation is constructed for consistent long-term daily use, with a work surface built on an E1 grade MDF core finished in durable melamine wood-grain laminate, edged with 2mm thick PVC banding to resist impact damage. Angled support legs are formed from powder-coated matte black steel tubing, paired with rigid plastic adjustable glides at both leg and cabinet bases to compensate for uneven flooring. Integrated storage components use 18mm thick melamine-faced particleboard, fitted with zinc-alloy handles, steel hinges, and adjustable 18mm engineered wood interior shelves. The central privacy divider is finished in light brown laminate, while cable management components include ABS plastic grommets set into the work surface and a steel under-desk tray to contain power and data cords. Functionally, the unit delivers purpose-driven features for shared work use. The central divider creates two independent work zones that support dual-position seating, with one user positioned on each side of the divider at the main work surface. Two lockable side cabinets provide secure enclosed storage for documents and supplies, while an open shelf between the closed cabinet sections offers quick access to frequently used binders and materials. The integrated cable routing system conceals cords for monitors and peripherals to maintain a tidy work surface, and the knock-down modular design allows for straightforward on-site assembly. Each work surface supports a static load of 135kg, with drawer slides rated for 50,000 open/close cycles and cabinet hinges rated for 80,000 cycles to stand up to regular daily use; the unit carries a 5-year product warranty. This workstation fits a wide range of both commercial and residential spaces. It is well suited for open-plan office areas, where its compact footprint enables high-density staff seating, as well as small business shared offices where integrated storage removes the need for separate filing cabinets for two workers. It performs reliably in administrative work areas for daily document processing, in training and team collaboration spaces for paired work and side-by-side project tasks, and in shared home offices where two remote workers require dedicated, separated work zones. Its consistent modular design also supports standardized deployment across multiple branch office locations. For procurement planning, note that the unit ships flat in separate panels and frame sections, requiring on-site assembly with a reference assembly time of 40 minutes per set.

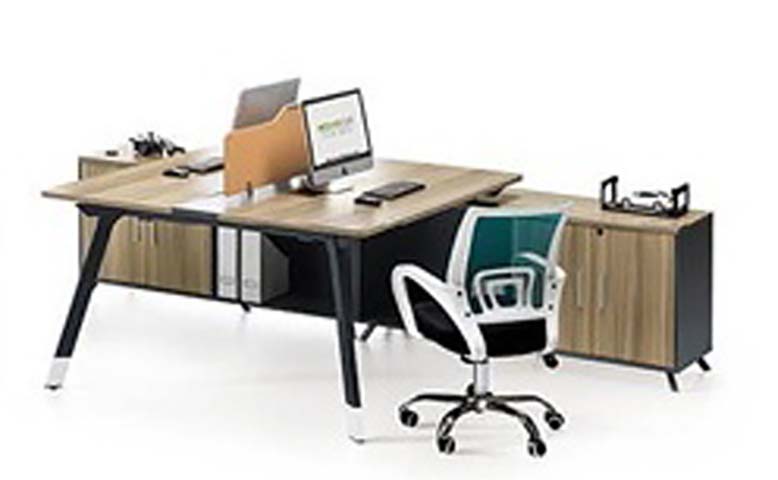

Two-Person L-Shaped Office Workstation with Integrated Side Storage and Privacy Divider Specifications
