PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended seated users	2 persons
Uniform work-surface distributed load	100 kg
Pedestal drawer load per drawer	25 kg
Open shelf load	20 kg
Product net weight	75 kg
Work-surface impact and daily-use rating	General office duty
Suggested maximum monitor weight	15 kg per user
Hardware cyclic service target	50,000 drawer operations
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-grain laminate panel with light-grey impact-resistant edge banding
Divider	Fabric-covered panel over a composite core with light top trim
Support legs	50 mm diameter grey powder-coated steel cylindrical tubes
Frame connectors	Die-cast or injection-moulded corner blocks with grey finish
Pedestal carcass	18 mm walnut-look and dark-grey laminated composite panels with PVC edge banding
Drawer and door hardware	Steel drawer runners with integrated recessed pull handles

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-user separation	Vertical fabric divider creates two face-to-face or adjacent work zones and reduces direct visual distraction
Side storage	Right-side pedestal provides two handle-operated storage sections plus one open shelf for documents or CPU accessories
Cable management	80 mm circular cable port with removable cover at the divider base routes monitor and power cables below the work surface
Knockdown assembly	Legs, frame rails, divider and pedestal ship separately and connect with cam bolts, screws and corner brackets

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits two-person clerical, administrative or operational teams needing separated monitors, shared support space and under-desk storage
Procurement configuration	Can be ordered in rows for call centers, administration departments or training offices; cable grommet and compact pedestal suit computer-based work

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS2-DSK-WAL-PED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS2-DSK-WAL-PED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS2-DSK-WAL-PEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

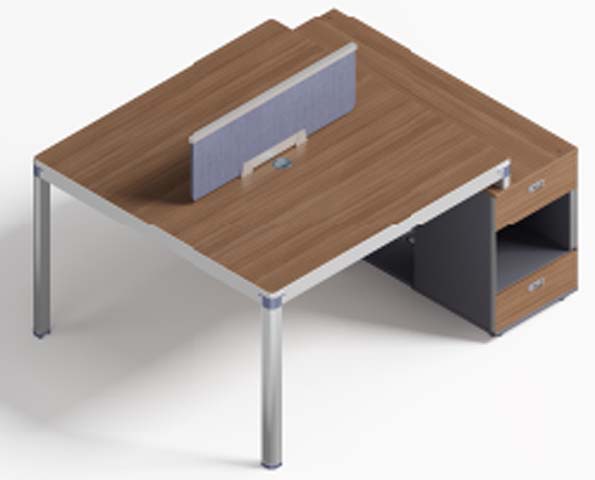

The Two-Person Workstation with Central Divider and Side Storage Pedestal offers an organized shared-desk solution for environments where two users require defined personal space without a fully isolated layout. Model WS2-DSK-WAL-PED is presented as an unbranded office workstation with a wood-grain laminate work surface, grey metal support structure, fabric-covered divider, and matching laminate storage pedestal. Its visual character balances warm wood-tone surfaces with neutral grey framing and a softly upholstered central screen, giving the workstation a practical commercial-office appearance. The layout is configured for two seated users, with the vertical divider creating separate face-to-face or adjacent work zones and reducing direct visual distraction. A side pedestal positioned on the right adds storage while keeping the main work zones compact. The desk uses a wood-grain laminate work surface with light-grey impact-resistant edge banding, supported by grey powder-coated steel cylindrical tube legs and grey-finished die-cast or injection-moulded corner blocks. The divider is a fabric-covered panel over a composite core, finished with light trim along the top. The pedestal is constructed from walnut-look and dark-grey laminated composite panels with PVC edge banding, while its drawers or door operate on steel runners with integrated recessed pull handles. Functionally, the workstation supports two users and is rated for general office duty. The pedestal provides two handle-operated storage sections and one open shelf suitable for documents or CPU accessories, helping each seating position keep materials accessible but contained. At the base of the divider, an 80 mm circular cable port with removable cover routes monitor and power cables below the work surface, supported by a cable tray. This makes the desk suited to computer-based tasks where each user needs space for a monitor and connected equipment. The design is knockdown, with legs, frame rails, divider, and pedestal shipped as separate components that connect using cam bolts, screws, and corner brackets. Buyers should plan for assembly and allow sufficient receiving space, as packaging and carton references may vary across logistics records. The workstation fits open-plan offices, clerical or administrative areas, operational teams, call centers, training offices, and residential workrooms that follow a commercial-style two-person layout. It can also be ordered in rows for larger departments. Procurement teams should review load guidance, storage access orientation, cable placement, seating clearance, delivery packaging, and assembly requirements before specification.

Two-Person Workstation with Central Divider and Side Storage Pedestal Specifications
