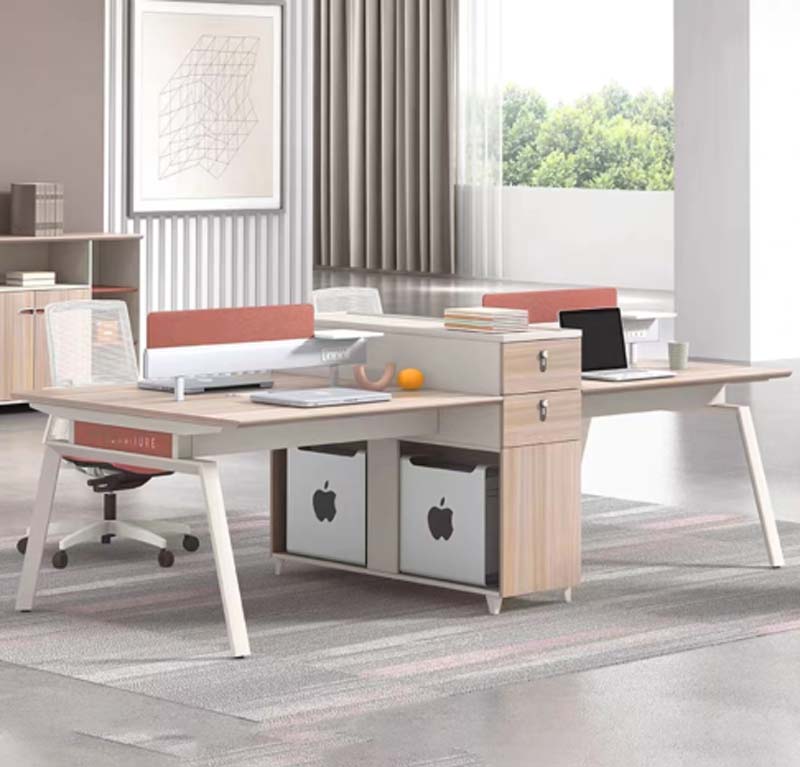

Product supplier2-Person Modular Office Workstation with Central Storage and Divider Screens, 25mm E1 grade particleboard with melamine laminate finish, 2mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1200 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 100 kg | |
|---|---|---|
| Recommended user count per unit | 2 | |
| Product net weight | 135 kg | |
| Fabric screen acoustic noise reduction coefficient | 0.35 | |
| Desk leg base stability lateral load rating | 80 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Recommended warranty period for commercial use | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface panel | 25mm E1 grade particleboard with melamine laminate finish, 2mm PVC edge banding | |
|---|---|---|
| Desk support frame | 1.5mm thick cold-rolled steel with matte white powder coating | |
| Privacy divider screens | 25mm thick high-density fiberboard core with terracotta woven polyester fabric upholstery | |
| Drawer bodies | 0.8mm thick cold-rolled steel with matte light grey powder coating | |
| Drawer hardware | Zinc alloy lock cores, 3-section ball-bearing steel drawer slides | |
| Central cabinet side panels | 18mm melamine-faced particleboard matching work surface wood finish | |
| CPU bay internal dividers | 18mm melamine particleboard with matte light grey finish | |
| Adjustable foot pads | Nylon base with steel threaded stud, 10mm height adjustment range | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Lockable upper drawers | Two keyed cam locks per pedestal, securing personal items and documents, independent locking for each drawer | |
|---|---|---|
| Under-desk open storage bays | Two open compartments sized for desktop PC towers, open front access for cable routing and equipment maintenance | |
| Raised monitor shelf | Fixed elevated shelf mounted to divider frame, elevates monitors to ergonomic eye level to reduce neck strain | |
| Integrated cable management | Central cable pass-through channels under work surface, routing power and data cables from work area to floor outlets | |
| Visual privacy divider | Upholstered screen blocks direct line of sight between adjacent seated users, reduces visual distraction in open offices | |
| Adjustable leveling feet | Rotating foot pads under storage base and leg ends, compensates for uneven office floors up to 10mm height difference | |
| Modular connection capability | Pre-drilled connection points on side frames, allows linking multiple identical workstations to form larger open office clusters | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Scalable two-person unit that can be linked to create large team work zones for corporate offices | |
|---|---|---|
| Small startup workspaces | Compact double workstation fits small office footprints while providing individual storage and privacy | |
| Administrative staff work areas | Lockable storage and ergonomic work surface suits administrative and clerical daily work tasks | |
| Shared co-working hubs | Standardized dimensions and independent work zones suit rotating hot-desking co-working setups | |
| Government or institution office areas | Formal neutral color scheme and compliant durable construction meets public sector procurement requirements |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to work surface load and leg stability testing | |
|---|---|---|
| EN 1335-1:2020 | Office furniture ergonomic guidelines, applicable to under-desk knee clearance dimensions | |
| EN 1022:2018 | Furniture seating and table stability test methods, applicable to workstation tip resistance verification |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to work surface and drawer load cycle testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to central pedestal drawer slide durability testing |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel dimensional tolerance and edge quality | |
|---|---|---|
| GB/T 3327-2016 | Office desk performance test methods, applicable to static load and stability verification | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E1 grade particleboard used in desk panels |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel dimensional tolerance and edge quality; 2. GB/T 3327-2016: Office desk performance test methods, applicable to static load and stability verification; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1 grade particleboard used in desk panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
