PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 1400 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Single work surface static load capacity	80 kg
Total workstation net weight	210 kg
Recommended maximum user weight per chair	120 kg
Caster rolling durability cycles	40000 cycles
Privacy screen fabric abrasion resistance	30000 Martindale cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface panel	18mm thick melamine-faced particleboard, PVC edge banding
Support leg frame	1.2mm thick powder-coated white steel rectangular tubing
Privacy divider panel core	9mm thick MDF substrate, fabric wrapped surface
Storage pedestal cabinet body	15mm thick melamine-faced particleboard, thermoplastic edge
Drawer guides	Three-section full-extension cold-rolled steel slides
Pedestal casters	Black polyurethane swivel casters without brake
Office chair seat/back support	White polypropylene frame with breathable grey mesh
Office chair base	Glass fiber reinforced nylon five-star base
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated cable management	Recessed cable grommets at each work position route power/data cables below surface
Movable storage configuration	Two lockable drawers per pedestal, mobile on four casters to reposition under any work position
Visual privacy separation	Low-height fabric dividers between adjacent workstations reduce eye contact without blocking overhead light
Office chair height adjustment	Class 3 gas lift adjusts seat height 520 mm to match 750mm work surface height
Office chair mobility	Five 360-degree swivel casters allow unobstructed movement on carpeted office floors
Pedestal reconfiguration	Freestanding non-fixed pedestals allow flexible rearrangement for team layout changes
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan corporate office spaces	Accommodates three staff per unit to maximize space utilization in team work zones
Co-working and shared office spaces	Freestanding design allows fast reconfiguration for changing team sizes and project groups
Startup and creative agency work zones	Light neutral color palette matches modern bright interior design and collaborative work environments
Training and temporary project offices	Knocked-down packaging enables fast deployment and relocation for short-term project teams

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to work surface load and stability testing
EN 1335-2:2009	Office chairs safety requirements, applicable to structural strength of matching seating
EN 12529:1998	Castors for office furniture, applicable to rolling performance and durability of casters

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard, applicable to work surface static load and leg stability verification
ANSI/BIFMA X5.1-2017	Office chairs standard, applicable to chair back strength and caster durability requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk panel dimensional stability and finish quality
GB/T 3323-2017	General technical requirements for metal furniture, applicable to steel frame welding, coating adhesion and load performance
GB/T 35607-2017	Green product evaluation standard for furniture, applicable to formaldehyde emission limits for panel components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel dimensional stability and finish quality;
2. GB/T 3323-2017: General technical requirements for metal furniture, applicable to steel frame welding, coating adhesion and load performance;
3. GB/T 35607-2017: Green product evaluation standard for furniture, applicable to formaldehyde emission limits for panel components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFW-3P-3600-LGR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFW-3P-3600-LGR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFW-3P-3600-LGROpen Export Tool

Quick Actions

Post an RFQ

Product Description

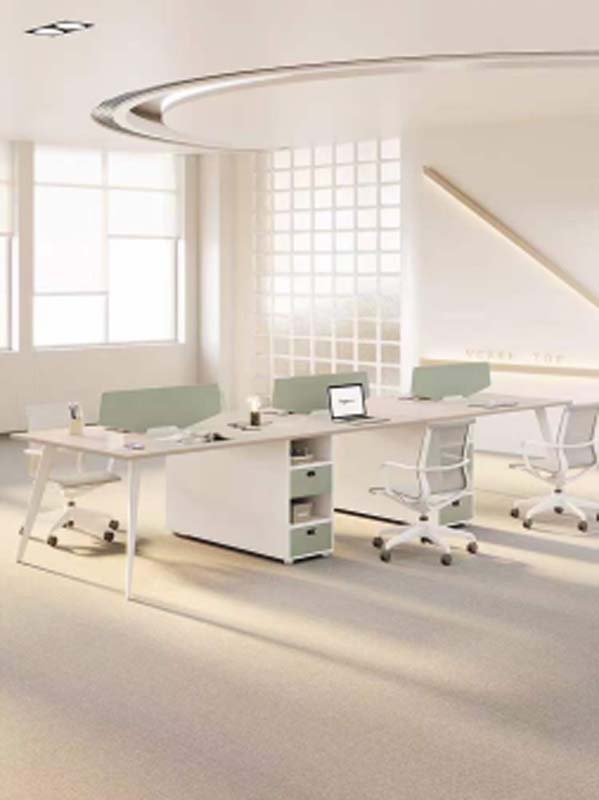

The Three-Person Linear Open Office Workstation with Movable Drawer Pedestals (model OFW-3P-3600-LGR) is an unbranded multi-person office workstation built for flexible, modern collaborative work environments. It features a clean, minimalist straight three-seat layout with a light neutral color palette, framed by low-profile fabric privacy screens between adjacent seats. These dividers reduce direct eye contact to support individual focus without blocking overhead light, preserving the open, airy feel of open-plan spaces. The unit includes three dedicated work positions, each with clear knee clearance sized for comfortable extended use, and pairs with height-adjustable office chairs tailored to match the work surface height for ergonomic seating.
The workstation is constructed for durable daily use, with melamine-faced chipboard worktops finished with PVC edge banding, supported by powder-coated white steel rectangular tube legs. Privacy screens use an MDF substrate wrapped in abrasion-resistant fabric, while the included wheeled drawer pedestals are built from melamine-faced particleboard with thermoplastic edging, mounted on black polyurethane swivel casters. Each pedestal runs on three-section full-extension cold-rolled steel drawer slides, and the paired office chairs feature breathable grey mesh support on white polypropylene frames, set atop glass fiber reinforced nylon five-star bases.
Practical functional details support seamless daily operation: integrated recessed cable grommets at each position route power and data cables to an under-surface cable tray, keeping work surfaces free of cord clutter. Each movable pedestal holds two lockable drawers, and can be repositioned under any work position or rearranged entirely to adapt to shifting team layouts, with no fixed mounting required. The included office chairs use Class 3 gas lifts for height adjustment, and 360-degree swivel casters that move smoothly across carpeted office floors.
This workstation is well suited for open-plan corporate offices to maximize space utilization in team zones, co-working and shared offices that require fast layout adjustments, startup and creative agency spaces that prioritize bright, modern collaborative environments, and temporary training or project offices that benefit from quick deployment and relocation. When planning procurement, note that units ship in knocked-down packaging with separate cartons for main tops, returns and pedestals, with a documented assembly time per set for on-site setup. The freestanding design allows teams to scale installations incrementally, and the durable caster and drawer hardware supports frequent reconfiguration for evolving work needs. Each work surface supports a rated static load for standard office equipment, and the fabric privacy screens hold up to regular contact from daily use.

Three-Person Linear Open Office Workstation with Movable Drawer Pedestals Specifications
