PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 1600 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop distributed static load	80 kg
Lockable drawer load	15 kg
Open shelf per-level load	20 kg
Lower cabinet compartment load	30 kg
Privacy screen panel load	5 kg
Product net weight	95 kg
Recommended user capacity	1 person
Leveling adjustment	10 mm
Warranty duration	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop and door finish	Wood-grain melamine-faced composite board with PVC edge banding
End and modesty panels	Light gray panel with rounded exposed edges and smooth matte surface
Storage cabinet core	18 mm composite-board carcass with vertical dividers and horizontal shelf boards
Support and screen hardware	Steel uprights, clamp bar and screw-on leveling feet with black polymer pads
Privacy screen	Frosted white translucent acrylic or glass-reinforced plastic panel in a metal clamp
Locks and handles	Brushed silver lock cylinders with black escutcheons and recessed dark pulls

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work layout	Continuous main desktop and right-hand return provide separate computing, writing and reference zones
Integrated storage	The return combines open shelves, one top drawer and one lower lockable door for mixed filing access
Locking configuration	Two visible locks secure the top drawer and lower cabinet door for personal document storage
Visual privacy and cable management	Clamp-mounted rear screen shields the monitor area while the desktop grommet routes laptop or power cables

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive or supervisor office	Provides one-person computer work space plus immediate filing storage for managers and administrative staff
Open-plan focused workstation	The rear screen and long storage return suit team offices requiring visual separation without a full cubicle

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety and strength	EN 16139
Surface wear resistance	EN 14322
Formaldehyde panel classification	EN 13986 E1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission recommendation	GB/T 39600 E1
Panel furniture mechanical acceptance	GB/T 3324
Fire safety recommendation	GB 20286

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission recommendation: GB/T 39600 E1;
2. Panel furniture mechanical acceptance: GB/T 3324;
3. Fire safety recommendation: GB 20286;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FD-LS-180160-WS

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FD-LS-180160-WS

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FD-LS-180160-WSOpen Export Tool

Quick Actions

Post an RFQ

Product Description

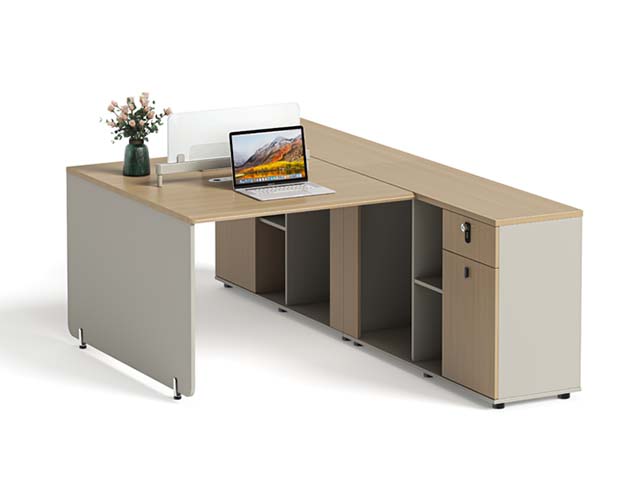

The L-Shaped Executive Workstation with Integrated Storage Cabinet is a single-user desk solution designed for managers, supervisors, administrative staff, and focused open-plan work. Its continuous main desktop and right-hand return create distinct zones for computing, writing, and reference materials, while the integrated cabinet keeps files and personal items within reach. The workstation has a composed professional appearance, pairing wood-grain melamine work surfaces with light gray lacquered or melamine panels. Rounded exposed edges, a smooth matte finish, black support details, brushed silver locks, and recessed dark pulls give the layout a refined, understated executive look. Construction combines composite-board case goods with steel support components. The desktop and storage doors use wood-grain melamine-faced composite board with PVC edge banding, while end and modesty panels use light gray paneling. The storage cabinet is built with an 18 mm composite-board carcass, vertical dividers, and horizontal shelf boards. Steel uprights, a clamp bar, and screw-on leveling feet with black polymer pads support the desk and help accommodate uneven floors. A 50 mm finished top, substantial steel support section, and 95 kg net weight reinforce its substantial, furniture-style presence. The return integrates open shelves, a top drawer, and a lower cabinet with a lockable door. Two visible locks secure the drawer and lower compartment, supporting controlled storage for documents or personal belongings. The open shelves provide quick access to reference materials, while the drawer and enclosed cabinet suit items that prefer concealment or restricted access. Rated storage capacities are 15 kg for the lockable drawer, 20 kg per open shelf level, and 30 kg for the lower cabinet compartment. The desktop is rated for an 80 kg distributed static load, and the rear privacy screen panel is rated for 5 kg. A clamp-mounted frosted white translucent acrylic or glass-reinforced plastic screen sits at the rear in a metal clamp, shielding the monitor area and adding visual separation without forming a full cubicle. Cable management is handled through an 80 mm desktop opening, with a cable tray depth of 120 mm for routing laptop, monitor, and power cables. The main seating position offers 680 mm of knee clearance height and 900 mm of width. This workstation is well suited to executive offices, supervisor rooms, private administrative workspaces, and open-plan areas that need a focused one-person station. Procurement teams should plan for a substantial furniture delivery, confirm site access and floor-protection requirements, allow installation time, and verify that storage and privacy-screen load ratings match the intended use.

L-Shaped Executive Workstation with Integrated Storage Cabinet Specifications
