PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1200 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	2 persons
Distributed desktop static load	120 kg
Per-person desktop load	60 kg
Pedestal top load	40 kg
Drawer load capacity	15 kg
Lower cabinet shelf load	25 kg
Suggested product net weight	95 kg
Leveling adjustment	10 mm
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-composite substrate with white melamine or laminate facing and sealed edges
Edge banding	2 mm PVC or ABS edge banding with matching white finish
Divider panel	32 mm grey fabric-faced or melamine-faced acoustic/partition panel
Divider rail and posts	White powder-coated steel horizontal rail with 25 mm diameter support posts
Desk legs	50 x 50 mm white powder-coated square steel tube with black non-marking feet
Pedestal construction	White and grey laminated composite panels with black recessed lock inserts

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Two users work face-to-wall in a side-by-side bench layout separated by a continuous low divider
Storage arrangement	Each user has one shallow lockable top drawer and one lower enclosed cabinet with an adjacent open CPU bay
Computer placement	Open under-desk shelf accepts a vertical mid-tower CPU with front access and floor clearance
Divider function	Rigid desktop-mounted screen provides visual separation while retaining conversation height over the panel

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	Suits two adjacent staff positions where shared support, individual storage, and low visual privacy are required
Procurement configuration	Use in pairs or rows for 4-, 6-, or 8-person bench clusters while maintaining individual CPU bays and lockable drawers

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk safety and dimensions	Use for fixed office work-surface height, strength, and dimensional acceptance
EN 527-2 office desk mechanical safety	Use for strength, durability, and stability test requirements
EN 14073-2 storage safety requirements	Use for the integrated drawer and cabinet storage units
EN 14073-3 storage stability and strength	Use for cabinet stability and loaded shelf verification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 Desk Products	Use for desktop load, fatigue, leg strength, and stability acceptance
ANSI/BIFMA X5.9 Storage Units	Use for drawer, shelf, lock, and pedestal structural verification
ANSI/BIFMA e3 sustainability credits	Use as an optional environmental procurement criterion for materials and low-emission panels

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural quality	Apply to wooden office furniture dimensions, workmanship, and stability checks
GB/T 3325 metal furniture requirements	Apply to steel legs, divider supports, coating quality, and load-bearing metal parts
GB/T 10357.5 desk strength test	Use for table strength and durability acceptance on the work-surface assembly
GB 18584 indoor furniture emission limit	Use for formaldehyde emission acceptance of wood-based panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural quality: Apply to wooden office furniture dimensions, workmanship, and stability checks;
2. GB/T 3325 metal furniture requirements: Apply to steel legs, divider supports, coating quality, and load-bearing metal parts;
3. GB/T 10357.5 desk strength test: Use for table strength and durability acceptance on the work-surface assembly;
4. GB 18584 indoor furniture emission limit: Use for formaldehyde emission acceptance of wood-based panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS2-WHT-PED-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS2-WHT-PED-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS2-WHT-PED-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

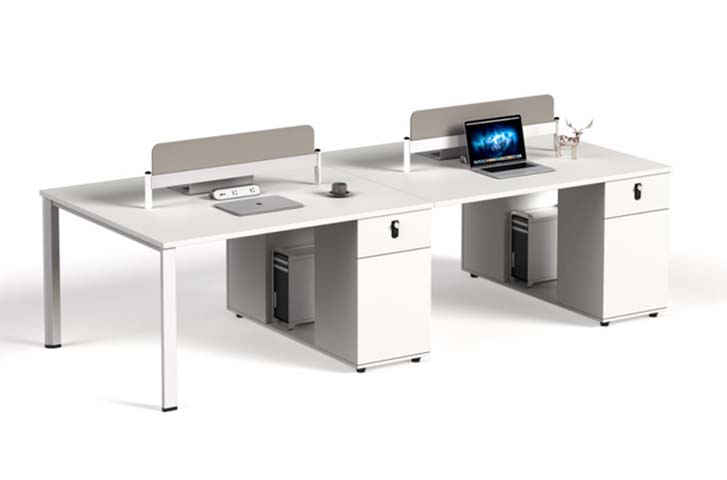

The Two-Person Panel-Based Office Workstation, model WS2-WHT-PED-2800, is an unbranded office desk system designed for two users in a clean, modern bench configuration. Its white work surfaces, grey divider panels, and white powder-coated steel supports create a structured appearance suited to organized open-plan environments. Users sit side by side in a face-to-wall arrangement, separated by a continuous low desktop-mounted divider. The rigid panel gives each position visual separation without forming a tall enclosure, preserving conversation height over the top and maintaining a connected team layout. The work surface uses a 25 mm wood-composite substrate with white melamine or laminate facing and sealed edges. A matching white 2 mm PVC or ABS edge band protects the perimeter, while the finished top thickness is 50 mm. Divider panels are 32 mm grey acoustic or partition panels faced in fabric or melamine, held by a white powder-coated steel horizontal rail and 25 mm support posts. The desk rests on 50 by 50 mm white powder-coated square steel tube legs with black non-marking feet. Main leg sections measure 80 mm with 2 mm metal wall thickness. Integrated pedestals are constructed from white and grey laminated composite panels with black recessed lock inserts, combining steel-and-wood storage support with the workstation frame. Each user receives a shallow lockable top drawer and a lower enclosed cabinet, with an adjacent open CPU bay. The under-desk shelf supports a vertical mid-tower CPU with front access and floor clearance. An 80 mm diameter cable opening and a 120 mm deep cable tray help manage computer and power cabling at each position. The workstation provides 680 mm high and 900 mm wide effective knee clearance per main seat. Rated capacity is 60 kg of distributed desktop load per person, 120 kg across the desktop, 40 kg on the pedestal top, 15 kg per drawer, and 25 kg on the lower cabinet shelf. This model is appropriate for open-plan offices that need two adjacent staff positions with shared structural support, individual lockable storage, CPU access, and low visual privacy. Multiple workstations can be procured in pairs or rows to form four-, six-, or eight-person bench clusters while retaining separate drawers and CPU bays. Planning should account for a 95 kg product net weight, assembly time of 40 minutes per set, and shipping details listing two cartons per set, with alternative logistics information showing four cartons, 180 kg packaged gross weight, and one cubic meter packaging volume. The main top pack measures 2500 by 1050 by 350 mm, with the return and pedestal packed separately.

Two-Person Panel-Based Office Workstation with Integrated Pedestals Specifications
