Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2100 × 850 × 820 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended seating capacity | 5 persons | |
|---|---|---|
| Sofa distributed static load | 360 kg | |
| Single armchair static load | 150 kg | |
| Sofa net weight | 68 kg | |
| Coffee table top distributed load | 40 kg | |
| Cushion foam density | 35 kg/m3 | |
| Back foam density | 28 kg/m3 | |
| Seat compression resistance | 3.8 kPa | |
| Back rebound value | 35 percent | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Visible upholstery | Terracotta seating faces and dark brown outer shells in smooth leather or leather-look upholstery | |
|---|---|---|
| Cushion construction | Fixed high-resilience polyurethane foam pad wrapped in upholstery with visible seat seam divisions | |
| Internal support frame | Hardwood or engineered-wood seat frame with steel corner reinforcement | |
| Legs and feet | Four slim polished chrome-finish metal legs per seating unit with protective floor contacts | |
| Outer back shell | Padded dark brown upholstered panel formed around a curved tub frame | |
| Table surfaces | Clear glass top, dark lower shelf and polished chrome tubular frame |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

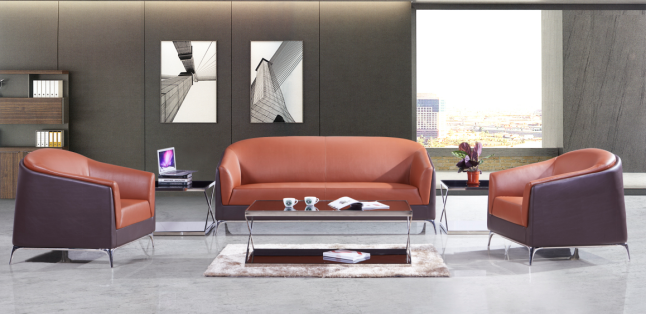

| Seating configuration | One three-seat sofa and two matching tub armchairs form a face-to-face visitor arrangement | |
|---|---|---|
| Back and arm support | Continuous curved arms extend into the backrest, providing lateral and upper-back support | |
| Cushion function | Fixed seat pads deliver semi-upright lounge posture and eliminate loose-cushion movement | |
| Table function | Central glass coffee table and two side tables provide beverage, magazine and laptop placement surfaces |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total gross weight | 165 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate reception and executive lounge | Five-person layout supports visitors waiting, short meetings and hosted beverages in an office lobby. | |
|---|---|---|
| Executive meeting or guest seating area | Curved two-tone chairs and glass tables suit formal internal consultation spaces with polished hard floors. |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
