Automatic mm / inch conversion · Core engineering specifications
| Three-seat sofa overall dimensions | 1940 x 830 x 750 mm | |
|---|---|---|
| Single armchair overall dimensions | 830 x 830 x 750 mm | |
| Seat height from floor | 450 mm | |
| Metal support leg height | 150 mm | |
| Seat cushion thickness | 120 mm | |
| Backrest cushion thickness | 100 mm | |
| Angular armrest width | 120 mm | |
| Per-seat usable seat width | 600 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Total set net weight | 114 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Seat foam density | 40 kg/m³ | |
| Foam rebound rate | 45% | |
| Upholstery abrasion resistance | 50000 cycles | |
| Frame static load rating | 750 kg | |
| Standard commercial warranty | 5 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
Core acceptance fields · Panels / hardware / frame / upholstery
| External upholstery | 1.2mm thick grey PU leather, stain-resistant wipe-clean finish | |
|---|---|---|
| Internal structural frame | Kiln-dried solid hardwood, 25mm section thickness, 12% moisture content | |
| Seat support system | 3.2mm diameter S-shaped steel springs, 80mm spacing, webbing underlay | |
| Cushion padding | High-density polyurethane foam, wrapped with 20mm soft fiber batting | |
| Support legs | 20mm diameter dark powder-coated steel, welded mounting plates | |
| Stitching details | 8 stitches per inch matching grey polyester thread, reinforced seam corners | |
| Armrest structure | Padded rigid frame with PU leather wrap, angular geometric profile | |
| Back cushion filling | Dual layer foam with fiber top, fixed non-removable cover design | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
Adjustment / rotation / tilt / mobility / storage features

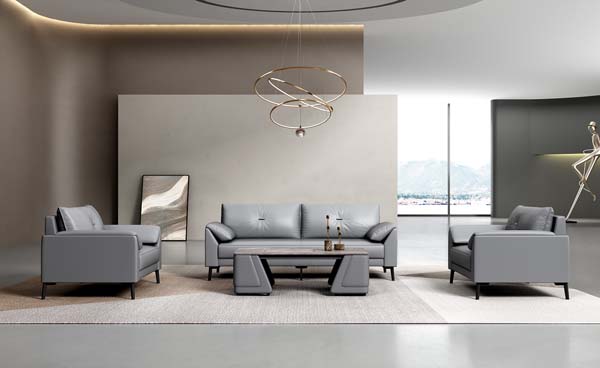

| Seating configuration | Two single armchairs plus one three-seat sofa, symmetric conversation layout | |
|---|---|---|
| Seating function | Static fixed lounge seating, no recline, swivel or height adjustment | |
| Surface maintenance | Wipe-clean PU leather surface, resistant to common office beverage stains | |
| Structural stability | Four legs per seating unit with non-slip floor protection pads | |
| Accessory provision | Two matching small throw cushions included with three-seat sofa | |
| Arrangement flexibility | Individual units can be repositioned to suit different reception space layouts | |
| Floor protection | 10mm thick plastic glides on leg bases to prevent hard floor scratching | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Single armchair carton dimensions | 810 x 840 x 760 mm | |
|---|---|---|
| Three-seat sofa carton dimensions | 1790 x 840 x 760 mm | |
| Total set gross weight | 120 kg | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
| Office reception areas | Formal visitor waiting spaces with professional minimalist aesthetic | |
|---|---|---|
| Corporate lounge spaces | Informal employee break or casual meeting zones with durable commercial construction | |
| Public waiting rooms | High-traffic service areas including banks, clinics and government service halls | |
| Executive office spaces | Complementary seating for private executive offices for guest meetings | |
| Hotel lobby waiting areas | Modern hotel public areas with consistent grey neutral color palette | |
| Recommended matching furniture | Low rectangular coffee table of 1200 x 600 x 450mm placed centrally between seats |
EU Market Access Requirements* EN Standards
| EN 13759:2010 | Applicable to domestic and contract seating furniture safety requirements | |
|---|---|---|
| EN 1021-1:2014 | Applicable to upholstered furniture ignition resistance from smouldering cigarettes |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable to wooden frame general technical furniture requirements for reception sofas | |
|---|---|---|
| GB/T 16799-2008 | Applicable to PU leather upholstery material performance and testing requirements | |
| GB 18584-2001 | Applicable to indoor furniture formaldehyde emission limit for interior use | |
| GB/T 10357.3-2013 | Applicable to seating furniture strength and durability test methods for sofas |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable to wooden frame general technical furniture requirements for reception sofas; 2. GB/T 16799-2008: Applicable to PU leather upholstery material performance and testing requirements; 3. GB 18584-2001: Applicable to indoor furniture formaldehyde emission limit for interior use; 4. GB/T 10357.3-2013: Applicable to seating furniture strength and durability test methods for sofas; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
