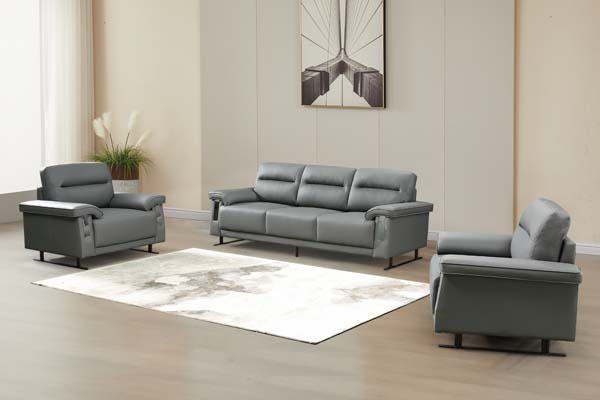

Product supplier3-Piece Gray Manual Recliner Sofa Set, 1.2 mm thick gray PU faux leather, smooth matte finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2820 × 1020 × 990 mm | |
|---|---|---|
| Overall 3-seater sofa dimensions | 2820 x 1020 x 990 mm | |
| Seat height from floor | 480 mm | |
| Seat depth per position | 580 mm | |
| Seat width per 3-seater position | 750 mm | |
| Single chair seat width | 580 mm | |
| Armrest height from floor | 630 mm | |
| Leg height (floor clearance) | 120 mm | |
| Backrest cushion thickness | 180 mm | |
| Seat cushion thickness | 220 mm | |
| Armrest width | 180 mm | |
| Back Cushion Thickness | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended per-seat weight capacity | 136 kg | |
|---|---|---|
| Total set net weight | 200 kg | |
| Seat cushion foam density | 45 kg/m³ | |
| Foam rebound rate | 60% | |
| Backrest maximum recline angle | 160° | |
| Upholstery abrasion resistance (Martindale) | 25000 cycles | |
| Frame static load capacity | 450 kg per seat unit | |
| Recliner mechanism cycle durability | 15000 cycles | |
| Minimum floor clearance for cleaning | 80 mm | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery | 1.2 mm thick gray PU faux leather, smooth matte finish | |
|---|---|---|
| Internal load-bearing frame | 25 mm thick kiln-dried solid wood + 18 mm plywood with steel reinforcing brackets | |
| Seat cushion core | 45 kg/m³ high-density polyurethane foam wrapped in 20 mm soft polyester fiber | |
| Backrest cushion core | 35 kg/m³ high-density polyurethane foam with integrated headrest padding | |
| Support legs | 1.5 mm wall thickness black powder-coated steel sled-style legs | |
| Recliner mechanism hardware | 2.0 mm thick stamped steel hinge and rail assembly, black oxide finish | |
| Armrest internal structure | Plywood frame wrapped in high-density foam and matching upholstery | |
| Seam construction | 10 stitches per 80 mm reinforced polyester stitching | |
| Floor glides | 25 mm diameter non-marking black plastic glides affixed to leg bases | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Manual recline operation | Armrest-mounted lever actuates back recline and integrated footrest extension | |
|---|---|---|
| Recline position locking | Infinite position lock between 90° upright and 160° fully reclined | |
| Footrest actuation | Lever pull extends footrest to horizontal position, heel pressure retracts and locks | |
| 3-piece modular arrangement | Configurations include U-shape conversational layout for living room spaces | |
| Cleaning and maintenance | Surface wipe-clean with damp soft cloth, avoid abrasive cleaners and prolonged direct sunlight | |
| Assembly requirement | Back units slide onto pre-assembled base frames with included hardware | |
| Floor protection | Non-marking glides prevent scuffs on hardwood, tile, and vinyl flooring | |
| Weight distribution | Sled leg base distributes weight evenly to prevent indentation on soft carpets | |
| Overall single recliner armchair dimensions | 1040 x 1020 x 990 mm | |
| Fully reclined overall depth (per unit) | 1700 mm | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room primary seating | U-configuration supports 5-person conversational seating for family and guest use | |
|---|---|---|
| Apartment open-plan lounge areas | Low-profile metal legs and neutral gray finish complement contemporary interior schemes | |
| Hotel guest room lounge zones | Durable faux leather upholstery withstands high-traffic commercial hospitality use | |
| Home theater media rooms | Manual recline function allows relaxed viewing positions for media consumption | |
| Executive office reception areas | Formal gray upholstery presents professional appearance for visitor seating | |
| Small meeting lounge spaces | Modular 3-piece set fits compact conversational layouts in office break areas |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Applicable for strength, durability and safety of residential seating furniture | |
|---|---|---|
| EN 1021-1:2014 | Applicable for upholstered furniture cigarette ignition resistance | |
| EN 1021-2:2014 | Applicable for upholstered furniture match flame ignition resistance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable as general technical standard for wooden frame upholstered furniture | |
|---|---|---|
| GB 20400-2006 | Applicable for leather/faux leather upholstery harmful substance limits | |
| GB/T 1952.1-2012 | Applicable as durability and safety standard for upholstered sofas | |
| GB 18584-2001 | Applicable for indoor furniture formaldehyde emission limits |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable as general technical standard for wooden frame upholstered furniture; 2. GB 20400-2006: Applicable for leather/faux leather upholstery harmful substance limits; 3. GB/T 1952.1-2012: Applicable as durability and safety standard for upholstered sofas; 4. GB 18584-2001: Applicable for indoor furniture formaldehyde emission limits; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
