Automatic mm / inch conversion · Core engineering specifications

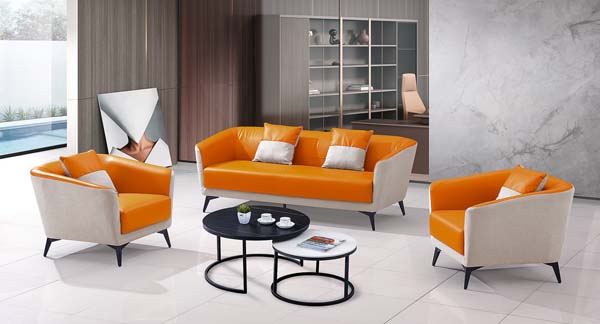

| Overall 3-seater sofa dimensions | 2200 x 850 x 820 mm | |
|---|---|---|
| Single armchair dimensions | 880 x 780 x 820 mm | |
| Seat height from floor | 430 mm | |
| Seat depth (usable cushion depth) | 600 mm | |
| Armrest height from seat surface | 200 mm | |
| Backrest total height from seat | 390 mm | |
| Large round nesting coffee table dimensions | 800 x 800 x 450 mm | |
| Small round nesting coffee table dimensions | 600 x 600 x 420 mm | |
| Furniture leg height | 150 mm | |
| Floor clearance under sofa base | 120 mm | |
| Throw pillow dimensions (square) | 450 x 450 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Total set shipping weight range | 190 kg | |
|---|---|---|
| 3-seater sofa maximum static load capacity | 450 kg | |
| Cushion foam indentation load deflection | 35 kg/m3 | |
| Recommended total seating capacity | 5 persons | |
| Recommended commercial grade upholstery abrasion resistance | 50000 double rubs | |
| Total set gross shipping weight | 220 kg | |
| Seat cushion foam density | 35 kg/m3 | |
| Total rated seating capacity | 5 persons | |
| Upholstery abrasion resistance rating | 50000 double rubs | |
| Seam stitch pitch | 8 stitches per 30mm |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat, inner back and inner arm upholstery | Smooth orange faux leather (PU) | |
|---|---|---|
| Outer back, outer arm and side panels | Matte light gray woven fabric or technical leather | |
| Cushion core material | High-density polyurethane foam | |
| Sofa support legs | 1.2mm thick black powder-coated carbon steel, angled tapered design | |
| Coffee table frame material | 1.5mm thick black powder-coated carbon steel tubing, ring base design | |
| Large coffee table top | Black matte textured laminate or sintered stone, 12mm thickness | |
| Small coffee table top | White matte sintered stone or laminate, 12mm thickness | |
| Included throw pillows | 2-tone matching fabric (orange and light gray) covers, filled with 3D hollow polyester fiber | |
| Internal seating frame | 25mm x 25mm solid hardwood and plywood frame with metal corner bracing | |
| Seat surface, inner back and inner arm upholstery | 1.0mm thick orange PU faux leather, wipe-clean smooth finish, stitched seam construction | |
| Outer back, outer arm and side panel upholstery | 0.8mm thick light gray matte woven technical fabric, tight tailored upholstery | |
| Seat cushion core | 35kg/m3 high-density polyurethane foam, wrapped with 20mm thick soft polyester fiber batting |
Adjustment / rotation / tilt / mobility / storage features
| Nesting coffee table configuration | Small table slides partially under the large table to adjust surface layout or save floor space when not in full use | |
|---|---|---|
| Fixed upholstered cushion design | All seat and back cushions are integrated into the sofa frame to prevent shifting during frequent use in high-traffic reception areas | |
| Integrated armrest support | Fully wrapped armrests run the full depth of each seat to provide consistent forearm support for users in any seating position | |
| Elevated leg design | Angled metal legs raise the sofa base 120mm above the floor to allow access for cleaning equipment and prevent dust accumulation under seating | |
| Matching throw pillow support | All seating units include pre-placed two-tone decorative pillows to add lumbar support and visual accent without additional accessory purchase | |
| Modular set arrangement flexibility | Seating units can be arranged in linear, U-shape, or separated cluster configurations to fit different reception room floor plans | |
| Nesting table space adjustment | The smaller 600mm table slides fully under the larger 800mm table to reduce occupied floor space by 30% when additional surface area is not required, or pulls out for extra serving space during peak visitor times | |
| Fixed integrated cushion design | All seat and back cushions are permanently bonded to the seating frame to prevent shifting, gap formation, or misalignment during high-frequency daily use in public spaces | |
| Full-wrap armrest support | Upholstered armrests run the full 600mm depth of each seat to provide consistent forearm support for users seated in any position along the seat surface | |
| Cleaning access clearance | The 120mm elevated leg design provides unobstructed floor clearance under all seating units to allow access for vacuum cleaners, robot mops, and routine floor maintenance without moving furniture | |
| Modular layout flexibility | All 3 seating units are freestanding with no permanent connecting hardware, allowing arrangement in linear, U-shaped, or dispersed cluster configurations to fit reception areas from 12sqm to 30sqm | |
| Included lumbar support pillows | Each seating unit is supplied with pre-sized 450x450mm accent pillows that provide additional lumbar support for users, requiring no separate accessory procurement |
Verified carton / gross weight / assembly / loading data
| Total shipping carton count | 7 cartons | |
|---|---|---|
| Largest individual carton dimensions (3-seater sofa) | 2250 x 900 x 650 mm | |
| Armchair carton dimensions | 920 x 820 x 650 mm | |
| Coffee table carton dimensions | 850 x 850 x 120 mm (large), 650 x 650 x 120 mm (small) | |
| Total gross shipping weight | 220 kg | |
| Total shipping volume (CBM) | 2.3 cbm | |
| Required assembly time (2 persons) | 60 minutes | |
| 40HQ container loading quantity | 52 sets | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Recommended spaces / users / usage modes
| Corporate office reception and lobby areas | Professional two-tone modern design projects a polished corporate image, while durable easy-clean upholstery holds up to high visitor traffic | |
|---|---|---|
| Executive office lounge and meeting breakout zones | Low-profile compact dimensions and comfortable seating support informal small group meetings or break time relaxation without occupying excess floor space | |
| Boutique hotel lobby guest waiting areas | High-contrast color scheme and coordinating nested tables provide a stylish contemporary aesthetic for upscale hospitality environments | |
| High-end residential open-plan living rooms | Matching set and flexible table arrangement suits modern home design, with durable construction suitable for daily family use | |
| Studio and co-working space common areas | Modular arrangement flexibility allows reconfiguration for events, casual work, or guest waiting, with stain-resistant surfaces for shared public use | |
| Executive office breakout and informal meeting zones | Compact low-profile dimensions and comfortable padding support small 5person informal discussions or short break periods without occupying excessive floor space | |
| Boutique hotel lobby waiting areas | High-contrast contemporary color scheme and coordinated nesting tables provide a stylish upscale aesthetic for guest waiting and check-in queue seating | |
| Co-working space common areas | Modular arrangement flexibility allows reconfiguration for events, casual work sessions or guest waiting, with stain-resistant surfaces suitable for shared public use |
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Applicable standard for domestic and contract seating furniture, specifies strength, durability, and stability requirements for sofa products used in public reception areas | |
|---|---|---|
| EN 1022:2018 | Applicable standard for seating stability testing, verifies resistance to tipping during normal seated use and shifting weight | |
| EN 13759:2003 | Applicable standard for table furniture for domestic and contract use, covers stability and load requirements for the included nesting coffee tables | |
| EN 15372:2016 | Contract furniture durability standard for tables, covers static load, impact resistance and stability requirements for nesting coffee tables |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB 18584-2001 | Applicable indoor furniture environmental standard, sets limits for formaldehyde release and heavy metal content in wooden and upholstered furniture components | |
|---|---|---|
| GB/T 3324-2017 | Applicable general technical standard for wooden furniture, applies to the internal wooden frame structural requirements for seating units | |
| GB/T 16799-2008 | Standard for polyurethane (PU) leather used in furniture, specifies abrasion resistance, color fastness and tear strength requirements for contact upholstery surfaces |
This product must meet the following technical requirements: 1. GB 18584-2001: Applicable indoor furniture environmental standard, sets limits for formaldehyde release and heavy metal content in wooden and upholstered furniture components; 2. GB/T 3324-2017: Applicable general technical standard for wooden furniture, applies to the internal wooden frame structural requirements for seating units; 3. GB/T 16799-2008: Standard for polyurethane (PU) leather used in furniture, specifies abrasion resistance, color fastness and tear strength requirements for contact upholstery surfaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
