Automatic mm / inch conversion · Core engineering specifications
| Overall set arrangement footprint | 3200 x 2800 x 840 mm | |
|---|---|---|
| Three-seat sofa overall dimensions | 1940 x 830 x 840 mm | |
| Single armchair overall dimensions (per unit) | 830 x 830 x 840 mm | |
| Seat height from floor | 450 mm | |
| Seat depth (usable cushion depth) | 550 mm | |
| Backrest height (above seat surface) | 390 mm | |
| Rolled armrest height from floor | 620 mm | |
| Armrest width | 120 mm | |
| Coffee table overall dimensions | 1300 x 700 x 450 mm | |
| Coffee table base clearance from floor | 100 mm | |
| Sofa leg height | 150 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Set total net weight | 210 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Total set maximum static load | 750 kg | |
| Cushion foam density | 45 kg/m³ | |
| Cushion foam rebound rate | 60% | |
| Surface abrasion resistance (Martindale) | 50000 cycles | |
| Seam stitch pitch | 8 stitches per 30 mm | |
| Frame durability rating | 6000 hours of continuous use | |
| Standard warranty period | 6 years | |
| Available upholstery color options | 2 (taupe brown, matte black) |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seating upholstery | 1.2mm thick PU leather with scratch-resistant, water-repellent surface finish | |
|---|---|---|
| Internal seating frame | kiln-dried solid hardwood, polished and insect-treated | |
| Seat cushion support system | 2.4mm diameter manganese steel coil springs with balanced webbing support | |
| Seat cushion fill | high-density polyurethane foam with 20mm soft PP cotton top layer | |
| Backrest fill | 38 kg/m³ density polyurethane foam with integrated lumbar support padding | |
| Sofa legs | powder-coated dark carbon steel, 30mm diameter with non-slip floor protection glides | |
| Armrest trim details | chrome-finished metal decorative accents at rolled arm junctions | |
| Coffee table top | 18mm thick wood-veneer laminated panel with matte scratch-resistant finish | |
| Coffee table base | solid engineered wood block with vertical brushed metal inlay details | |
| Protective floor glides | high-density polyethylene glides fitted to all leg bases | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide |
Adjustment / rotation / tilt / mobility / storage features

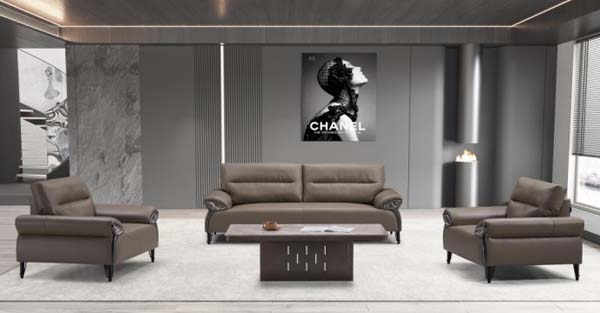

| Seating configuration | fixed symmetrical layout: 1 three-seat sofa + 2 single armchairs oriented to central coffee table | |
|---|---|---|
| Coffee table function | low-profile central surface for holding drinkware, reading materials, and reception accessories | |
| Cushion performance | non-removable fixed seat and back cushions with reinforced edge support to prevent sagging | |
| Cleaning compatibility | smooth non-porous upholstery surface supports wipe-down cleaning with mild detergent | |
| Assembly requirement | knock-down leg and table base assembly required, with all hardware included in packaging | |
| Floor protection function | all leg bases fitted with non-marking glides to prevent hard floor scratching | |
| Weight distribution | multi-leg frame design evenly distributes load across contact points to reduce floor indentation | |
| Back support design | contoured segmented backrests provide built-in lumbar support for upright seated waiting postures | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
| Corporate lobby reception areas | Provides formal visitor seating with central table for guest check-in and waiting, matching business office aesthetics | |
|---|---|---|
| Executive office meeting zones | Supports small informal meetings and guest receiving adjacent to executive workspaces | |
| Public institution waiting rooms | Durable easy-clean surface suitable for high-traffic visitor areas in government or service offices | |
| Business lounge spaces | Appropriate for premium lounges in commercial buildings, hotels, or serviced offices | |
| Customer consultation areas | Symmetrical face-to-face layout supports comfortable conversations between staff and clients | |
| Recommended matching decor | Neutral toned wall finishes, low-pile commercial carpet, linear ambient lighting to complement minimalist design | |
| Minimum required placement space | 3600 x 3200 mm clear floor area to accommodate full set with walkway clearance around seating |
EU Market Access Requirements* EN Standards
| EN 13761:2008 | Office furniture - Visitor seating, performance and safety requirements for reception chairs | |
|---|---|---|
| EN 15372:2016 | Furniture - Strength, durability and safety requirements for non-domestic seating | |
| EN 12521:2015 | Furniture - Strength, durability and safety requirements for domestic and non-domestic tables |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2022 | Public and lounge seating performance standard, applicable for commercial reception use | |
|---|---|---|
| ANSI/BIFMA X6.1-2020 | Occasional tables performance standard, applicable for the matching coffee table |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to the coffee table wood components | |
|---|---|---|
| GB/T 19001-2016 | Quality management system reference for commercial furniture production consistency | |
| GB 20400-2006 | Leather and faux leather material safety limit for harmful substances, applicable to upholstery |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to the coffee table wood components; 2. GB/T 19001-2016: Quality management system reference for commercial furniture production consistency; 3. GB 20400-2006: Leather and faux leather material safety limit for harmful substances, applicable to upholstery; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
