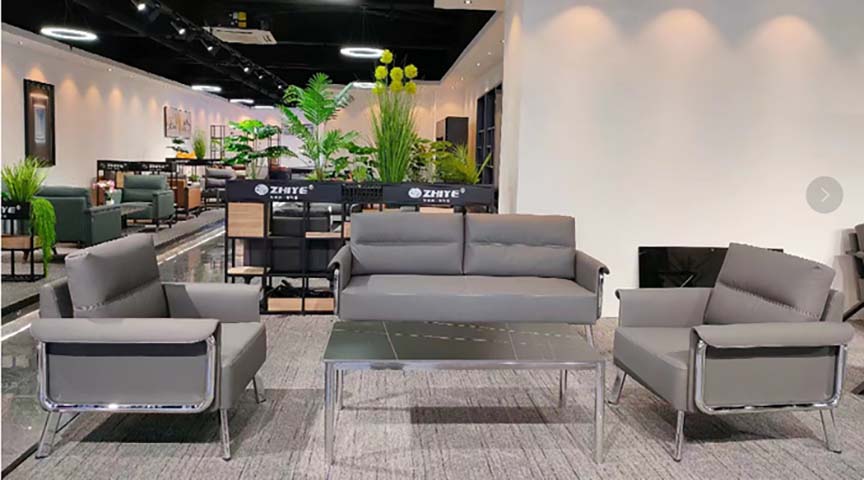

1+1+3 Configuration Grey PU Leather Chrome Frame Office Reception Sofa Set with Tempered Glass Coffee Table (model ZHYE-RCV-113C-GR) is listed under Faux Leather Sofa. Dimensions: 2000 × 780 × 810 mm. Materials: 1.2mm thick grey PU faux leather, wear-resistant finish. Load capacity: 160 kg. Product Features: modern,commercial,style,fixed,seating,chrome,metal,construction,faux,leather,upholstery. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | WEIKE | Model | ZHYE-RCV-113C-GR |
| Overall dimensions (W × D × H) | 2000 × 780 × 810 mm | Seat height from floor | 420 mm |
| Seat depth (usable) | 580 mm | Seat cushion thickness | 120 mm |
| Backrest height above seat | 390 mm | Armrest height above floor | 630 mm |
| Coffee table glass top thickness | 10 mm | Chrome frame tube diameter (arm/leg) | 50 mm |
| Overall set footprint (arranged for conversation) | 3200 x 2500 mm | Leg base spread (per single chair) | 720 mm |
| Back Cushion Thickness | 160 mm | Leg Height / Floor Clearance | 160 mm |
| Total set weight (all pieces) | 185 kg | Per-seat static load capacity | 160 kg |
| Total seating capacity | 5 persons | Upholstery abrasion resistance | 50000 rub cycles |
| Cushion foam density | 45 kg/m³ | Foam rebound rate | 60% |
| Tempered glass table top static load | 80 kg | Seam stitch pitch | 8 stitches per inch |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
| Seat and back upholstery | 1.2mm thick grey PU faux leather, wear-resistant finish | Cushion core fill | Molded high-density PU foam, anti-oxidation treated |
| Backrest fill | Medium-density PU foam over resilient webbing support | Internal structural frame | Kiln-dried hardwood (≤9% moisture) with 5mm plywood reinforcement, anti-corrosion treated |
| Armrest and leg frame | Polished chrome-plated steel tubing, 1.2mm wall thickness | Seat support system | 50mm wide elastic webbing spaced 80mm apart under seat foam |
| Coffee table top | 10mm thick dark tempered safety glass, polished edges | Coffee table frame | Matching polished chrome-plated square steel tubing, welded corner joints |
| Foot glides | Non-marking plastic floor glides fitted to all leg bases | Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
| Seating configuration | Fixed static 1+1+3 layout with central facing table for conversation | Assembly requirement | Knock-down flat pack assembly with bolted frame connections |
| Seat function | Fixed non-reclining, non-tilting seat and back for short-duration guest waiting | Surface maintenance | Smooth non-porous PU upholstery allows wipe-cleaning with standard disinfectants |
| Floor protection | Integrated non-marking glides prevent scuffing on carpet, tile, or wood floors | Color customization | Standard grey finish with optional custom upholstery colors available on request |
| Frame finish performance | Chrome-plated frame finish resists rust and scuffing for high-traffic public reception use | Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | Reference Packaging Volume | 1.8 m³/item |
| Reference Packaged Gross Weight | 110 kg/item | Office reception lobbies | Suitable for guest waiting areas with conversational seating layout for short visits |
| Corporate meeting waiting areas | Provides formal, durable seating for visitors pre-meeting in commercial office spaces | Small business visitor areas | Space-efficient 1+1+3 layout fits compact entryways and small reception zones |
| Co-working space lounge zones | Durable wipe-clean upholstery supports frequent use by rotating visitors and members | Public service waiting areas | Heavy-duty commercial construction withstands high daily traffic in government or service offices |
| Recommended maintenance | Wipe upholstery weekly and inspect frame bolts quarterly for longest service life | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2000 × 780 × 810 mm | |
|---|---|---|
| Seat height from floor | 420 mm | |
| Seat depth (usable) | 580 mm | |
| Seat cushion thickness | 120 mm | |
| Backrest height above seat | 390 mm | |
| Armrest height above floor | 630 mm | |
| Coffee table glass top thickness | 10 mm | |
| Chrome frame tube diameter (arm/leg) | 50 mm | |
| Overall set footprint (arranged for conversation) | 3200 x 2500 mm | |
| Leg base spread (per single chair) | 720 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set weight (all pieces) | 185 kg | |
|---|---|---|
| Per-seat static load capacity | 160 kg | |
| Total seating capacity | 5 persons | |
| Upholstery abrasion resistance | 50000 rub cycles | |
| Cushion foam density | 45 kg/m³ | |
| Foam rebound rate | 60% | |
| Tempered glass table top static load | 80 kg | |
| Seam stitch pitch | 8 stitches per inch | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | 1.2mm thick grey PU faux leather, wear-resistant finish | |
|---|---|---|
| Cushion core fill | Molded high-density PU foam, anti-oxidation treated | |
| Backrest fill | Medium-density PU foam over resilient webbing support | |
| Internal structural frame | Kiln-dried hardwood (≤9% moisture) with 5mm plywood reinforcement, anti-corrosion treated | |
| Armrest and leg frame | Polished chrome-plated steel tubing, 1.2mm wall thickness | |
| Seat support system | 50mm wide elastic webbing spaced 80mm apart under seat foam | |
| Coffee table top | 10mm thick dark tempered safety glass, polished edges | |
| Coffee table frame | Matching polished chrome-plated square steel tubing, welded corner joints | |
| Foot glides | Non-marking plastic floor glides fitted to all leg bases | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Fixed static 1+1+3 layout with central facing table for conversation | |
|---|---|---|
| Assembly requirement | Knock-down flat pack assembly with bolted frame connections | |
| Seat function | Fixed non-reclining, non-tilting seat and back for short-duration guest waiting | |
| Surface maintenance | Smooth non-porous PU upholstery allows wipe-cleaning with standard disinfectants | |
| Floor protection | Integrated non-marking glides prevent scuffing on carpet, tile, or wood floors | |
| Color customization | Standard grey finish with optional custom upholstery colors available on request | |
| Frame finish performance | Chrome-plated frame finish resists rust and scuffing for high-traffic public reception use | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office reception lobbies | Suitable for guest waiting areas with conversational seating layout for short visits | |
|---|---|---|
| Corporate meeting waiting areas | Provides formal, durable seating for visitors pre-meeting in commercial office spaces | |
| Small business visitor areas | Space-efficient 1+1+3 layout fits compact entryways and small reception zones | |
| Co-working space lounge zones | Durable wipe-clean upholstery supports frequent use by rotating visitors and members | |
| Public service waiting areas | Heavy-duty commercial construction withstands high daily traffic in government or service offices | |
| Recommended maintenance | Wipe upholstery weekly and inspect frame bolts quarterly for longest service life |
EU Market Access Requirements* EN Standards
| EN 1335-1:2020 | Applies to general safety test methods for office visitor/reception seating | |
|---|---|---|
| EN 12521:2015 | Applies to strength, durability and safety requirements for non-domestic seating | |
| EN 12150-1:2015 | Applies to tempered soda-lime silicate glass safety requirements for coffee table tops |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Applies to performance and safety requirements for lounge and reception seating | |
|---|---|---|
| ANSI/BIFMA X5.5-2021 | Applies to performance requirements for occasional-use office tables |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applies to general technical requirements for wooden furniture used in internal sofa frames | |
|---|---|---|
| GB/T 19001-2016 | Applies to quality management system requirements for commercial furniture production | |
| GB 6675-2014 | Applies to safety requirements for edge finishing on glass and metal components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applies to general technical requirements for wooden furniture used in internal sofa frames; 2. GB/T 19001-2016: Applies to quality management system requirements for commercial furniture production; 3. GB 6675-2014: Applies to safety requirements for edge finishing on glass and metal components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
