Automatic mm / inch conversion · Core engineering specifications
| Armchair overall dimensions | 810 x 760 x 910 mm | |
|---|---|---|
| Loveseat overall dimensions | 1520 x 860 x 840 mm | |
| Coffee table overall dimensions | 1200 x 700 x 460 mm | |
| Seat height from floor | 480 mm | |
| Seat depth for all seating units | 580 mm | |
| Armrest height from seat | 180 mm | |
| Seating leg length | 180 mm | |
| Loveseat seat width per position | 660 mm | |
| Backrest height above seat | 430 mm | |
| Coffee table leg base span | 1050 mm | |
| Armchair seat width | 710 mm | |
| Coffee table top thickness | 20 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Load capacity per seating position | 136 kg | |
|---|---|---|
| Total set net weight | 152 kg | |
| Cushion foam density | 45 kg/m³ | |
| Foam rebound rate | 60% | |
| Recommended total occupancy | 4 people | |
| Seat cushion thickness | 100 mm | |
| Backrest foam thickness | 80 mm | |
| Frame static load durability | 100000 cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seating upholstery | 1.2mm thick grey PU faux leather with tufted detailing | |
|---|---|---|
| Internal seating frame | 25mm thick solid kiln-dried hardwood frame | |
| Seating support base | Sinuous spring suspension system | |
| Seating legs | 1.5mm thick black powder-coated tapered steel legs | |
| Coffee table top | 20mm thick white engineered stone/quartz composite top | |
| Coffee table base | 20 x 40mm rectangular black powder-coated steel tube frame with cross bracing | |
| Cushion padding | High-density polyurethane foam with polyester fiber wrap | |
| Armrest structure | Padded integrated armrests matching upholstery with recessed handle detail | |
| Floor protection pads | Non-slip polyethylene foot pads on leg bases | |
| Seam stitch pitch | 8 stitches per inch | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features

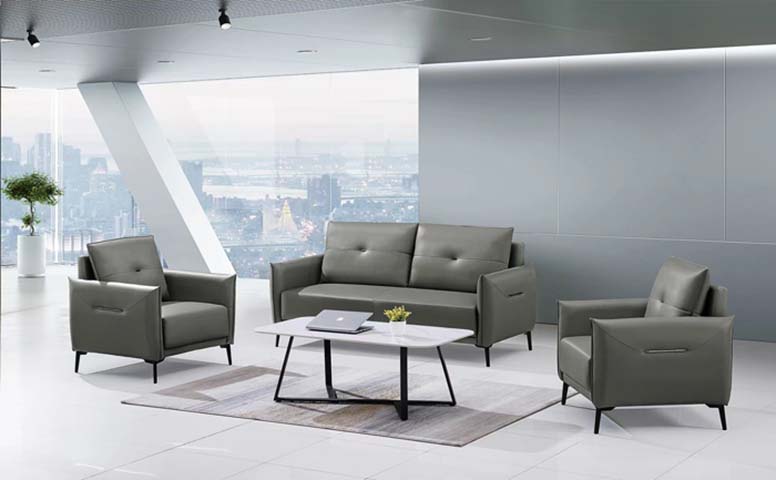

| Seating configuration | Fixed stationary U-shaped layout with two armchairs, one loveseat, central coffee table | |
|---|---|---|
| Cleaning and maintenance | Wipe-clean faux leather surface resistant to common liquid spills | |
| Assembly requirement | Knock-down assembly required for legs and table base | |
| Back support design | Slightly reclined fixed backrest with button tufting for lumbar contour | |
| Floor compatibility | Suitable for tile, carpet, and vinyl commercial flooring surfaces | |
| Seating ergonomics | Upright relaxed back angle suitable for 45 minute waiting periods | |
| Color customization option | Available in alternate upholstery and table top finishes per commercial supplier offerings | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
Recommended spaces / users / usage modes
| Office reception waiting areas | Ideal for corporate lobbies to seat 4 waiting visitors around a central table | |
|---|---|---|
| Executive floor informal meeting zones | Suitable for short casual discussions away from formal workstations | |
| High-rise lounge break areas | Complements modern open office design with slim silhouette and neutral grey finish | |
| Hotel and business center lobbies | Commercial-grade construction supports daily high-traffic public use | |
| Healthcare and clinic waiting spaces | Wipe-clean upholstery supports easy sanitization between users | |
| Co-working space common areas | Flexible arrangement supports small group collaboration and casual work | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Furniture Strength, durability and safety for non-domestic seating applicable to this lounge set | |
|---|---|---|
| EN 15372:2016 | Furniture Strength, durability and safety for non-domestic tables applicable to coffee table | |
| EN 13722:2004 | Furniture Assessment of surface resistance to cold liquids for upholstery and table tops |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Standard for lounge seating safety and performance for commercial use | |
|---|---|---|
| ANSI/BIFMA X5.5-2021 | Standard for desk products applicable to lounge height coffee tables | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for environmental and social responsibility |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable to wooden frame general furniture strength and durability testing for seating units | |
|---|---|---|
| GB/T 19001-2016 | Quality management system standard applicable to commercial furniture suppliers | |
| GB 18584-2001 | Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture | |
| GB/T 35607-2017 | Green product assessment standard applicable to office furniture environmental performance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable to wooden frame general furniture strength and durability testing for seating units; 2. GB/T 19001-2016: Quality management system standard applicable to commercial furniture suppliers; 3. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture; 4. GB/T 35607-2017: Green product assessment standard applicable to office furniture environmental performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
