Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2100 × 850 × 780 mm | |
|---|---|---|
| Seating configuration | Three seats with three separate back cushions and three seat zones | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Weight reference | 68 kg | |
|---|---|---|
| Total static load capacity | 360 kg | |
| Per-seat static load | 120 kg | |
| Seat foam density | 35 kg/m3 | |
| Back foam density | 28 kg/m3 | |
| Foam indentation hardness | 45 kgf | |
| Suggested daily users | 18 people/day | |
| Durability target | 50,000 simulated seating cycles | |
| Floor contact load | 0.05 kg/cm2 | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery | Tan leather or leather-look surface with stitched cushion panels | |
|---|---|---|
| Seat cushion fill | 140 mm polyurethane foam with density target of 35 kg/m3 | |
| Back cushion fill | 120 mm polyurethane foam with density target of 28 kg/m3 | |
| Internal load frame | Kiln-dried hardwood or engineered wood frame with 30 mm nominal structural members | |
| Base plinth | Brushed stainless steel rectangular base band with welded corner construction | |
| Floor protection | Dark non-marking glide pads beneath the metal plinth |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating function | Fixed three-seat lounge configuration for face-to-face waiting and short-duration reception use | |
|---|---|---|
| Back support | Three independently divided upright back cushions with an 8-degree fixed pitch | |
| Arm support | Integrated box arms on both ends provide 190 mm support above the seat and define the outer seat bays | |
| Floor placement | Low stainless plinth creates stable perimeter support with 20 mm clearance for light cleaning |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.

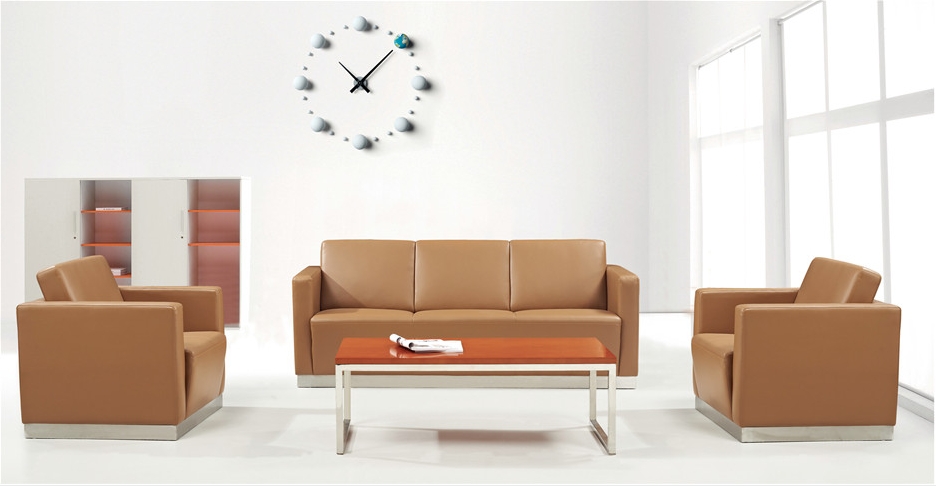

| Office reception area | Three-seat sofa suitable for visitor waiting zones paired with two matching armchairs and a central coffee table | |
|---|---|---|
| Executive lounge setting | Appropriate for short meetings outside private offices, where tan upholstery and metal trim support a formal visual style |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Upholstered furniture safety | EN 12520:2015 furniture strength, durability and safety for seating |
|---|
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Seating engineering reference | Recommended references: ANSI/BIFMA X5.4 | |
|---|---|---|
| Static load screening | ANSI/BIFMA X5.4 back and seat static load tests |
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Furniture safety recommendation | GB/T 3324wooden furniture general technical requirements | |
|---|---|---|
| Formaldehyde recommendation | GB 18584indoor wooden furniture limited harmful substances |
This product must meet the following technical requirements: 1. Furniture safety recommendation: GB/T 3324wooden furniture general technical requirements; 2. Formaldehyde recommendation: GB 18584indoor wooden furniture limited harmful substances; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
