Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2000 × 850 × 780 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended seating capacity | 3 persons | |
|---|---|---|
| Sofa total static load capacity | 300 kg | |
| Sofa net weight | 52 kg | |
| Seat foam density | 35 kg/m3 | |
| Back foam density | 28 kg/m3 | |
| Foam rebound performance | 40 percent | |
| Suggested daily occupancy duration | 8 hours | |
| Seam and upholstery durability target | 50,000 double rubs | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Black smooth faux leather with tailored cushion seams | |
|---|---|---|
| Seat cushion core | 120 mm polyurethane foam over a rigid seat board | |
| Back cushion core | 140 mm polyurethane foam pad with soft front layer | |
| Internal load frame | Kiln-dried timber or engineered-wood frame with screwed corner blocks | |
| Support legs | Four polished square metal tube legs with level floor feet | |
| Arm and side panels | Upholstered board panels with squared top edges |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Fixed three-seat straight sofa with individual seat and back cushion divisions | |
|---|---|---|
| Back support | Padded fixed back cushions provide upright reception posture with an 8-degree backward angle | |
| Arm support | Full-height square arms on both ends provide lateral support and visual separation between seats | |
| Delivery assembly | Knockdown leg attachment with four bolted legs to reduce carton depth |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.

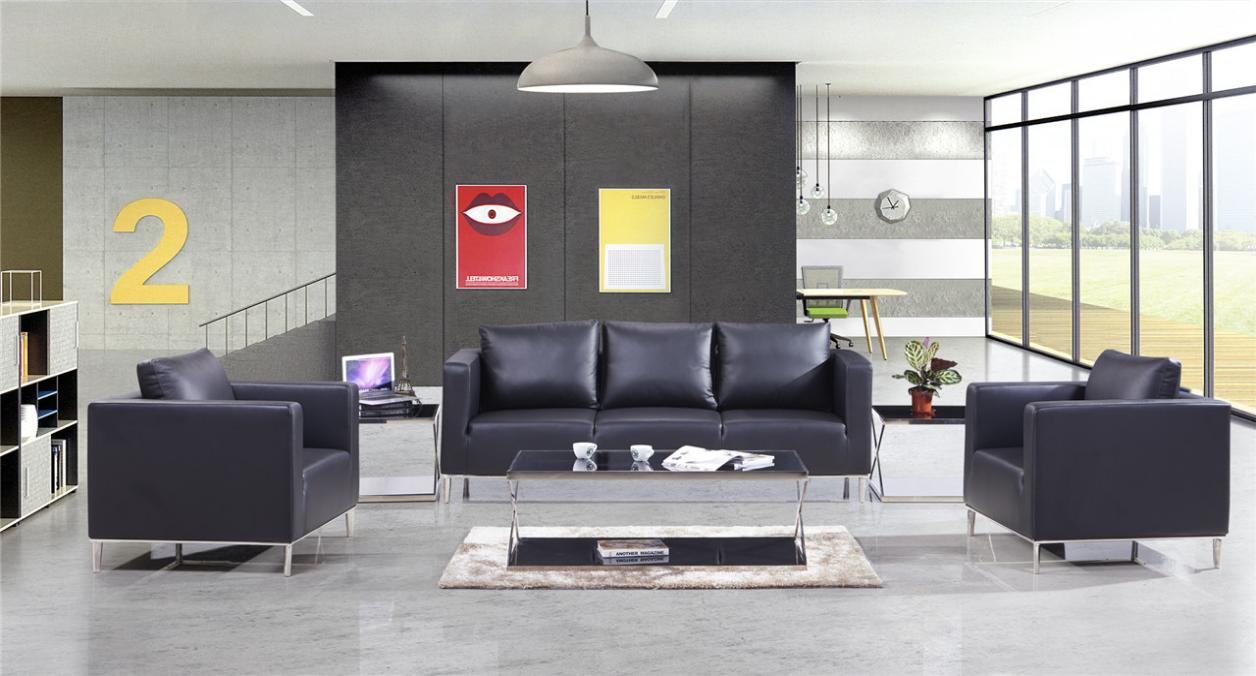

| Reception and visitor lounge | Suitable for corporate reception, showroom waiting, or guest negotiation areas because the three-seat sofa pairs with two matching armchairs and low tables. | |
|---|---|---|
| Office breakout setting | Suitable for short meetings, waiting visitors, or informal discussion zones with durable black upholstery and compact 850 mm depth. |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
