Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3200 × 900 × 850 mm | |
|---|---|---|
| Set overall footprint | 4800 x 4200 mm | |
| Seat height from floor | 450 mm | |
| Seat cushion depth | 600 mm | |
| Backrest height above seat | 400 mm | |
| Armrest width | 180 mm | |
| Seat cushion thickness | 150 mm | |
| Leg/base clearance under sofa | 50 mm | |
| Coffee table top thickness | 50 mm | |
| Set overall U-shape footprint | 4800 x 4200 mm | |
| Backrest height above seat surface | 400 mm | |
| Back Cushion Thickness | 160 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Four-seat sofa net weight | 120 kg | |
|---|---|---|
| Single seat static load capacity | 150 kg | |
| Total set seating capacity | 8 people | |
| Seat foam density | 45 kg/m³ | |
| Seat foam rebound rate | 45% | |
| Upholstery seam stitch pitch | 8 stitches per 30mm | |
| Upholstery abrasion resistance | 50000 Martindale cycles | |
| Seat cushion foam density | 45 kg/m³ | |
| Leather upholstery abrasion resistance | 50000 Martindale cycles | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Top-grain semi-aniline leather | |
|---|---|---|
| Seat cushion core | High-density polyurethane foam wrapped with polyester fiber | |
| Internal support frame | Kiln-dried solid hardwood with 30mm section thickness | |
| Suspension system | Sinuous steel springs with 4mm wire diameter | |
| Armrest padding | 40mm high-density foam over solid wood arm frame | |
| Coffee table top | Dark walnut veneer over high-density fiberboard core | |
| Coffee table support legs | Polished brushed stainless steel with 50mm angled section | |
| Sofa base plinth | Leather-wrapped engineered wood frame | |
| Sofa seat and back upholstery | 1.4mm thick top-grain semi-aniline leather with light gray matte finish | |
| Sofa seat cushion core | 45kg/m³ high-density polyurethane foam wrapped with 20mm thick polyester fiber batting | |
| Sofa internal support frame | Kiln-dried solid hardwood with 30mm x 50mm section members, joined with glued corner blocks | |
| Sofa seat suspension system | 4mm diameter sinuous steel springs spaced 100mm apart, secured with plastic spring clips |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Fixed modular U-shaped layout with one four-seat and two three-seat sofas | |
|---|---|---|
| Back support | Fixed upright backrest with three segmented cushions per three-seat unit, four per four-seat unit | |
| Coffee table storage | Central two-drawer closed storage unit integrated into table base | |
| Floor protection | Concealed non-slip felt pads under sofa plinth bases | |
| Upholstery maintenance | Stain-resistant surface treatment on leather | |
| Structure stability | Reinforced corner blocks at all sofa frame joints | |
| Seat comfort | Zoned foam density with firmer edge support to prevent seat sag | |
| Seating layout | Fixed U-shaped arrangement with one central four-seat sofa and two opposing three-seat sofas | |
| Upholstery performance | Stain-resistant nano surface treatment applied to leather upholstery | |
| Frame stability | Reinforced glued and screwed corner blocks at all sofa frame joints | |
| Seat edge support | 50mm wide high-density foam firm edge reinforcement around seat cushion perimeters | |
| Cushion Service Configuration | Recommended 2 removable/replaceable cushion methods |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total packaging pieces | 6 pieces | |
|---|---|---|
| Four-seat sofa carton size | 3250 x 950 x 900 mm | |
| Three-seat sofa carton size | 2250 x 950 x 900 mm | |
| Coffee table carton size | 1850 x 950 x 500 mm | |
| Total shipment gross weight | 350 kg | |
| Total shipment CBM | 5.2 cbm | |
| On-site assembly time | 90 minutes | |
| 40HQ container loading quantity | 18 sets | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office reception areas | Formal U-shaped layout supports face-to-face meetings between executives and 8 visiting guests, matched to premium office interior finishes | |
|---|---|---|
| High-end hotel lobby lounges | Durable commercial-grade construction withstands constant high-traffic use by guests, while neutral light gray upholstery coordinates with luxury hotel interiors | |
| Corporate boardroom antechambers | Low-profile elegant design does not obstruct sightlines, while plush seating provides comfortable waiting space for pre-meeting gatherings | |
| Private club lounge spaces | Refined leather and metal/wood finish coordinates with upscale club interior design, providing long-lasting seating for member and guest use | |

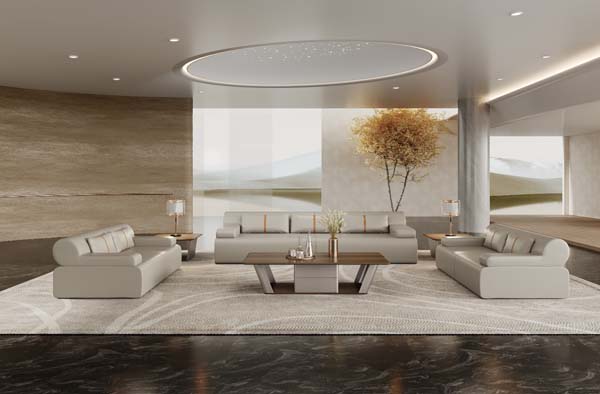

| Recommended matching configuration | Pair with two 600x600mm side tables, table lamps and decorative floral arrangements as shown in render, placed at outer ends of the lateral sofas for complete reception setup | |
| Executive floor reception areas | Formal U-shaped layout supports face-to-face meetings between executives and visiting groups of up to 10 people, with neutral light gray finish matching premium office interior materials | |
| High-end hotel VIP lobby lounges | Heavy-duty commercial-grade construction withstands constant high-traffic use by guests, while matte leather and wood/metal finishes coordinate with luxury hotel interior design | |
| Private enterprise club lounge spaces | Refined leather and matched wood/metal finish coordinates with upscale club interior design palettes, providing durable seating for member and hosted guest use |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Applicable standard for domestic and contract seating, specifies strength, durability and stability requirements for non-domestic reception sofas | |
|---|---|---|
| EN 1022:2018 | Applicable standard for seating stability, verifies resistance to tipping during normal reception use | |
| EN 15372:2008 | Applicable standard for contract furniture tables, specifies strength, durability and stability requirements for reception coffee tables |
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB 20400-2006 | Applicable standard for leather upholstery, limits harmful substances in leather materials for indoor furniture use | |
|---|---|---|
| GB 18584-2001 | Applicable standard for wood furniture, limits formaldehyde emission from wood frame and panel components | |
| GB/T 3324-2017 | Applicable standard for general wooden furniture, specifies dimensional tolerance, surface quality and structural strength requirements for coffee tables and sofa frames |
This product must meet the following technical requirements: 1. GB 20400-2006: Applicable standard for leather upholstery, limits harmful substances in leather materials for indoor furniture use; 2. GB 18584-2001: Applicable standard for wood furniture, limits formaldehyde emission from wood frame and panel components; 3. GB/T 3324-2017: Applicable standard for general wooden furniture, specifies dimensional tolerance, surface quality and structural strength requirements for coffee tables and sofa frames; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
