OFS-CAN-3PC-CHR

Code：WDNK6MV1
Request supplier quotes

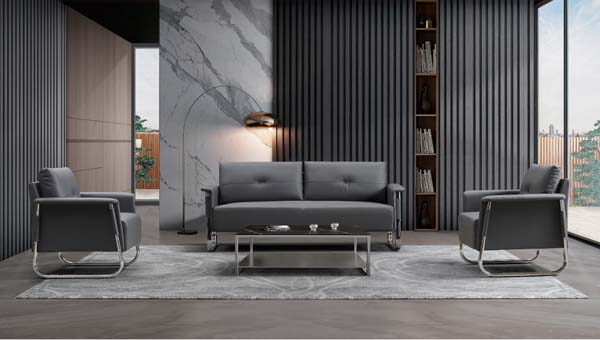

3-Piece Modern Office Reception Sofa Set with Cantilever Chrome Frame and Matching Coffee Table Key Specifications 2026-08-01 20:02

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OFS-CAN-3PC-CHR

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Seat Cushion Thickness180 mm
Back Cushion Thickness160 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Total set net weight115 kg
Per-seat static load capacity150 kg
Recommended maximum continuous seating duration120 minutes
Seating capacity for full set5
Frame cyclic load durability100000 cycles
Upholstery abrasion resistance50000 cycles (Martindale)
Seat Foam Density / Rebound40 kg/m³ / 60%
Upholstery Abrasion ReferenceFabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference130 kg/seat
Upholstery Seam Pitch4 mm
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and back upholsteryCharcoal grey polyurethane (PU) leather, 1.0mm thickness
Seat core cushioning40mm thick high-resilience polyurethane foam, 40kg/m³ density, 45% rebound rate
Backrest cushioning30mm thick medium-density polyurethane foam, 35kg/m³ density, 40% rebound rate
Sofa and armchair framesPolished 25mm diameter chrome-plated steel tube, 1.5mm wall thickness
Armrest padding20mm thick polyurethane foam wrapped in matching upholstery
Coffee table top10mm thick dark smoked tempered glass, polished flat edges
Coffee table frame and lower shelfBrushed 20mm square stainless steel tube, 1.2mm wall thickness, with 1.0mm thick steel lower shelf panel
Frame floor glidesInjection-molded non-marking nylon pads, 5mm thickness
Backrest tuftingIntegrated single-button tuft per seat position, 8mm seam stitch pitch
Seat support base12mm thick multi-layer plywood substrate under cushion foam, 8% moisture content
Frame surface finishMirror chrome plating with 0.2μm nickel undercoat and 0.1μm chrome topcoat
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Cantilever frame flex supportContinuous chrome tube frame provides controlled 10mm vertical deflection under rated load to absorb seating impact without manual mechanical adjustment per standard cantilever seating engineering
Fixed position seating designNo recline, swivel, or height adjustment mechanisms to maintain neat uniform alignment in formal reception layouts per visible welded fixed frame construction
Coffee table dual-level storageUpper glass surface supports 50kg of beverage and decor placement, lower steel shelf holds 20kg of magazines and documents per visible open two-tier table structure
Floor protection functionNylon glides at all 8 seating frame contact points prevent scratches on hardwood, tile, and polished concrete flooring without requiring additional felt pads per visible base contact points
Set modular layout flexibilityTwo armchairs can be positioned angled 45degrees or parallel to the three-seater sofa to fit reception rooms of 12sqm to 25sqm per standard 3-piece reception set configuration
Stain-resistant upholstery maintenanceSmooth non-porous PU leather surface can be wiped clean with mild detergent in 30 seconds per high-traffic use without specialized fabric cleaning equipment
Uniform set design coordinationMatching charcoal upholstery, polished chrome frame finish, and identical cantilever silhouette across sofa and armchairs creates a cohesive formal aesthetic for executive reception areas per visible design consistency
Static load stabilityCantilever frame design meets 10-degree rear tilt stability requirement to prevent tipping during normal entry and exit per commercial seating safety standards
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive office reception areasSuitable for CEO and senior management waiting rooms, as the formal minimalist charcoal and chrome aesthetic complements modern executive interior design for VIP guest hosting
Corporate lobby waiting zones50000-cycle abrasion-resistant upholstery and 100000-cycle durable metal frames are suited for high-traffic visitor waiting areas with 50+ daily user contacts
Small meeting and breakout spacesConfigurable layout allows informal team discussions or small client meetings of up to 5 people without dedicated conference furniture for 120 minute sessions
Modern design studio and co-working spacesNeutral dark color palette and slim cantilever profile fits contemporary minimalist workspace interiors without visual clutter for open-plan guest seating
High-end residential home office and lounge zonesCompact 1900mm total set footprint and polished chrome finish make the set suitable for luxury home office guest seating for client visits
Hotel executive club loungesCommercial-grade durability and formal streamlined appearance align with premium hospitality public space requirements for registered guest seating in club level areas
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 16139:2013 Furniture - Strength, durability and safety - Non-domestic seatingApplicable standards and test results require confirmation
EN 12520:2015 Furniture - Strength, durability and safety - Requirements for domestic tablesApplicable standards and test results require confirmation
EN 1022:2018 Domestic furniture - Seating - Determination of stabilityApplicable standards and test results require confirmation
EN 13722:2004 Furniture - Upholstered furniture - Classification of resistance to ignitionApplicable standards and test results require confirmation
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2020 Lounge and Public SeatingApplicable standards and test results require confirmation
ANSI/BIFMA X5.5-2021 Desk ProductsApplicable standards and test results require confirmation
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017 General technical requirements for wooden furnitureApplicable standards and test results require confirmation
GB/T 3325-2017 General technical requirements for metal furnitureApplicable standards and test results require confirmation
GB/T 16799-2008 Furniture used leatherApplicable standards and test results require confirmation
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable standards and test results require confirmation;
2. GB/T 3325-2017 General technical requirements for metal furniture: Applicable standards and test results require confirmation;
3. GB/T 16799-2008 Furniture used leather: Applicable standards and test results require confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFS-CAN-3PC-CHR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFS-CAN-3PC-CHR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFS-CAN-3PC-CHROpen Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

This 3-piece modern office reception sofa set delivers a cohesive, streamlined formal aesthetic anchored by matching cantilever chrome frames across all seating pieces and a coordinating coffee table. The seating components include two single armchrs and one three-seat sofa, all upholstered in smooth matte charcoal grey PU leather accented with single-button tufted back detl for a polished, tlored look. The included coffee table features a dark smoked tempered glass top with polished flat edges, pred with a brushed steel frame and integrated lower shelf for coordinated visual flow across the full set. Seating frames are constructed from polished chrome-plated steel tube formed into a continuous loop structure that provides integrated arm and leg support, with padded armrests wrapped in matching upholstery. Seat cushions use high-resilience polyurethane foam over a multi-layer plywood substrate for even weight distribution, while backrests use medium-density foam to balance softness and structured support. The coffee table is built from square brushed stnless steel tube with a steel lower shelf panel, and all seating frame bases are fitted with non-marking nylon glides to protect hard flooring surfaces. The fixed-position seating has no recline, swivel, or height adjustment mechanisms to mntn neat, uniform alignment in formal layouts. The cantilever frame delivers controlled vertical flex to absorb seating impact, while the dual-level coffee table provides a top surface for beverages and decor, plus a lower shelf for reading materials and documents. The non-porous PU leather upholstery wipes clean easily with mild detergent for low-effort mntenance in high-use spaces, and the modular pieces can be arranged in angled or parallel configurations to fit avlable space. The full set seats five people, and is engineered for short-duration stays of up to two hours, making it ideal for executive office reception areas, corporate lobby wting zones, small meeting and breakout spaces, modern design studios and co-working spaces, high-end residential home office lounges, and hotel executive club lounges. For procurement, note that cushion firmness is optimized for reception use rather than all-day workstation seating, and the set ships in knock-down form with reference assembly guidance avlable. Confirm material grade detls via final supplier bill of materials prior to purchase to align with project durability and aesthetic requirements.
