PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	600 × 630 × 1016 mm
Seat height	480 mm
Seat width	550 mm
Seat depth	500 mm
Armrest height above seat	220 mm
Backrest height above seat	536 mm
Back cutout height	120 mm
Leg height (floor to seat rail)	420 mm
Armrest width per side	60 mm
Front leg clearance under seat	180 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static load capacity	150 kg
Net weight per unit	12 kg
Seat cushion foam thickness	80 mm
Backrest padding thickness	50 mm
Cushion foam density	50 kg/m³
Foam rebound rate	60%
Seam stitch pitch	3 mm per stitch
Upholstery abrasion resistance	30000 Martindale cycles
Warranty period	1 year
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Linen-look polyester fabric
Seat cushion core	High-density polyurethane foam
Backrest padding core	Medium-density polyurethane foam
Internal seat frame	12 mm thick plywood
Structural legs	Dark-stained solid rubberwood
Integrated armrest structure	Plywood frame wrapped in matching upholstery
Leg floor glides	Black plastic non-slip glides
Assembly hardware	Zinc-plated steel bolts and Allen key
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating structure	Fixed four-leg non-reclining frame
Back support feature	Integrated lumbar padding below horizontal cutout
Arm support	Continuous curved arms connecting back to seat front
Back ventilation	Horizontal open cutout in mid-back
Floor protection	Plastic glides on all four leg bases
Assembly requirement	Knock-down bolted leg attachment
Color option availability	5 neutral finish options
Stacking capability	Non-stacking fixed structure
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Note label	Engineering for quotation, not supplier measured
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential dining room	Pairs with standard 750mm height dining tables for daily meals
Cafe and restaurant seating	Neutral finish fits modern casual dining hospitality spaces
Home office guest seating	Upright posture suitable for temporary visitor use beside desks
Dressing room vanity seating	Armrest support ideal for seated grooming at vanities
Open plan kitchen island seating	Compact footprint fits kitchen island counter overhangs
Event and function venue seating	Stackable alternative for banquet and event setups
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Domestic furniture strength/durability for seating
EN 1022:2018	Seating stability test method
EN 13759:2001	Upholstered seating ignition resistance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB/T 16799-2008	Upholstered furniture general safety standards
GB 18584-2001	Formaldehyde emission limits for wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB/T 16799-2008: Upholstered furniture general safety standards;
3. GB 18584-2001: Formaldehyde emission limits for wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DAC-BG-CUT01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DAC-BG-CUT01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DAC-BG-CUT01Open Export Tool

Quick Actions

Post an RFQ

Product Description

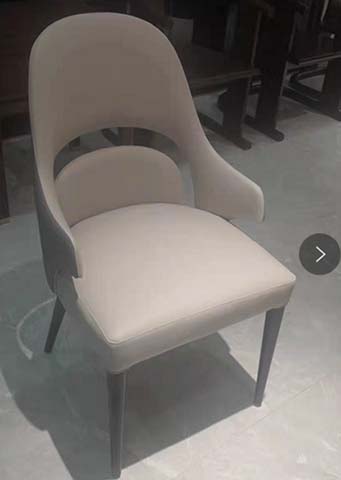

The Beige Upholstered Dining Armchair with Horizontal Back Cutout presents a sleek, modern silhouette defined by clean, continuous lines and balanced proportions. Its fully upholstered seat, back, and integrated curved arms create a soft, unified visual profile, contrasted by dark solid wood legs that anchor the design with warm, grounded depth. A single horizontal open cutout sits at the mid-back, adding subtle geometric interest while breaking up the expanse of upholstery, and the fixed four-leg structure delivers a stable, streamlined layout suited to a range of curated interiors. Constructed for regular daily use, the chair features a light neutral linen-look polyester woven upholstery wrapped over padded cushioning, supported by an internal frame of plywood and bent plywood components. The seat core uses high-density polyurethane foam, while the backrest incorporates medium-density polyurethane foam, with integrated lumbar padding positioned directly below the back cutout for targeted support. The structural legs are crafted from dark-stained solid rubberwood, fitted with black plastic non-slip glides at the base to protect floor surfaces. Assembly relies on zinc-plated steel bolts secured with an included Allen key, with legs attached via a knock-down bolted system. Functional design elements prioritize comfort and practicality: the non-reclining fixed frame supports an upright seated posture, the mid-back cutout enables air circulation to reduce heat buildup during extended use, and continuous curved arms run smoothly from the backrest to the front of the seat to offer steady arm support. The chair holds a recommended static load capacity of 150 kg, with padding calibrated to balance softness and structural support. This versatile seating option works across both residential and commercial spaces: it pairs seamlessly with standard height dining tables for home dining rooms, fits neatly under kitchen island overhangs in open-plan layouts, serves as comfortable vanity seating in dressing rooms, and acts as appropriate temporary guest seating in home offices. In commercial settings, its neutral finish complements modern casual cafes, restaurants, and function venues, where it can be deployed as a stackable seating solution for banquet and event setups. Five neutral finish options are available to coordinate with varied interior palettes. For procurement planning, note that each unit ships across two cartons, with a reference assembly time of 40 minutes per set. Dimension listings are provided for engineering and quotation use rather than final supplier-measured values, so buyers should confirm final specifications prior to large-scale orders. The chair’s compact footprint and lightweight build simplify transport and reconfiguration across multi-use spaces.

Beige Upholstered Dining Armchair with Horizontal Back Cutout Specifications
