PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	590 × 673 × 1050 mm
Seat height	508 mm
Seat width	560 mm
Seat depth	470 mm
Seat cushion thickness	146 mm
Backrest height above seat	542 mm
Front leg upper cross-section	45 x 45 mm
Front leg lower cross-section	32 x 32 mm
Backrest top width	480 mm
Seat to low side rest height	180 mm
Floor to side rest front height	688 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	25 kg
Static seat load capacity	136 kg
Recommended user count	1 per chair
Fabric abrasion resistance	60000 Martindale cycles
Cushion foam density	38 kg/m³
Foam rebound rate	55%
Frame joint static load	1500 N
Warranty period	3 years
Available fabric colors	3
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Structural frame	Dark-stained solid hardwood, mortise-and-tenon joinery
Backrest upholstery	Light blue polyester blend woven fabric, piped edge trim
Seat upholstery	Light blue matching polyester blend woven fabric, piped perimeter seam
Seat cushion fill	High-resilience polyurethane foam, wrapped with polyester fiber batting
Backrest fill	Medium-density polyurethane foam, contoured to frame shape
Legs	Tapered solid hardwood, dark espresso stain finish
Side frame trim	Curved solid wood frame pieces flanking backrest, dark finish matching legs
Upholstery base layer	8mm thick plywood seat and back deck
Seam construction	Reinforced stitched seams with matching light blue piping, 8 stitches per 30mm
Foot glides	Black nylon non-marking floor glides fitted to leg bases
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating support	Fixed-height padded seat, no height or tilt adjustment mechanism
Back support	Tall upright contoured upholstered back for upright dining posture
Side support	Integrated low wood side rests for light arm support during dining
Floor protection	Smooth nylon glides prevent scratching wood or tile flooring
Assembly requirement	Knock-down assembly of legs to seat frame, included hardware and instructions
Care and maintenance	Wipe-clean fabric surface, spot clean with mild upholstery detergent
Stability design	Four-legged tapered stance with 590mm width footprint for anti-tip performance
Stacking compatibility	Non-stacking design, standalone formal dining seating
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential dining room	Suitable for standard 760 mm height dining tables in formal dining spaces
Hotel guest room dining area	Fits hospitality suite dining nooks for guest seating
Restaurant private dining room	Suitable for upscale restaurant private booth seating
Banquet event seating	Works for formal banquet halls and wedding reception seating
Matching table recommendation	Pairs with dark wood finished 6seater rectangular or round dining tables
Floor compatibility	Suitable for hardwood, tile, laminate and low-pile carpeted floors
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Applicable for residential seating furniture strength, durability and safety requirements
EN 1022:2018	Applicable for seating furniture stability testing for domestic use

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general technical requirements of wooden furniture, including structural stability and finish durability
GB/T 1952.1-2012	Applicable for upholstered furniture seating, including foam durability and upholstery performance requirements
GB 18584-2001	Applicable for limit of harmful substances in wooden furniture, for indoor air quality compliance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture, including structural stability and finish durability;
2. GB/T 1952.1-2012: Applicable for upholstered furniture seating, including foam durability and upholstery performance requirements;
3. GB 18584-2001: Applicable for limit of harmful substances in wooden furniture, for indoor air quality compliance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DC-TB-002-DB

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DC-TB-002-DB

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DC-TB-002-DBOpen Export Tool

Quick Actions

Post an RFQ

Product Description

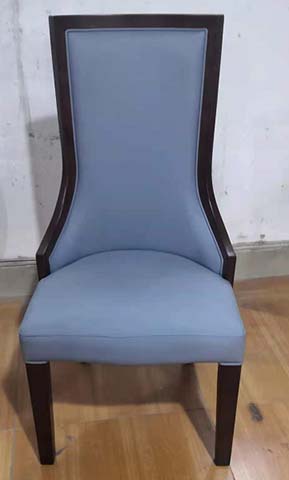

The Tall-Back Upholstered Dining Side Chair (Model DC-TB-002-DB) is an unbranded seating solution designed for refined, posture-supportive dining use. Its visual profile features a structured tall upright backrest flanked by curved, dark-stained solid wood side trim that matches its tapered solid hardwood legs finished in dark espresso, creating a balanced contrast between warm exposed wood framing and soft light blue woven upholstery. Neat matching light blue piped edges outline both the seat and backrest, lending a polished, tailored finish to the piece, with a four-legged tapered stance that delivers stable visual balance. Built for long-term regular use, the chair’s structural frame uses solid dark-stained hardwood joined with mortise-and-tenon construction, with an 8mm plywood base layer supporting both seat and back upholstery. The seat is padded with high-resilience polyurethane foam wrapped in polyester fiber batting, while the contoured backrest uses medium-density polyurethane foam shaped to align with the frame. All upholstery uses a light blue polyester blend woven fabric, with reinforced stitched seams set to 8 stitches per 30mm for durable wear. Smooth nylon glides fitted to the leg bases prevent surface scratching on compatible flooring types. Functionally, the chair features a fixed-height padded seat with no tilt or height adjustment, paired with a tall contoured backrest built to support upright dining posture, plus integrated low wood side rests that provide light arm support during meals. The upholstered surface is wipe-clean, suitable for spot cleaning with mild upholstery detergent. The chair ships as knock-down components requiring attachment of legs to the seat frame, with all required hardware and instructions included, and an assembly time of 40 minutes per unit. Each chair is designed for single-user seating. This model is well suited for a range of formal dining settings, including residential dining rooms paired with standard height dining tables, hotel guest room dining nooks, upscale restaurant private dining rooms, and formal banquet or wedding reception spaces. It coordinates seamlessly with dark wood finished rectangular or round six-seater dining tables, and performs reliably on hardwood, tile, laminate, and low-pile carpeted floors. Procurement teams and residential buyers should note the chair ships across two cartons per set, with logistics data supporting efficient bulk loading for large-scale hospitality or event projects. The fabric’s abrasion rating and robust frame joinery make it appropriate for moderate to high-frequency use, while its classic two-tone wood and soft upholstery finish complements both traditional and contemporary formal dining design schemes.

Tall-Back Upholstered Dining Side Chair Specifications
