Steel-Desk-DP-1200-Grey

Code:A5FFHZV1
Request supplier quotes

Double Pedestal All-Steel Lockable Office Desk with Keyboard Tray and Cable Management Key Specifications 2026-08-05 17:15

Popularity: 9
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

Steel-Desk-DP-1200-Grey

1 active supplier(s) >>
CNYUANTONGSupplierYear 1Company Profile

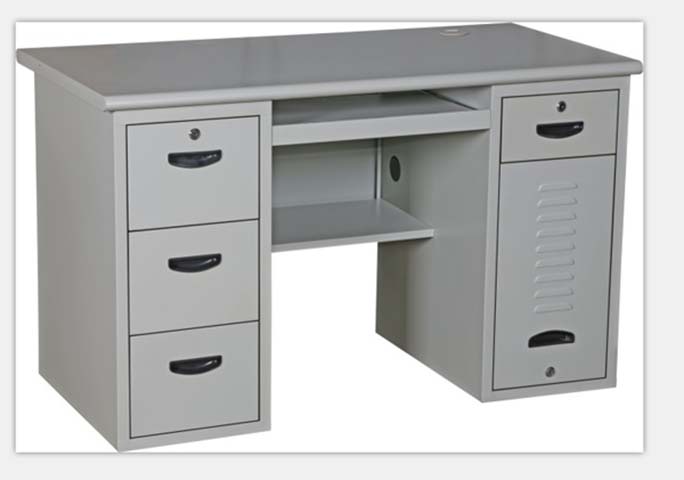

Product supplierDouble Pedestal All-Steel Lockable Office Desk with Keyboard Tray and Cable Management,sheet metal
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions1200 x 600 x 750 mm
Work surface thickness25 mm
Left pedestal width400 mm
Right pedestal width400 mm
Center knee clearance width400 mm
Knee clearance height under keyboard tray620 mm
Keyboard tray usable depth350 mm
Lower CPU shelf usable width250 mm
Top edge overhang20 mm
Cable grommet diameter60 mm
Internal cable pass-through diameter50 mm
Small drawer internal dimensions (each)360 x 500 x 120 mm
Right cabinet door internal usable dimensions360 x 500 x 580 mm
Steel panel wall thickness0.8 mm
Work surface edge band (rolled edge) thickness1.5 mm
Knee clearance depth550 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Product net weight52 kg
Work surface static load capacity150 kg
Recommended user count1
Drawer slide cycle life10000 open/close cycles
Surface scratch resistance500 rub cycles
Hinge cycle life (cabinet door)20000 open/close cycles
Powder coating adhesion ratingGrade 1
Desk stability tip-over load40 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Main structural panels0.8mm thick cold-rolled steel sheet
Surface finishEpoxy polyester grey powder coating
Drawer pullsBlack ABS plastic recessed handles
Lock coresBrass keyed lock cylinders
Drawer slidesCold-rolled steel side-mount 3/4 extension slides
Cable grommetsGrey PVC plastic desk grommets
Internal cable pass-throughPunched round steel hole with de-burred edges
Keyboard tray slidesCold-rolled steel ball-bearing slides
Desk feetWelded integrated steel base feet, no separate adjustable glides visible
Cabinet door hingesCold-rolled steel butt hinges
Fixed CPU shelf0.8mm thick welded cold-rolled steel shelf
Desk base and frame1.2mm thick welded cold-rolled steel frame
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Left pedestal storage3 vertically stacked drawers, top drawer lockable, sized for stationery, documents and small office items
Right pedestal storage1 top lockable small drawer plus 1 full-height lockable cabinet door with embossed vent grooves, suitable for hanging files and computer tower storage
Pull-out keyboard trayCenter-mounted sliding tray positioned under front work surface, extends fully for keyboard use and retracts flush when not in use
Integrated CPU shelfFixed steel shelf located below keyboard tray in center knee cavity, provides dedicated storage space for desktop computer tower
Cable management system60mm surface grommet on rear desktop connects to internal 50mm cable pass-through in center cavity, routes power and data cables from desktop devices to lower shelf equipment
Locking functionKeyed lock on left top drawer and right cabinet door, secures stored items from unauthorized access
Work surface edge designRounded rolled front and side edges, reduces impact injury risk and prevents sharp edge contact during use
Cabinet ventilationEmbossed horizontal vent grooves on right cabinet door, promote air flow for stored computer equipment to prevent overheating
Fixed CPU shelfWelded fixed steel shelf located 200mm below keyboard tray in center knee cavity, supports 10kg load for dedicated desktop computer tower storage
Keyboard tray extension lockBall-bearing slide detent locks tray in fully extended and retracted positions, prevents unintended sliding during typing or storage
Drawer stop mechanismBuilt-in slide stops prevent full accidental drawer pull-out at maximum 3/4 extension, reduces drawer drop and spill risk
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of packages1
Carton dimensions1280 x 680 x 820 mm
Gross shipping weight58 kg
Per-unit shipping volume0.72 CBM
On-site assembly time10 minutes
20ft GP container loading capacity36 units
40ft GP container loading capacity78 units
Packaging materials5-layer corrugated carton, 30mm thick expanded polystyrene corner protection, plastic stretch wrap, plastic bag for keys and hardware
40ft HQ container loading capacity92 units
Stacking limit during storage3 units
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

General office open workstationsSuitable for individual staff workstations in corporate offices, government agencies and institutional facilities, provides lockable storage for personal work documents and supplies
Public service and administrative officesSuitable for front desk administrative staff, public service counters and clerical work areas, durable steel surface resists heavy daily use and easy to clean and maintain
Industrial site offices and security roomsSuitable for factory office spaces, security control rooms and warehouse administrative areas, robust all-steel construction withstands high-traffic, heavy-use environments better than wood-composite desks
Small home office useSuitable for compact home office spaces, integrated storage eliminates need for separate file cabinets, lockable storage secures personal work materials
Temporary and project site officesSuitable for construction site temporary offices, project field offices and mobile workspaces, all-steel construction resists damage during relocation and frequent reconfiguration
Computer workstation deploymentIntegrated CPU shelf and cable management make this desk ideal for dedicated desktop computer workstations, keeps computer equipment off the floor and organized for IT maintenance
School and educational administrative officesSuitable for school staff rooms, administrative offices and campus service areas, graffiti-resistant powder coat finish cleans easily and lockable storage secures student records and confidential materials
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 527-1:2011Applicable European standard for office work tables and desks: safety requirements, defines stability, strength and dimensional requirements for office work surfaces
EN 527-2:2002+A1:2003Applicable European standard for office work tables: mechanical safety test methods, defines test procedures for load, durability and stability verification
EN 14073-2:2004Applicable European standard for office storage furniture: safety requirements for pedestals and cabinets, defines lock performance, drawer strength and tip-over resistance
EN 1023-2:2000Applicable European standard for office storage furniture: test methods for strength and durability of cabinets and pedestals
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021Applicable standard for office desks and workstations, defines structural performance, durability, stability and surface finish requirements for commercial office desks
ANSI/BIFMA X5.9-2019Applicable standard for storage units: pedestals and cabinets, defines drawer cycle performance, load capacity and lock durability for office storage components
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3326-2016Applicable standard for furniture: desks, defines dimensional tolerances, structural strength and stability requirements for office work desks
GB/T 24821-2009Applicable standard for office furniture: steel office furniture, defines material thickness, coating adhesion, corrosion resistance and load performance requirements
GB 18584-2001Applicable standard for indoor decorating and refurbishing materials: limit of harmful substances in wood furniture, applies to any non-steel auxiliary components for formaldehyde and heavy metal limits
GB/T 10357.1-2013Applicable standard for furniture mechanical performance test: table strength and stability, defines test methods for desktop load, impact resistance and tip-over stability
GB/T 4893.8-2013Applicable standard for furniture surface test: abrasion resistance, defines test method for powder coat surface scratch and rub durability
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3326-2016: Applicable standard for furniture: desks, defines dimensional tolerances, structural strength and stability requirements for office work desks;
2. GB/T 24821-2009: Applicable standard for office furniture: steel office furniture, defines material thickness, coating adhesion, corrosion resistance and load performance requirements;
3. GB 18584-2001: Applicable standard for indoor decorating and refurbishing materials: limit of harmful substances in wood furniture, applies to any non-steel auxiliary components for formaldehyde and heavy metal limits;
4. GB/T 10357.1-2013: Applicable standard for furniture mechanical performance test: table strength and stability, defines test methods for desktop load, impact resistance and tip-over stability;
5. GB/T 4893.8-2013: Applicable standard for furniture surface test: abrasion resistance, defines test method for powder coat surface scratch and rub durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · Steel-Desk-DP-1200-Grey

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · Steel-Desk-DP-1200-Grey

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · Steel-Desk-DP-1200-GreyOpen Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

The double pedestal all-steel lockable office desk is a compact, single-user work station defined by a symmetrical, functional layout. Its smooth grey matte work surface features rounded rolled front and side edges for user comfort and impact protection, flanked by two integrated steel storage pedestals that create a central open knee cavity designed for seated use. The left pedestal houses three vertically stacked drawers, while the right pedestal combines a top small drawer with a full-height cabinet door fitted with embossed horizontal vent grooves, all fitted with low-profile black recessed pulls. A pull-out sliding keyboard tray sits under the front edge of the work surface, with a fixed welded steel CPU shelf positioned below it in the central cavity, and a rear work surface cable grommet paired with an internal pass-through to route cords neatly between desktop devices and lower equipment. Built entirely from cold-rolled steel with an epoxy polyester grey powder-coated finish, the desk uses a fully welded thicker steel frame for rigid structural stability, with welded integrated steel base feet for consistent floor contact. Hardware includes brass keyed lock cylinders on the left top drawer and right cabinet, keyed alike for single-key access, cold-rolled steel slides for drawers and the ball-bearing keyboard tray, steel butt hinges for the cabinet door, grey PVC cable grommets, and de-burred internal cable holes to protect cord insulation. Practical features include lockable storage for personal or confidential materials, a retractable keyboard tray that locks in extended and retracted positions, drawer stops to prevent accidental pull-out, vented cabinet storage to support r flow for electronic equipment, and a cable management system that keeps power and data cords organized and off walking surfaces. The work surface supports heavy office equipment, while the steel drawer slides and cabinet hinges are rated for long-term dly commercial use, and the scratch-resistant powder coat finish wipes clean easily with standard office cleaning products. This desk fits a wide range of spaces, from open corporate workstations, public service administrative counters, school administrative offices, factory and security site offices, and temporary project site workspaces, to compact home offices where integrated storage removes the need for separate file cabinets. It is particularly well-suited for dedicated desktop computer deployments, as the elevated CPU shelf keeps towers off the floor and simplifies IT maintenance. For procurement, note that the desk ships as a single fully assembled unit to minimize on-site setup time, with protective packaging designed to reduce transit damage. Buyers should confirm specific material thicknesses, lock security grades, and finish specifications directly with suppliers prior to bulk purchase, and adhere to published storage stacking limits to prevent structural deformation during warehouse holding.
