Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1200 x 600 x 750 mm | |
|---|---|---|
| Desktop thickness | 25 mm | |
| Seated knee clearance width | 580 mm | |
| Seated knee clearance height | 600 mm | |
| Seated knee clearance depth | 450 mm | |
| Center pencil drawer internal size | 520 x 400 x 100 mm | |
| Right pedestal drawer internal size (per drawer) | 360 x 500 x 150 mm | |
| Support foot height | 100 mm | |
| Desktop overhang (front) | 20 mm | |
| Steel panel thickness (body) | 0.8 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Net weight | 45 kg | |
|---|---|---|
| Desktop static load capacity | 100 kg | |
| Recommended user weight limit | 150 kg | |
| Locking drawer count | 1 | |
| Warranty period | 3 years | |
| Finish abrasion resistance | 5000 rub cycles | |
| Drawer slide cycle life | 50000 cycles | |
| Cam lock cycle life | 10000 cycles | |
| Powder coating abrasion resistance | 5000 rub cycles | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
| Desktop panel | Cold-rolled steel sheet with epoxy powder coat finish, rolled rounded safety edge | |
|---|---|---|
| Side and frame panels | 0.8mm thick cold-rolled steel, welded box construction | |
| Drawer bodies | Cold-rolled steel formed drawer boxes with integrated slide mounts | |
| Drawer pulls | Injection-molded black PP plastic, recessed ergonomic grip | |
| Center drawer lock | Zinc alloy keyed cam lock with two included keys | |
| Drawer slides | Cold-rolled steel side-mounted 3/4 extension roller slides | |
| Support feet | Welded steel box section feet, powder coated to match frame | |
| Surface coating | Light grey epoxy polyester powder coating, matte finish | |
| Lower knee brace shelf | 0.6mm cold-rolled steel welded between left panel and right pedestal, powder coated to match frame | |
| Left support panel | Full-height 0.8mm cold-rolled steel welded panel extending from floor to desktop underside, forming the left side of the knee bay | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features
| Center drawer locking | Keyed cam lock secures the top center drawer to restrict access to stored stationery and valuables, lock engages when key is turned 90 degrees | |
|---|---|---|
| Drawer extension | Side-mounted roller slides allow 75% extension of all four drawers for easy access to stored contents without tipping risk | |
| Structural support | Full welded left side panel and integrated right pedestal form a rigid box frame that eliminates wobble during writing or typing use | |
| Knee space design | Open knee bay under center drawer accommodates standard armless or t-arm office chairs for seated work, no crossbar obstruction in the primary leg zone | |
| Cable management | Flat desktop surface without pre-drilled cable ports, suitable for surface-mounted cable trays or after-market grommet installation for computer equipment | |
| Leveling stability | Fixed welded feet provide stable placement on flat hard flooring, suitable for after-market adhesive felt pads to protect floor surfaces | |
| Drawer extension travel | Side-mounted roller slides allow 375mm (75%) extension of all four drawers for easy access to rear stored contents without desk tipping risk | |
| Structural rigidity | Full welded left side panel, central knee brace shelf and integrated right pedestal form a rigid closed box frame that eliminates lateral wobble during writing or typing use | |
| Knee space accommodation | Open unobstructed knee bay under center drawer accommodates standard t-arm office chairs up to 560mm wide for seated work, no front crossbar obstruction in the primary leg zone | |
| Cable management compatibility | Flat solid steel desktop without pre-drilled cable ports, supports surface-mounted cable trays or 60mm after-market grommet installation for computer equipment wiring | |
| Pedestal storage organization | Three equal-height stacked right pedestal drawers provide 81L total enclosed storage for documents, office supplies and personal items, sized to fit A4 and letter-size hanging file folders | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg |
Verified carton / gross weight / assembly / loading data
| Number of packages | 1 | |
|---|---|---|
| Carton dimensions | 1250 x 650 x 800 mm | |
| Gross shipping weight | 50 kg | |
| Packaging volume (CBM) | 0.65 | |
| Assembly time | 10 minutes | |
| 20ft container loading quantity | 60 units | |
| 40ft HQ container loading quantity | 150 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
Recommended spaces / users / usage modes
| Office workstation use | Suitable for single-person administrative, clerical or reception workstations in government, corporate or small business offices, providing secure drawer storage for daily documents and supplies | |
|---|---|---|
| Temporary workspace use | Suitable for guard posts, factory offices, warehouse admin stations and temporary site offices due to durable scratch-resistant steel construction that withstands high-traffic heavy use | |
| Small home office use | Suitable for compact home office spaces where lockable storage is needed for paperwork and home office supplies, with a small footprint that fits in spare bedrooms or study nooks | |
| Dormitory and institutional use | Suitable for school staff offices, dormitory study desks, and military/ institutional facilities requiring durable, low-maintenance furniture with secure storage | |
| General office workstation use | Suitable for single-person administrative, clerical or reception workstations in government, corporate or small business offices, providing lockable drawer storage for daily documents and supplies | |
| Industrial and site workspace use | Suitable for guard posts, factory floor offices, warehouse admin stations and temporary construction site offices due to durable scratch-resistant steel construction that withstands high-traffic heavy use | |
| Institutional facility use | Suitable for school staff offices, dormitory study desks, and military/institutional facilities requiring durable, low-maintenance furniture with secure storage |
European market access and chemical requirements
| EN 527-1:2011 | Recommended applicability standard for office work tables - dimensions, applicable to verify work surface height, strength and stability requirements for commercial office use | |
|---|---|---|
| EN 527-2:2016 | Recommended applicability standard for office work tables - safety and strength requirements, applicable to verify desktop load capacity, drawer durability and structural stability |
US and Canada office-furniture standards
Standards applicable to China-market projects
| GB/T 3326-2016 | Recommended applicability standard for desk, table and chair furniture dimensions, applicable to verify work surface height, clearance dimensions and drawer size compliance for office use | |
|---|---|---|
| GB/T 3327-2016 | Recommended applicability standard for metal furniture general technical requirements, applicable to verify steel panel thickness, welding quality and coating adhesion requirements | |
| GB 18584-2001 | Recommended applicability standard for indoor decorating and refurbishing materials - limit of harmful substances in furniture, applicable to verify formaldehyde and heavy metal content limits for coating materials |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Recommended applicability standard for desk, table and chair furniture dimensions, applicable to verify work surface height, clearance dimensions and drawer size compliance for office use; 2. GB/T 3327-2016: Recommended applicability standard for metal furniture general technical requirements, applicable to verify steel panel thickness, welding quality and coating adhesion requirements; 3. GB 18584-2001: Recommended applicability standard for indoor decorating and refurbishing materials - limit of harmful substances in furniture, applicable to verify formaldehyde and heavy metal content limits for coating materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

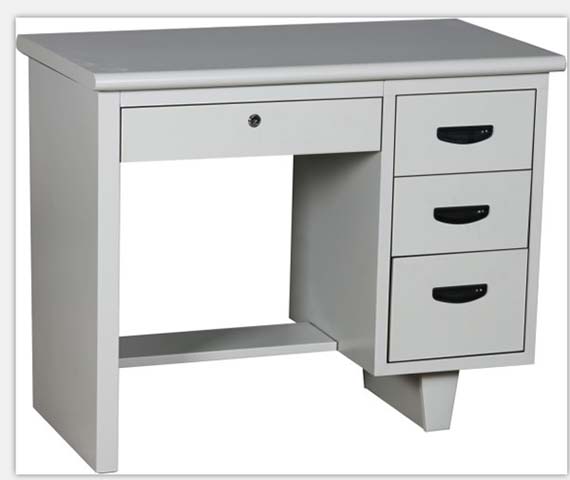

Open Export ToolThe YUANTONG STD-STL-DSK-1200D is a 4-Drawer All-Steel Office Work Desk built for reliable, long-lasting use across commercial and residential settings. It features a clean, streamlined single-position layout with a matte light grey epoxy polyester powder-coated finish, sized to align with mnstream market specifications for standard office workstations. The front desktop edge is finished with a rolled rounded safety overhang to reduce sharp contact risk, while a wide, unobstructed open knee bay sits below the center drawer, sized to accommodate standard T-arm office chairs without crossbar interference in the primary leg zone. A full-height welded cold-rolled steel panel forms the left support, paired with an integrated right-side storage pedestal holding three equal-height stacked drawers below a single shallow full-width center pencil drawer. Black recessed injection-molded PP plastic pulls are fitted to all drawer fronts, with a zinc alloy keyed cam lock included on the center drawer for secure small-item storage, paired with two operating keys. Constructed entirely from sheet metal, the desk uses cold-rolled steel for all structural panels, drawer bodies and side-mounted 3/4 extension roller slides, with welded box frame construction that includes a central lower knee brace shelf to eliminate lateral wobble during typing or writing tasks. Fixed welded steel support feet elevate the frame for stable placement on flat hard flooring, and the solid, flat steel desktop leaves space for after-market cable management solutions including surface-mounted trays or drilled grommets, as no pre-cut cable ports are included. The three right pedestal drawers offer enclosed storage sized to hold A4 and letter-size hanging file folders for documents, supplies and personal items, while the shallow center drawer is configured for stationery access. All steel surfaces feature a durable abrasion-resistant powder coat that is easy to clean and suited to high-traffic use. This desk is well-suited for single-person administrative, clerical or reception workstations in government, corporate and small business offices, as well as high-wear settings including guard posts, factory floor offices, warehouse admin stations, temporary construction site offices, school staff spaces, dormitory study areas and military or institutional facilities. It also works effectively for compact home offices in spare bedrooms or study nooks where space-efficient, lockable storage is required. For procurement, note the unit ships fully welded and assembled with minimal setup required only for foot pad attachment, carries a 3-year warranty covering structural and hardware defects, and supports a total seated use load plus desktop equipment of 150 kg, with a uniform desktop static load rating of 100 kg.
