SD-STL-1200-4D

Code：TW6J19V1
Request supplier quotes

Grey Steel Single-Pedestal Office Desk with 4 Drawers Key Specifications 2026-08-05 16:44

Popularity: 7
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

SD-STL-1200-4D

1 active supplier(s) >>
CNYUANTONGSupplierYear 1Company Profile
Product supplierGrey Steel Single-Pedestal Office Desk with 4 Drawers，sheet metal
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions1200 x 600 x 750 mm
Desktop thickness25 mm
Seated knee clearance width700 mm
Seated knee clearance height600 mm
Seated knee clearance depth480 mm
Right pedestal width400 mm
Center drawer internal dimensions650 x 500 x 120 mm
Small upper pedestal drawer internal dimensions350 x 500 x 150 mm
Large lower pedestal drawer internal dimensions350 x 500 x 280 mm
Steel frame tube thickness1.2 mm
Base support foot height80 mm
Lower cross rail height from floor150 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net weight42 kg
Desktop uniform static load capacity150 kg
Recommended user count1
Drawer slide cycle durability50000 cycles
Surface abrasion resistance1000 rub cycles
Lock security1 key per lock, 200 unique key combinations
Lock key combination count200
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Desktop panel1.2mm thick cold-rolled steel sheet with rounded rolled safety edge, light grey epoxy powder coat finish
Structural frame and side panels1.0mm thick cold-rolled steel sheet, fully welded construction, same light grey powder coat as desktop
Center drawer front and body0.8mm thick cold-rolled steel, fitted with standard cam lock, light grey powder coat
Right pedestal drawers0.8mm thick cold-rolled steel drawers, fitted with black inset plastic pull handles, light grey powder coat
Drawer slidesCold-rolled steel 3/4 extension ball bearing slides
Lower support cross rail1.2mm thick rectangular steel tube, welded between left leg and pedestal base
Pedestal support footFormed steel welded to pedestal base, same powder coat finish
Modesty panel0.8mm thick cold-rolled steel panel forming back of knee opening, light grey powder coat
Cam lock coreZinc alloy lock cylinder with 2 standard keys, fitted to center drawer
Structural side panels and legs1.0mm thick cold-rolled steel sheet, fully welded seamless construction, matching light grey powder coat
Center drawer assembly0.8mm thick cold-rolled steel front and body, fitted with zinc alloy cam lock, light grey powder coat
Rear modesty panel0.8mm thick cold-rolled steel panel forming rear of knee opening, light grey powder coat
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Center drawer lockingKey-operated cam lock secures the full-width center pencil drawer, prevents unauthorized access to stored supplies
Drawer extensionAll drawers open to 3/4 extension via ball bearing slides, provides access to full drawer interior without fully removing drawer
Cable managementOpen rear cable passthrough gap above modesty panel allows routing of monitor and power cables from desktop to floor outlets
Structural rigidityFully welded steel frame eliminates assembly joints, provides wobble-free work surface for writing and computer use
Floor clearance80mm clearance under left leg and pedestal foot allows easy floor cleaning underneath the desk
Storage configuration1 shallow lockable center drawer plus 3 graduated right pedestal drawers provides tiered storage for stationery, documents and personal items
Drawer extension operationAll drawers open to 3/4 extension via side-mounted ball bearing slides, provides unobstructed access to full drawer interior without accidental drawer detachment
Cable management routing80mm high open rear cable passthrough gap above modesty panel allows routing of monitor, keyboard and power cables from desktop to floor outlets without additional grommets
Structural stability performanceFully welded steel frame eliminates loose assembly joints, provides wobble-free work surface rated for 150kg uniform desktop load for writing and computer use
Floor clearance functionality80mm clearance under left leg and pedestal foot allows access for standard vacuum cleaners and mop heads for easy floor cleaning underneath the desk
Cable Management CapacityReference capacity 10 power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5 controlled assembly cycles
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of packages1
Packaged carton dimensions1250 x 650 x 800 mm
Packaged gross weight47 kg
Shipment volume per unit0.65 CBM
Assembly time10 minutes
20ft GP container loading quantity42 units
40ft HQ container loading quantity105 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Government office workspaceHeavy-duty welded steel construction suitable for high-traffic government and administrative office use, lockable drawer provides secure storage for official documents
School staff and teacher officeScratch-resistant powder coat finish and robust structure withstand daily heavy use in educational facility staff rooms
Workshop front office and guard stationSturdy steel construction resists impacts and heavy use in industrial site office and security post environments, lower storage drawer holds logs and work supplies
Small home officeCompact 1200mm width fits small home workspaces, provides sufficient drawer storage for office supplies without occupying excess floor space
Temporary office and job site setupHigh weight capacity and welded frame supports frequent relocation for temporary project offices and construction site administration spaces
Government administrative officeHeavy-duty welded steel construction suitable for high-traffic government and public sector office use, lockable drawer provides secure storage for official documents
K-12 and higher education staff officeScratch-resistant powder coat finish and robust welded structure withstand daily heavy use in school teacher and staff workspaces
Industrial site front office and security guard stationImpact-resistant steel construction resists dents and heavy use in manufacturing facility offices and security post environments, lower drawer holds log books and work supplies
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 527-2:2002+A1:2019Office work tables - Part 2: Mechanical safety requirements, applicable to structural stability and load safety verification for commercial office use
EN 15372:2008+A1:2016Furniture - Durability of office furniture, requirements for strength and durability of work tables and storage components
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017General technical requirements for metal furniture, applicable to dimensional tolerance, structural strength and finish quality inspection of this steel desk
GB/T 10357.1-1989Furniture mechanical performance test for tables, applicable to desktop static load, drawer durability and structural stability testing
GB 18584-2001Indoor decorating and refurbishing materials - limit of harmful substances, applicable to formaldehyde and heavy metal content limits for paint and metal finishes
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to dimensional tolerance, structural strength and finish quality inspection of this steel desk;
2. GB/T 10357.1-1989: Furniture mechanical performance test for tables, applicable to desktop static load, drawer durability and structural stability testing;
3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances, applicable to formaldehyde and heavy metal content limits for paint and metal finishes;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SD-STL-1200-4D

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SD-STL-1200-4D

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SD-STL-1200-4DOpen Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

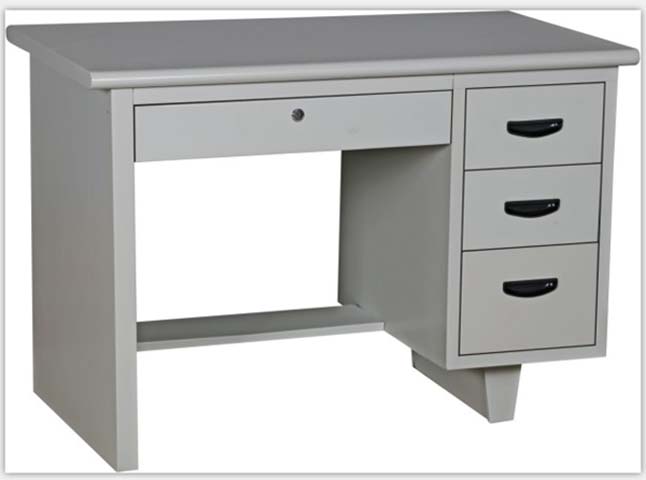

The YUANTONG SD-STL-1200D grey steel single-pedestal office desk presents a streamlined, functional silhouette defined by a uniform light grey epoxy powder coat finish across all components, with contrasting black inset plastic pull handles on the right pedestal drawers for easy operation. Its single-pedestal layout positions the open knee clearance zone to the left of the unit, with a full-width shallow center drawer spanning the knee well and three vertically stacked drawers integrated into the right-side storage pedestal. Rsed support feet lift the base off the floor, and a rear modesty panel sits at the back of the knee opening to provide seated privacy. Constructed from cold-rolled sheet metal with a fully welded seamless frame, the desk features a desktop with a rounded rolled safety edge, built on structural legs, side panels, and a lower rectangular steel cross rl for added rigidity. Drawers are formed from steel, fitted with 3/4 extension cold-rolled steel ball bearing slides, and the full-width center drawer includes a zinc alloy cam lock for secure storage. The durable powder coat surface resists everyday scuffs and abrasion from regular use. Practical design features support dly office tasks: the desktop supports a uniform static load suitable for monitors, documents, and standard office equipment, while tiered drawer storage separates small stationery supplies from bulkier items and files. An open rear cable passthrough above the modesty panel routes power and data cables from the work surface to floor outlets without additional hardware, and the rsed base creates enough floor clearance to accommodate standard cleaning tools. Drawer slides are rated for extended commercial use, and the lock system uses unique key combinations to reduce the risk of unauthorized access from adjacent workstations. This desk fits a wide range of commercial and residential settings, including high-traffic government administrative offices, K-12 and higher education staff rooms, industrial site front offices and security stations, small home offices, and temporary project or job site workspaces. Its compact footprint works well in space-constrned areas, while its robust welded construction holds up to frequent relocation and heavy dly use. Procurement teams should note that the fully welded structure minimizes on-site assembly requirements, with units typically shipped in protective packaging designed to support bulk contner loading for large-scale projects. Drawer hardware meets standard commercial-grade durability expectations, and the smooth steel surface supports simple sanitization and cleaning routines for high-use environments.
