PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1060 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	13.5 kg
Static seat verification load	660 kg
Caster rolling durability target	100000 cycles
Gas-lift cycle target	100000 height cycles
Back frame cyclic load target	120000 cycles
Seat foam density	45 kg/m3 high-resilience polyurethane
Seat foam rebound	45%
Recommended user stature range	1850 mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest suspension	Light gray woven mesh over a sculpted polymer outer frame
Seat upholstery	Light gray woven fabric over molded cushioning
Seat cushion	80 mm high-resilience polyurethane foam on load-bearing board
Arm assembly	Fixed light gray polymer T-arm with dark gray padded contact pads
Center mechanism	Black painted steel tilt mechanism beneath the seat
Five-star base	Light gray molded nylon or glass-filled polymer five-star base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with a 100 mm stroke, operated by the visible right-side lever.
Recline movement	Center-tilt mechanism supports rearward backrest recline to 15 degrees; tension or lock hardware is visible beneath the seat.
Mobility	Five dual-wheel casters provide omnidirectional rolling movement on smooth office floors.
Lumbar support	Integrated curved lumbar pad contacts the lower back; no independent adjustment is visible.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to individual desks, open-plan benches and home offices where light-gray mesh and compact fixed arms suit daily computer work.
Project and procurement fit	Appropriate for tenant fit-outs and staff seating requiring swivel mobility, lumbar contact, caster movement and a 120 kg user-load target.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TSK-MSH-GRY-50F

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TSK-MSH-GRY-50F

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TSK-MSH-GRY-50FOpen Export Tool

Quick Actions

Post an RFQ

Product Description

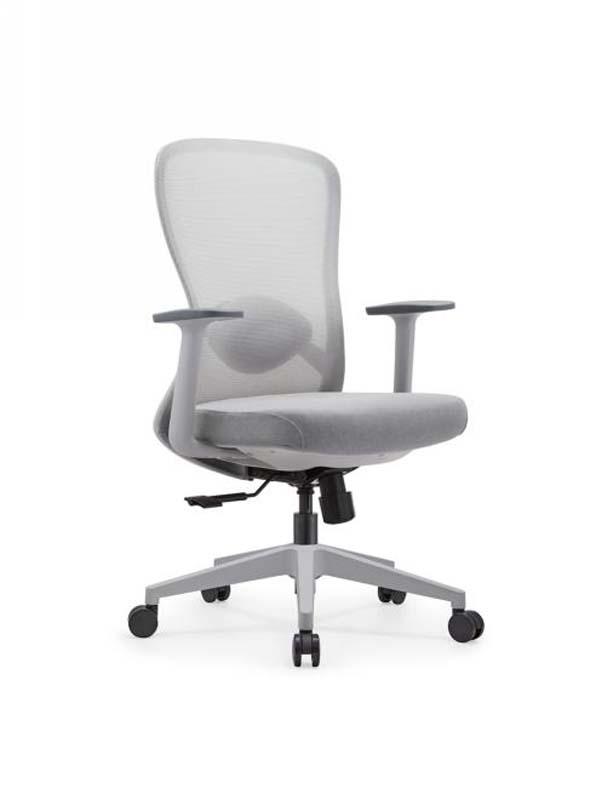

The Mid-Back Light Gray Mesh Swivel Task Chair with Fixed T-Arms is a practical office seating solution for daily desk-based work. Its coordinated light gray finish gives the chair a clean, understated appearance, while the mid-height back, compact fixed arms, and five-star caster base create a familiar task-chair profile suited to both commercial and residential workspaces. The model is supplied unbranded under TSK-MSH-GRY-50F. Visually, the chair combines a light gray woven mesh back with a fabric-upholstered padded seat and matching molded polymer components. The backrest uses mesh suspension over a sculpted polymer outer frame, providing a structured, breathable surface with an integrated curved lumbar pad positioned to contact the lower back. The lumbar support is fixed rather than independently adjustable. Fixed light gray polymer T-arms frame the seat and include dark gray padded contact pads, with 540 mm of clear width between the armrests. The light gray five-star base, made from molded nylon or glass-filled polymer, is paired with a black gas lift and black twin-wheel casters. The seat is upholstered in light gray woven fabric over molded cushioning. It features an 80 mm high-resilience polyurethane cushion on a load-bearing board, with a finished seat cushion thickness of 90 mm and foam density specified as 45 kg/m³. The backrest padding thickness is 70 mm, and the lumbar support zone height is 240 mm. Under the seat, a black painted steel center-tilt mechanism provides the chair’s movement and hardware structure. Functionality is focused on core task-chair needs. A pneumatic seat-height lift offers a 100 mm stroke through the visible right-side lever, allowing users to set seat height relative to the desk. The center-tilt mechanism supports a rearward backrest recline to 15 degrees, with tension or lock hardware visible beneath the seat. Swivel movement and five dual-wheel casters enable omnidirectional rolling on smooth office floors. The recommended user weight capacity is 120 kg, while the chair itself has a net weight of 13.5 kg. This chair is appropriate for individual desks, open-plan bench layouts, home offices, tenant fit-outs, and staff seating projects where swivel mobility, caster movement, and consistent lumbar contact are required. Its light gray mesh and fixed arms fit environments seeking a neutral, compact visual style without a prominent brand identity. Procurement teams should plan for one set supplied across two cartons, with packaged gross weight of 23 kg per set and a reference assembly time of 40 minutes per set. The reference carton dimensions are 850 by 420 by 720 mm, carton volume is 0.26 m³ per set, and indicative loading is 135 sets in a 20GP container at 85 percent space utilization. Durability targets include 100,000 caster rolling cycles, 100,000 gas-lift height cycles, and 120,000 back-frame cyclic load tests; the static seat verification load is 660 kg.

Mid-Back Light Gray Mesh Swivel Task Chair with Fixed T-Arms Specifications
