PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 650 × 1300 mm
Backrest height	720 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Static seat proof load	450 kg
Caster rolling durability target	100000 cycles
Gas-lift cycle life target	100000 height-adjustment cycles
Seat foam thickness	80 mm
Seat foam density	45 kg/m3
Back mesh tensile verification target	120 N warp and weft
Recommended user height range	1900 mm
Chair net weight reference	18.5 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest suspension	Light gray flexible horizontal-mesh fabric over a contoured gray plastic outer frame
Seat upholstery	Orange woven textile cover over molded cushion foam
Seat cushion	80 mm molded polyurethane foam with contoured waterfall front
Seat underside	Gray molded structural seat shell with black metal synchro-tilt mechanism housing
Armrests	Gray rigid molded arm posts with flat dark gray padded contact pads
Headrest	Curved gray mesh-covered padded headrest on a bracket above the back

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 80 mm travel, operated by the visible right-side lever and swiveling 360 degrees around the center column.
Back recline	Synchro-tilt mechanism with 15-degree back recline and proportional seat movement; tension is adjustable through the visible under-seat control.
Locking control	Multi-position tilt lock engaged by the under-seat lever, with upright and reclined working positions for task or focus use.
Mobility	Five dual casters provide rolling movement on hard floors or low-pile carpet and allow a 680 mm turning radius.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	680 x 650 x 860 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workspace	Open-plan offices, home offices and workstation benches for users 1900 mm tall, selected because the high back, headrest and recline support full-day task work.
Procurement configuration	Suitable for individual or bulk staff seating with orange accent seats and gray frames; specify fabric abrasion, gas-lift certificate and caster floor type before purchase.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-HBM-OR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-HBM-OR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-HBM-OR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

The ERG-HBM-OR-01 is an unbranded high-back ergonomic office chair defined by a gray mesh back, orange woven-fabric seat, and coordinated gray frame. Its tall backrest rises to support the upper back and is topped by a curved, gray mesh-covered padded headrest mounted on a bracket. The chair presents a modern task-seating profile, with a contoured gray plastic outer frame, molded structural seat shell, rigid gray arm posts, and flat dark gray padded arm pads. The five-star base is available in nylon or painted metal and is fitted with black twin-wheel casters, giving the chair a practical commercial appearance suited to neutral interiors with an orange accent. Construction pairs a light gray flexible horizontal-mesh back suspension with an upholstered seat. The orange woven textile covers a molded polyurethane cushion with a contoured waterfall front; the finished seat cushion is 90 mm thick, with 80 mm molded foam at 45 kg/m3 density. The backrest includes 70 mm of padding and a 240 mm high lumbar support zone. Beneath the seat, a black metal synchro-tilt mechanism is housed in the gray molded shell. Overall dimensions are 670 x 650 x 1300 mm, with 540 mm clear width between the armrests. The recommended user weight capacity is 150 kg, while the static seat proof load is 450 kg. Functionality is centered on adjustable task support. A right-side lever controls the pneumatic seat-height lift, which provides 80 mm of travel, while the seat and upper assembly swivel 360 degrees around the center column. The synchro-tilt mechanism allows 15 degrees of back recline with proportional seat movement, and an under-seat control adjusts tilt tension. A multi-position tilt lock supports upright and reclined working positions. Five dual casters provide mobility on hard floors or low-pile carpet, with a 680 mm turning radius. Durability targets include 100,000 caster rolling cycles, 100,000 gas-lift height-adjustment cycles, and back mesh tensile verification of 120 N in warp and weft. The chair is appropriate for open-plan offices, home offices, and workstation benches, particularly where full-day task work is required. Its high back, headrest, and recline make it suitable for users up to 1900 mm tall. The gray frame and orange seat also work as a coordinated accent in individual or bulk staff seating programs. For procurement, allow assembly time of 40 minutes per set. Each set is supplied in two cartons with a packaged gross weight of 23 kg and total carton volume of 0.26 m3. Buyers should specify fabric abrasion requirements, gas-lift certification, and caster floor type before purchase to match flooring conditions and project compliance needs.

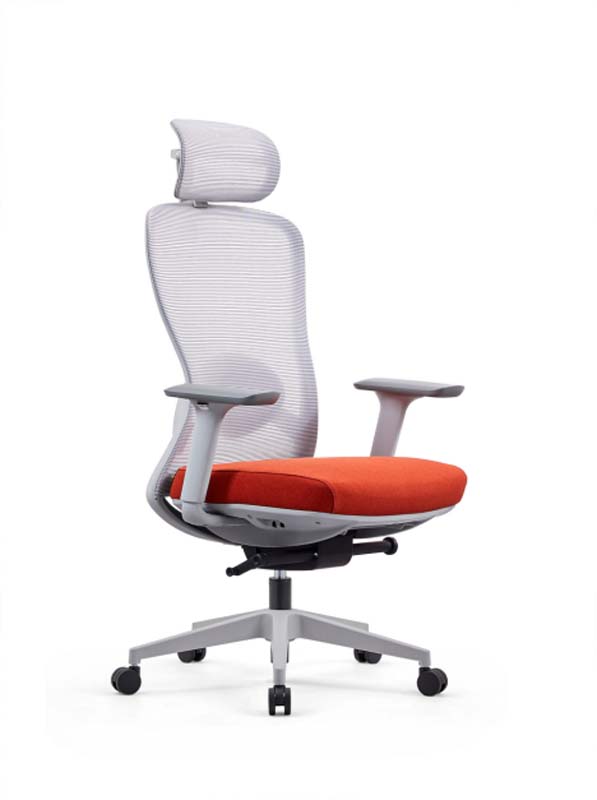

High-Back Mesh Ergonomic Office Chair with Headrest and Orange Seat Specifications
