PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 620 × 1020 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	13.5 kg
Static base load target	500 kg
Seat impact durability target	100000 cycles
Caster rolling durability target	100000 cycles
Gas-lift cycle durability target	100000 cycles
Backrest recline range	95 to 115 degrees
Suitable user body height	175 cm
Color options visible	2 colors
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Red flexible mesh fabric tensioned within a black molded outer frame
Seat upholstery	Black woven fabric or mesh-faced padded seat with rounded molded edge
Seat cushion	Molded foam cushion over a structural seat pan
Armrests	Black molded fixed T-shaped arm supports with integrated flat pads
Gas lift	Chrome-plated telescopic steel gas cylinder with black tilt adjustment actuator
Five-star base	Polished die-cast aluminum radial five-star base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift operated by the visible right-side lever, with a 100 mm engineering stroke
Recline control	Center tilt mechanism allows back movement to 115 degrees and returns by tension control
Swivel movement	360-degree swivel around the gas-lift centerline for workstation access
Mobility	Five twin-wheel casters provide rolling movement on hard floors and low-pile carpet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	680 x 630 x 340 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Open-plan desks, computer workstations and administrative seating where breathable red mesh back support is required
Meeting or training area use	Rolling task seating for hot desks, project rooms and shared workpoints

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TSK-MB-RMESH-BLK-FA

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TSK-MB-RMESH-BLK-FA

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TSK-MB-RMESH-BLK-FAOpen Export Tool

Quick Actions

Post an RFQ

Product Description

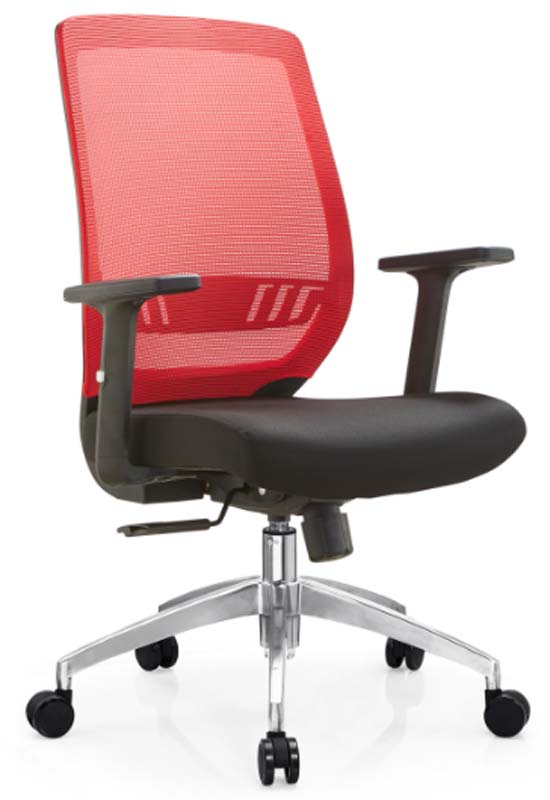

The Mid-Back Red Mesh Swivel Task Chair with Fixed Armrests is a practical office task chair defined by a red breathable mesh back, a black padded seat, and a polished aluminum five-star base. Its contrasting red-and-black appearance gives standard workstations a clear visual accent, while the mid-height back and fixed T-shaped armrests create a structured, upright seating profile. The red flexible mesh is tensioned within a black molded outer frame, and the black seat features a rounded molded edge with a woven fabric or mesh-faced upholstered surface. The fixed black molded armrests include integrated flat pads and leave a clear width of 540 mm between them, supporting a neat layout for desk-facing work. Comfort is built around a 90 mm molded foam seat cushion over a structural seat pan, a 70 mm padded backrest section, and a 240 mm lumbar support zone. The armrests are fixed rather than adjustable, which simplifies operation and helps maintain a consistent position at shared desks. A chrome-plated telescopic steel gas cylinder provides seat-height adjustment through a visible right-side lever, with a 100 mm engineering stroke. The center tilt mechanism allows the backrest to recline to 115 degrees and uses tension control to return the chair toward its upright position. Users can also rotate through a full 360-degree swivel around the gas-lift centerline, making it easier to reach adjacent work areas without moving the base. Mobility is provided by five black nylon twin-wheel casters mounted to the polished die-cast aluminum radial base. The casters are intended for rolling on hard floors and low-pile carpet, while the five-star base contributes a stable, professional foundation. The chair has a recommended user weight capacity of 120 kg and a net weight of 13.5 kg. Durability targets include a 500 kg static base load, 100000 seat-impact cycles, 100000 caster-rolling cycles, and 100000 gas-lift cycles. This model is suited to open-plan offices, computer workstations, administrative seating, hot desks, project rooms, meeting spaces, training areas, and shared workpoints where breathable back support and rolling mobility are needed. It can also serve as a distinct home-office chair in residential settings that use a commercial-style desk. Procurement planning should account for unbranded supply, model TSK-MB-RMESH-BLK-FA, delivery as one set across two cartons, a packaged gross weight of 23 kg per set, a carton volume of 0.26 m³ per set, and a reference assembly time of 40 minutes per set. Buyers should also verify floor surface compatibility, fixed-arm clearance, preferred upholstery appearance, and the red mesh finish against the intended interior scheme.

Mid-Back Red Mesh Swivel Task Chair with Fixed Armrests Specifications
