PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1050 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested user weight capacity	120 kg
Net weight reference	15 kg
Static base load reference	500 kg
Seat foam density	45 kg/m3
Back mesh tensile verification target	800 N
Caster rolling durability target	100000 cycles
Gas-lift cycles target	100000 cycles
Seating capacity	1 person
Warranty period	3 years
Color options	1 visible gray colorway

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support fabric	Gray breathable woven mesh over a contoured polymer back frame
Seat upholstery	Dark gray woven fabric over a padded cushion and molded seat shell
Seat cushion	80 mm polyurethane foam pad with rounded waterfall front
Armrests	Molded light-gray polymer supports with flat polymer pads and vertical adjustment joint
Back frame	Molded gray polymer outer frame with flexible mesh suspension
Gas lift and mechanism	Black painted steel gas-lift column with multi-lever steel control mechanism

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises and lowers the seat through a 100 mm stroke between 440 mm and 540 mm
Back recline	Under-seat tilt mechanism allows a 12-degree rearward recline with tension control
Swivel movement	360-degree swivel around the central gas-lift column
Mobility	Five twin-wheel casters provide rolling movement and radial turning on hard floors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Workstation and office use	Suited to individual desks, open-plan seating and shared workpoints due to rolling mobility, swivel and lumbar-shaped back
Meeting and study spaces	Suitable for conference rooms, home studies and hot-desk areas needing a compact gray mid-back task chair

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TSK-MESH-GY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TSK-MESH-GY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TSK-MESH-GY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

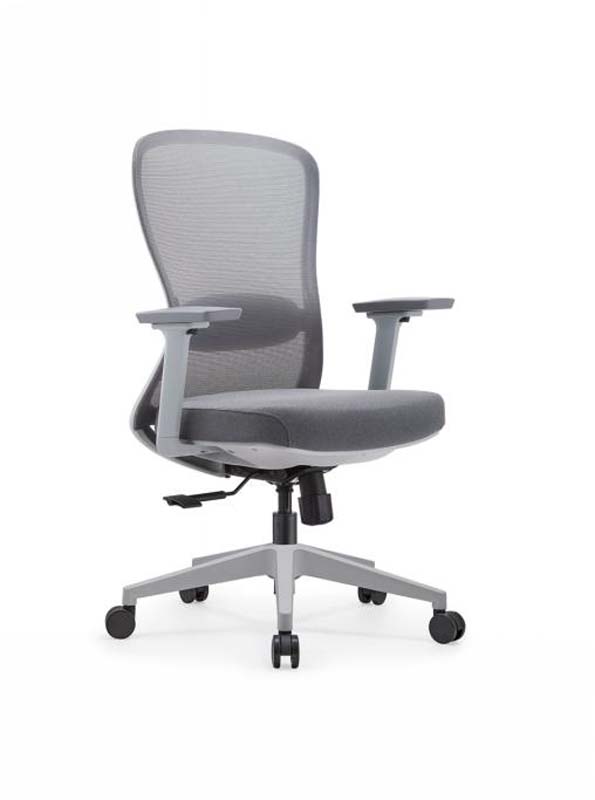

The TSK-MESH-GY-01 is an unbranded mid-back gray mesh swivel task chair designed for practical daily office seating. Its visual character is understated and functional: a gray breathable woven mesh back is set within a contoured molded polymer frame, paired with a dark gray upholstered seat, light-gray molded armrests, and a black gas-lift column. The five-star base and twin-wheel casters give the chair a familiar task-chair profile, while the neutral gray finish supports coordinated commercial and home interiors. Overall dimensions are 650 by 650 by 1050 millimeters, with a 540-millimeter clear width between the armrests and a compact footprint suited to individual workpoints. The back uses flexible mesh suspension over the molded frame and includes a 240-millimeter-high lumbar support zone with 70 millimeters of backrest padding thickness. The seat features dark gray woven fabric over a padded cushion and molded seat shell. Its cushion uses an 80-millimeter polyurethane foam pad with a rounded waterfall front, and the listed finished seat cushion thickness is 90 millimeters. Seat foam density is 45 kilograms per cubic meter. Armrests are molded light-gray polymer supports with flat pads and a vertical adjustment joint, while the base structure is molded polymer. Mobility is provided by five black twin-wheel casters intended for rolling movement and radial turning on hard floors. The pneumatic lever adjusts seat height through a 100-millimeter stroke, from 440 to 540 millimeters. An under-seat tilt mechanism permits 12 degrees of rearward recline with tension control, and the chair rotates 360 degrees around the central gas-lift column. A multi-lever steel control mechanism supports these adjustments. Reference performance values include a suggested user weight capacity of 120 kilograms, a net weight of 15 kilograms, a static base load reference of 500 kilograms, an 800-newton back mesh tensile verification target, and 100,000-cycle targets for both caster rolling durability and gas-lift operation. The chair is appropriate for individual desks, open-plan seating, shared workpoints, conference rooms, home studies, and hot-desk areas where a gray mid-back task chair is required. Procurement planning should note that one set ships in two cartons, with packaged gross weight of 23 kilograms and reference carton volume of 0.26 cubic meter per set. Reference assembly time is 40 minutes per set, and indicative loading is 135 sets in a 20-foot general-purpose container at 85 percent space utilization.

Mid-Back Gray Mesh Swivel Task Chair with Height-Adjustable Arms Specifications
