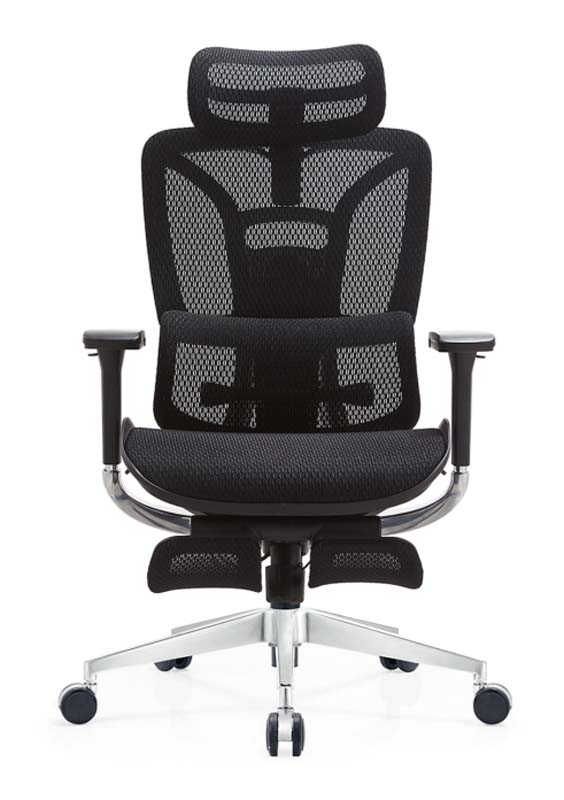

Product supplierBlack High-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Arms, Black woven mesh-textured fabric over molded cushioning
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 680 × 680 × 1320 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 150 kg | |
|---|---|---|
| Net weight | 21 kg | |
| Gas-lift dynamic load rating | 150 kg | |
| Base static load verification target | 1134 kg | |
| Caster rolling durability target | 100000 cycles | |
| Seat impact durability target | 100000 cycles | |
| Backrest cyclic load target | 120000 cycles | |
| Recommended user height range | 190 cm | |
| Fabric abrasion acceptance target | 50000 Martindale cycles | |
| Warranty target | 5 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat upholstery | Black woven mesh-textured fabric over molded cushioning | |
|---|---|---|
| Back and headrest suspension | Black flexible mesh stretched over a black engineered-polymer frame | |
| Lumbar assembly | Forward mesh lumbar panel attached to contoured central polymer spine | |
| Seat cushion | Molded foam seat pad with 60 mm target thickness and 45 kg/m3 target density | |
| Armrests | Black padded arm pads on black vertical supports with polished metal side brackets | |
| Base and frame | Polished aluminum-alloy five-star base with chrome-plated central column |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat height adjustment | Pneumatic lever raises or lowers the seat over an 80 mm stroke to a maximum height of 540 mm | |
|---|---|---|
| Synchronized recline | Seat and back move in a synchronized ratio, with back travel to 125 degrees and multi-position lock | |
| Backrest tension control | Under-seat rotary control adjusts recline resistance for users up to 150 kg | |
| Headrest positioning | Curved mesh headrest provides 100 mm vertical adjustment and angle rotation for neck support |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Gross weight per carton | 25 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary workspace | Open-plan offices, home offices and focus rooms requiring 8 hour task seating | |
|---|---|---|
| Procurement configuration | Suitable as a single executive chair or in batches for workstation refreshes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1 suitability | Office chair dimensional safety reference for task seating geometry | |
|---|---|---|
| EN 1335-2 suitability | Office chair safety, strength and durability reference for structural acceptance | |
| EN 1335-3 suitability | Office chair test-method reference for static, fatigue and impact verification | |
| EN 1021-1 suitability | Upholstery cigarette ignition test reference when fire specification is required |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 suitability | Applicable standards and test results require confirmation | |
|---|---|---|
| ANSI/BIFMA e3 suitability | Furniture sustainability, material and chemical-content reference if corporate procurement requires it |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.3 suitability | Furniture mechanical test reference for chair strength and stability in commercial procurement | |
|---|---|---|
| GB 17927 suitability | Upholstered furniture anti-destructive ignition reference if local fire acceptance is required |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.3 suitability: Furniture mechanical test reference for chair strength and stability in commercial procurement; 2. GB 17927 suitability: Upholstered furniture anti-destructive ignition reference if local fire acceptance is required; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
