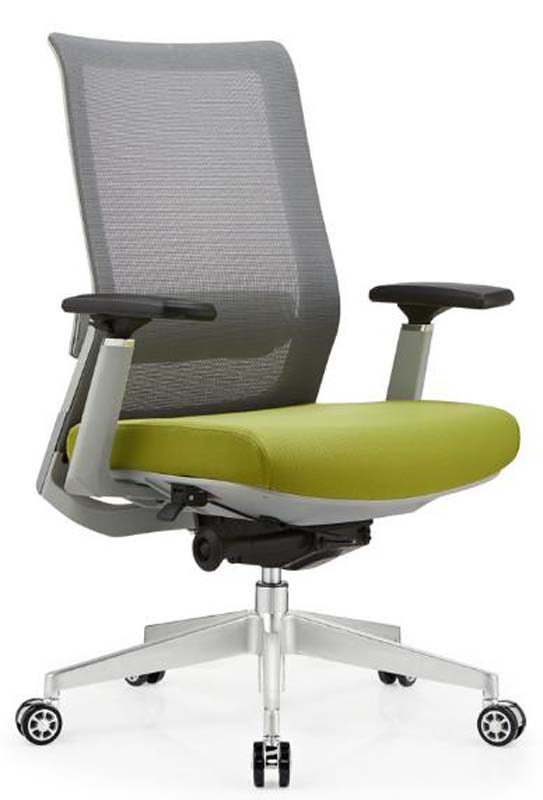

Product supplierMesh Ergonomic Task Chair with Green Upholstered Seat and Fixed Padded Arms, Gray elastomeric mesh stretched over a rigid perimeter frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 660 × 680 × 1080 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight | 136 kg | |
|---|---|---|
| Static seat verification load | 900 kg | |
| Backrest cyclic durability | 120,000 cycles | |
| Gas-lift lift cycle service target | 100,000 cycles | |
| Seat foam density | 45 kg/m3 molded polyurethane | |
| Back mesh tensile panel service target | 120,000 flex cycles | |
| Caster rolling durability | 100,000 cycles over hard floor and carpet test path | |
| Net weight | 17.5 kg | |
| Seat foam thickness | 70 mm center, 55 mm front edge | |
| Foam rebound value | 42% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest support fabric | Gray elastomeric mesh stretched over a rigid perimeter frame | |
|---|---|---|
| Seat upholstery | Green woven fabric over contoured polyurethane foam | |
| Back frame | Gray painted steel or glass-filled nylon outer frame with angular side supports | |
| Arm pads | Black polyurethane padding on rigid arm supports | |
| Arm support structure | Satin-gray metal uprights with black upper brackets | |
| Seat mechanism and under-seat shell | Black steel tilt mechanism with gray molded seat carrier |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic seat-height lift with 100 mm travel, activated by the right under-seat lever | |
|---|---|---|
| Back recline | Synchronized tilt mechanism allowing 19-degree backrest recline with matched seat movement | |
| Tilt lock | Multi-position lock retaining the back at 93, 100, 106 or 112 degrees | |
| Tilt tension | Rotary tension knob adjusts backward resistance for users up to 136 kg |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 680 x 660 x 380 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Workstation applications | Open offices, private offices, hot desks and home offices where an upright mesh task chair is required | |
|---|---|---|
| User and floor compatibility | Designed for users up to 136 kg on hard floors or low-pile carpet with twin-wheel casters |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
