PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1130 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Net weight reference	16 kg
Seat foam-equivalent load layer	50 mm thick elastic mesh suspension
Back tilt range	93 to 118 degrees
Tilt lock positions	3 positions
Gas-lift vertical stroke	100 mm
Caster rolling durability target	100000 cycles
Gas-lift cyclic durability target	100000 height-adjustment cycles
Base static load verification target	1134 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back upholstery	Gray woven polyester mesh stretched over a molded polymer frame
Seat upholstery	Gray woven mesh panel over an elastic suspension and molded seat carrier
Back support structure	Dark polymer Y-shaped internal support visible through the mesh
Arm pads	Black or dark gray molded polymer contact pads with light gray support posts
Arm supports	Light gray molded polymer or nylon-composite posts with side adjustment hardware
Seat shell and mechanism cover	Light gray molded polymer housing beneath the mesh seat

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swivel function	360-degree swivel around the central gas-lift axis
Seat-height adjustment	Pneumatic lift with 100 mm travel operated by the visible side paddle
Back recline and lock	Synchronized tilt from 93 to 118 degrees with 3 lockable positions
Tilt tension control	Rear rotary knob adjusts spring resistance for user body weight

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Workstation application	Open-plan offices, home offices, and shared workstations requiring breathable all-day seating
User fit	Suited to users in the 540 mm seat-height range under standard 760 mm desks

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ETC-MESH-GY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ETC-MESH-GY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ETC-MESH-GY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

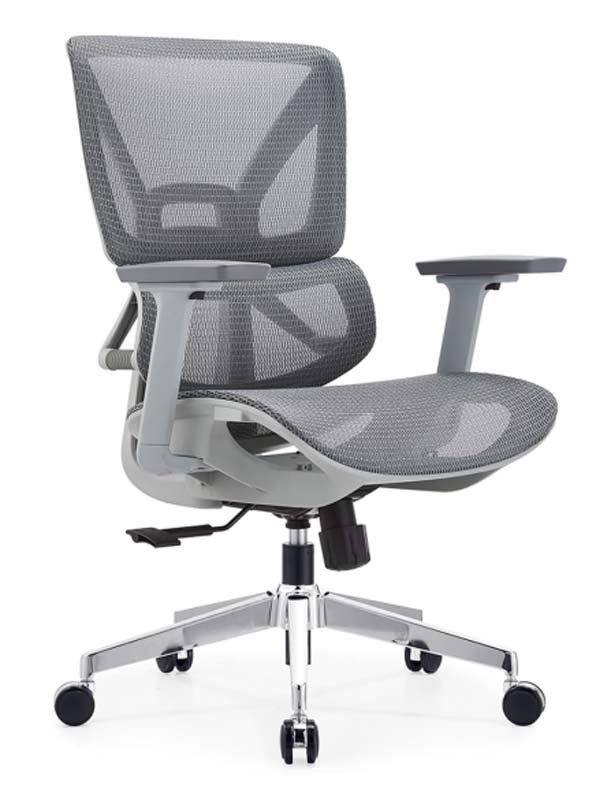

The Gray Mesh Ergonomic Task Chair with Adjustable Arms and Polished Aluminum Base is a practical office seating solution with a clean, breathable appearance. Its gray woven mesh covers both the seat and back, creating a light visual profile while allowing the dark polymer Y-shaped internal support to remain visible through the backrest. The molded polymer frame, light gray seat housing, and light gray arm support posts provide a coordinated neutral finish, contrasted by black or dark gray arm pads and black nylon twin-wheel casters. The polished aluminum five-star base gives the chair a refined professional look and supports a central swiveling layout suited to workstation use. Construction balances molded components, metal support, and flexible mesh. The back uses gray woven polyester mesh stretched over a molded polymer frame, while the seat combines a gray woven mesh panel with an elastic suspension and molded seat carrier. The seat includes a 50 mm thick elastic mesh suspension load layer, a finished cushion thickness of 90 mm, and backrest padding thickness of 70 mm. A 240 mm lumbar support zone is integrated into the back structure. The chair rests on a polished aluminum five-star base with a steel gas lift and black nylon twin-wheel casters. It has a recommended user weight capacity of 136 kg and a net weight reference of 16 kg. Adjustability is designed for everyday task work. The seat rotates through 360 degrees around the central gas-lift axis, and the visible side paddle controls pneumatic height adjustment with 100 mm of travel. The synchronized back tilt moves from 93 to 118 degrees and offers three lockable positions, while a rear rotary knob adjusts tilt tension to suit different user body weights. The arms include side adjustment hardware, and the clear width between armrests is 540 mm. The caster rolling durability target is 100000 cycles. This model is appropriate for open-plan offices, home offices, and shared workstations that require breathable seating for extended use. It is suited to users in the 540 mm seat-height range when used with standard 760 mm desks. For procurement, the chair is supplied unbranded under model ETC-MESH-GY-01 as one set in two cartons, with a reference assembly time of 40 minutes per set. Packaged gross weight is 23 kg per set, carton dimensions are 850 by 420 by 720 mm, and carton volume is 0.26 cubic meters per set. The indicative 20GP loading is 135 sets at 85 percent space utilization.

Gray Mesh Ergonomic Task Chair with Adjustable Arms and Polished Aluminum Base Specifications
