PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	630 × 630 × 1180 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	135 kg
Chair net weight	15.5 kg
Seat foam density	45 kg/m3
Seat foam resilience	38%
Back mesh tensile rating	250 N
Fabric abrasion resistance	50,000 Martindale cycles
Caster rolling durability	100,000 cycles
Gas lift cyclic durability	100,000 height-adjustment cycles
Base static load verification	500 kg downward static load
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support surface	Gray flexible woven mesh stretched within a light gray molded frame
Seat cushion	Gray woven fabric over 80 mm molded high-resilience polyurethane foam
Arm and back frame	One-piece light gray molded polymer loop frame with integrated fixed armrests
Seat underside and tilt mechanism	Black stamped-steel multi-position mechanism with visible adjustment lever and tension knob
Height column	Black 50 mm pneumatic gas lift with telescopic steel tube and dark collar
Five-star base	Light gray molded nylon or nylon-composite five-star base with five splayed legs

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises and lowers the seat through a 100 mm stroke from 440 to 540 mm
Backrest recline	Center-tilt mechanism reclines the seat and back together to 15 degrees with lockable positions
Tilt tension control	Rear rotary knob adjusts recline resistance for user body weight up to 135 kg
Mobility	Five dual-wheel casters provide rolling movement and a 630 mm stable support footprint

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	660 x 600 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suitable for open-plan desks, private offices and home offices where users require breathable back support, swivel access and rolling mobility.
Commercial seating project	Recommended for task-seating batches requiring fixed arms, neutral gray upholstery, standard 540 mm maximum seat height and hard-floor casters.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-HB-GY-WF01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-HB-GY-WF01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-HB-GY-WF01Open Export Tool

Quick Actions

Post an RFQ

Product Description

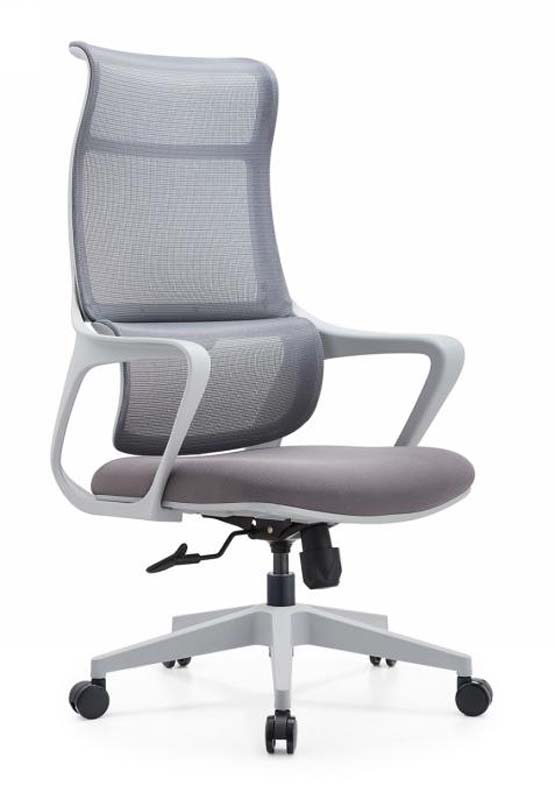

The Gray Mesh High-Back Swivel Office Task Chair with Fixed Arms is an unbranded ergonomic task seating solution, model OC-MESH-HB-GY-WF01, designed for everyday desk use in professional and residential settings. Its neutral gray palette and structured high-back form give it a clean, understated appearance that integrates readily with modern workstations and open-plan interiors. Visually, the chair is defined by a gray woven mesh back set within a light gray molded polymer frame. The same frame forms a continuous loop with integrated fixed armrests, creating a unified back and arm silhouette rather than a layered, multi-component look. The gray fabric seat balances the open mesh back, while the black steel mechanism, gas lift, and caster base provide a restrained technical contrast. The five splayed legs of the light gray nylon or nylon-composite base establish a stable 630 mm footprint, and twin-wheel casters complete the mobile office-chair profile. Overall dimensions are 630 x 630 x 1180 mm, with 540 mm of clear width between the armrests. Construction combines breathable support with cushioned seating. The backrest uses flexible woven mesh rated at 250 N tensile strength and includes a 240 mm high lumbar support zone, with 70 mm backrest padding thickness. The seat combines gray woven fabric over molded high-resilience polyurethane foam; the finished cushion is 90 mm thick, and the specified seat foam density is 45 kg/m3 with 38% resilience. The fabric is rated for 50,000 Martindale abrasion cycles. Beneath the seat is a black stamped-steel multi-position tilt mechanism with a visible adjustment lever and tension knob. Height adjustment is delivered by a black 50 mm pneumatic gas lift with a telescopic steel tube, while the dual-wheel casters offer 100,000-cycle rolling durability. Recommended user weight capacity is 135 kg, and the chair net weight is 15.5 kg. Functional controls support regular task work. A pneumatic lever adjusts seat height through a 100 mm stroke, from 440 to 540 mm. The center-tilt mechanism reclines the seat and back together to 15 degrees and provides lockable positions, while a rear rotary knob lets users adjust recline resistance according to body weight. Swivel movement and rolling casters support easy access around a workstation. The chair is suited to open-plan offices, private offices, home offices, and commercial task-seating projects that call for fixed arms, breathable back support, neutral upholstery, and hard-floor mobility. Procurement teams should allow for assembly, referenced at 40 minutes per set, and note that one set ships in two cartons with a packaged gross weight of 23 kg and carton volume of 0.26 m3 per set. Fixed arms should be confirmed against desk clearance requirements, particularly where chairs must tuck fully beneath work surfaces.
