PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 670 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight reference	18 kg
Seat load distribution foam density	45 kg/m3
Back mesh tensile rating	1200 N
Caster rolling durability	100000 cycles
Gas-lift durability	100000 height cycles
Seat-slide static load test target	950 N
Backrest tilt durability	120000 cycles
Typical user body-height fit	1900 mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Black flexible woven mesh stretched over a contoured polymer outer frame
Seat cushion	Charcoal woven fabric over molded polyurethane foam
Lumbar zone	Curved elastic mesh support integrated into the back panel
Armrests	Rigid black polymer supports with soft-touch polymer pads
Seat mechanism	Black stamped-steel tilt mechanism with polymer cover and side adjustment lever
Gas lift	Chrome-plated steel telescopic cylinder with black polymer shroud

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with a 90 mm stroke controlled by the right under-seat lever
Recline system	Synchronized seat-and-back tilt with 18-degree recline and multi-position lock
Back tension control	Rotary rear knob adjusts recline resistance for user body weight
Headrest adjustment	Padded headrest moves through 90 mm vertically and pivots 25 degrees for neck support

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation	Suitable for 8-hour desk work at standard 760 mm office desks due to lumbar mesh, headrest and adjustable seat height
Shared professional workspace	Suited to open offices, home offices and meeting-focused task areas where a swivel, rolling, high-back chair is required

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERC-MESH-HB-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERC-MESH-HB-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERC-MESH-HB-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

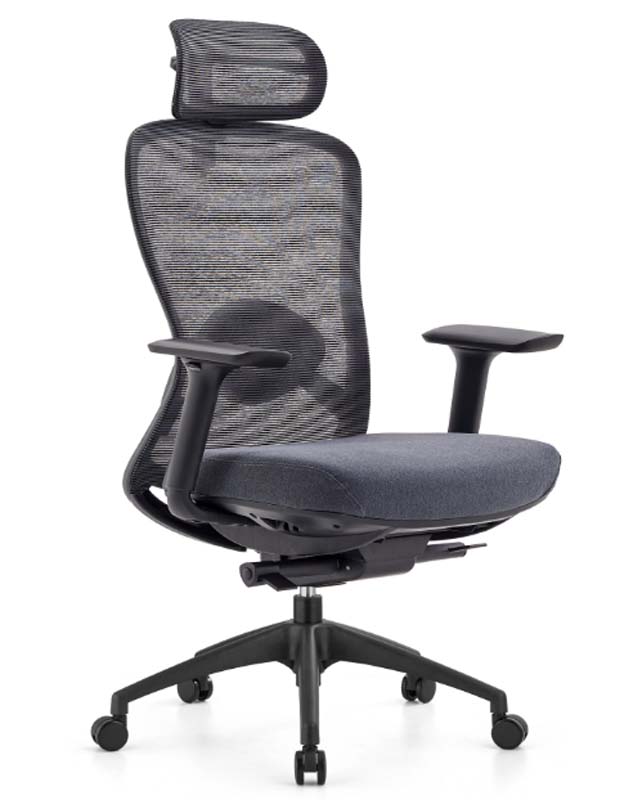

The ERC-MESH-HB-01 is an unbranded high-back ergonomic office chair designed for users seeking structured support, breathable contact surfaces, and adjustable posture control in a professional task chair. Its appearance combines a black flexible woven mesh back with a charcoal woven-fabric seat, black polymer armrests and frame components, and a black five-star base. The contoured backrest rises to a padded headrest, while the integrated curved elastic mesh lumbar zone creates a defined support area in the lower back. The layout follows a conventional swivel task-chair form, with dual-wheel casters beneath the five-star base and side controls positioned under the seat. The backrest uses black flexible woven mesh stretched over a contoured polymer outer frame, balancing visual lightness with a supportive seating surface. The seat combines charcoal woven fabric over molded polyurethane foam, with a finished cushion thickness of 90 mm and foam density specified at 45 kg/m3. The backrest padding thickness is 70 mm, and the lumbar support zone height is 240 mm. Armrests are made from rigid black polymer supports with soft-touch polymer pads, with 540 mm clear width between them. The mechanism uses a black stamped-steel tilt assembly with a polymer cover, paired with a chrome-plated steel telescopic gas lift and black polymer shroud. The recommended user weight capacity is 150 kg, and the chair net weight reference is 18 kg. Functional adjustment is centered on extended seated comfort. A right-hand under-seat lever operates the pneumatic seat-height lift, which has a 90 mm stroke. The synchronized seat-and-back tilt offers an 18-degree recline with multi-position lock, while a rear rotary knob changes back tension to suit the user’s body weight. The padded headrest adjusts through 90 mm vertically and pivots 25 degrees, adding neck support for high-back seating. The swivel base and dual-wheel casters support movement between desk zones, and the product is rated for 100,000 gas-lift height cycles, 100,000 caster rolling cycles, a 1,200 N back mesh tensile rating, and a 950 N seat-slide static load test target. This chair is suitable for private office workstations, open-plan professional environments, home offices, and meeting-focused task areas where a rolling high-back chair is needed. It is intended for standard 760 mm office desks and supports an 8-hour desk-work setup through its lumbar mesh, headrest, tilt control, and adjustable seat height. Procurement planning should account for delivery as one set in two cartons, with a packaged gross weight of 23 kg per set and carton dimensions of 850 by 420 by 720 mm. The reference carton volume is 0.26 cubic meters per set, the indicative loading for a 20GP container is 135 sets at 85 percent space utilization, and the reference assembly time is 40 minutes per set. Buyers should also confirm site flooring, assembly resources, and desk compatibility before installation.

High-Back Mesh Ergonomic Office Chair with Headrest Specifications
