PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 650 × 1060 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested user weight capacity	136 kg
Net weight	15.8 kg
Seat foam density	45 kg/m3
Back mesh static load	136 kg
Base static load target	500 kg
Caster rolling durability	100,000 cycles
Gas lift cycles	100,000 height-adjustment cycles
Tilt mechanism cycles	100,000 recline cycles
Fabric abrasion resistance	50,000 Martindale cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Grey flexible mesh tensioned in a dark molded polymer frame with two open support zones
Seat cushion	Dark grey woven fabric over molded foam with a rounded waterfall front
Armrests	Light grey molded polymer supports with flat dark grey polyurethane contact pads
Seat underside shell	Light grey molded polymer seat carrier with black adjustment levers
Lift and base	Chrome-plated steel five-star base with polished 50 mm gas-lift column
Casters	Black nylon twin-wheel casters with chrome mounting stems

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic right-hand lever raises and lowers the seat through 100 mm, from 440 to 540 mm
Backrest recline	Synchro-style tilt mechanism reclines the back to 18 degrees and locks in 3 positions
Tilt tension control	Under-seat rotary knob adjusts rearward resistance for users up to 136 kg
Swivel and mobility	360-degree swivel seat on five 60 mm twin casters with a 670 mm base footprint

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	680 x 620 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to individual desks and bench workstations where swivel access, caster mobility, and lumbar support are needed
Meeting and home-office use	Fits daily conference, study, and home-office seating for users up to 136 kg

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-GY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-GY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-GY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

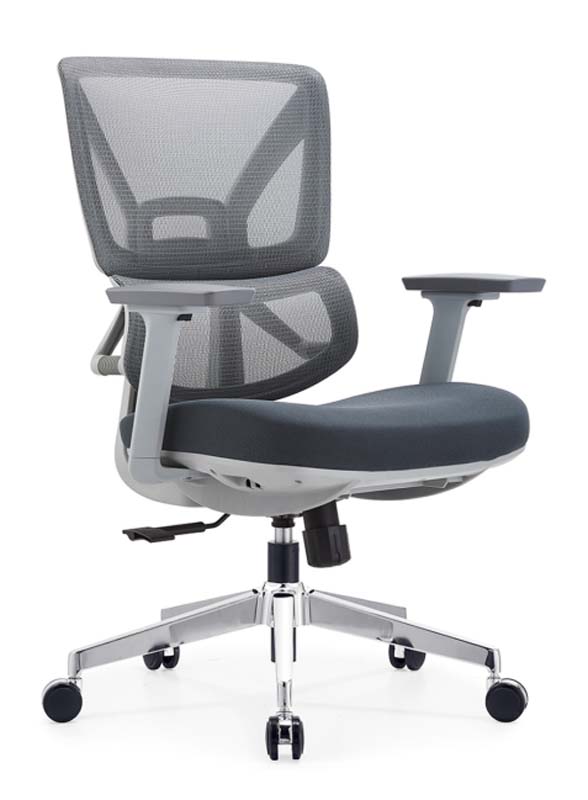

The Mid-Back Grey Mesh Ergonomic Task Chair is an unbranded office seating solution with a structured, contemporary profile suited to shared and individual work settings. Its grey flexible mesh back is tensioned within a dark molded polymer frame and divided into two open support zones, creating a breathable back surface with a defined lumbar support area. The seat uses dark grey woven fabric over molded foam, finished with a rounded waterfall front. Light grey molded polymer forms the arm supports and underside seat carrier, while flat dark grey polyurethane pads provide arm contact surfaces. Black adjustment levers, a chrome five-star base, a polished gas-lift column, and black nylon twin-wheel casters complete the visual contrast. Overall dimensions are 670 by 650 by 1060 millimeters, with 540 millimeters of clear width between the armrests. The seat cushion is 90 millimeters thick, the backrest padding is 70 millimeters thick, and the lumbar support zone is 240 millimeters high. Construction pairs the upholstered foam seat with polymer arm and seat-shell components, a chrome-plated steel base, and nylon casters. The seat foam density is 45 kilograms per cubic meter. Functional controls support regular task-chair use. A right-hand pneumatic lever adjusts seat height through 100 millimeters, from 440 to 540 millimeters. The synchro-style tilt mechanism allows the backrest to recline to 18 degrees and lock in three positions, while an under-seat rotary knob controls rearward tilt resistance. The seat swivels 360 degrees and moves on five 60 millimeter twin casters with a 670 millimeter base footprint. The suggested user weight capacity is 136 kilograms. Additional published performance values include a 136 kilogram back mesh static load, a 500 kilogram base static load target, 100,000 caster rolling cycles, and 100,000 gas-lift height-adjustment cycles. This model is appropriate for individual desks and bench workstations where swivel access, rolling mobility, and lumbar support are required. It also fits daily conference, study, and home-office seating for users within the stated weight capacity. For procurement planning, the chair is supplied as one set across two cartons, with reference packaged gross weight of 23 kilograms and reference carton volume of 0.26 cubic meter per set. The reference assembly time is 40 minutes per set, so receiving, storage, movement, and installation scheduling should allow for flat-packed delivery and on-site assembly. The product category is ergonomic office chair, model OC-MESH-GY-01.

Mid-Back Grey Mesh Ergonomic Task Chair Specifications
