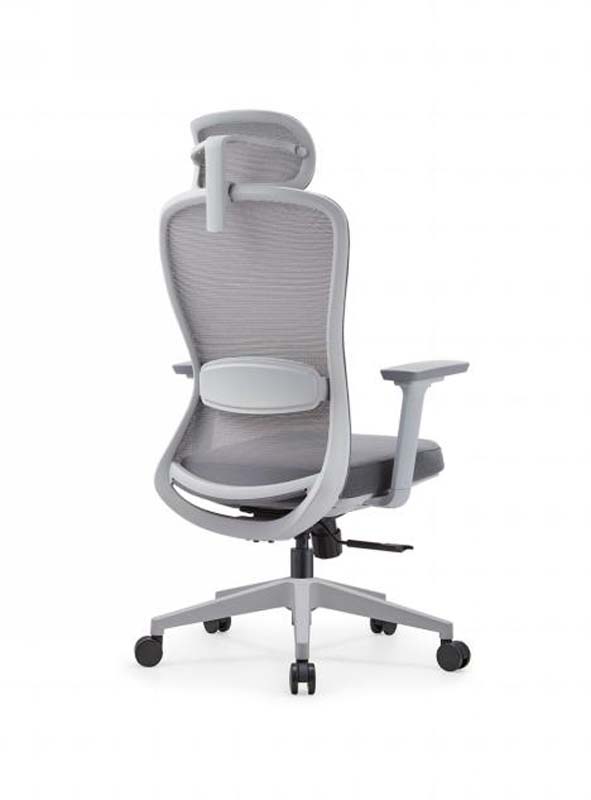

Product supplierHigh-Back Mesh Ergonomic Office Chair with Headrest, Breathable gray woven mesh tensioned over a contoured plastic frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 660 × 660 × 1290 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 136 kg | |
|---|---|---|
| Net weight | 18 kg | |
| Static base load rating | 500 kg | |
| Gas lift cycle rating | 100000 cycles | |
| Tilt mechanism cycle rating | 300000 cycles | |
| Caster rolling durability | 100000 cycles | |
| Seat impact durability | 100000 cycles | |
| Recommended user height range | 165 to 190 cm | |
| Color options | 1 color | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Back upholstery | Breathable gray woven mesh tensioned over a contoured plastic frame | |
|---|---|---|
| Seat cushion | Molded foam pad with dark gray woven fabric facing and gray side trim | |
| Outer back frame | Light gray injection-molded polymer frame with integrated side supports | |
| Armrests | Light gray fixed polymer T-arms with flat polymer pads | |
| Headrest | Gray mesh face with light gray polymer surround and vertical support bracket | |
| Lumbar support | Light gray curved polymer lumbar pad mounted at lower back center |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic seat-height lift provides 90 mm travel through the right-side lever, with 360-degree swivel | |
|---|---|---|
| Recline and lock | Synchro-tilt mechanism reclines from 95 to 125 degrees with lock and tension adjustment | |
| Lumbar support | Curved fixed-height lumbar pad applies direct lower-back pressure through the mesh | |
| Headrest support | Independent curved headrest supports the upper neck and rear head zone |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstation use | Suited to individual desk work in open offices, home offices and executive workstations due to high-back, headrest and lumbar support. | |
|---|---|---|
| Commercial seating projects | Suitable for task seating in staff zones and shared computer desks where swivel, mobility and 136 kg user capacity are required. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1 office furniture seating dimensions | Use dimensional requirements to validate seat, back and clearance fit | |
|---|---|---|
| EN 1335-2 office seating safety | Applicable standards and test results require confirmation | |
| EN 1335-3 office seating test methods | Apply specified strength, durability and stability test methods to production samples |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 office chairs | Use back, seat, base, arm, caster and stability tests for commercial-grade acceptance |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.3 furniture strength and durability | Apply seat and back strength/durability test methods to the loaded chair structure | |
|---|---|---|
| GB/T 10357.2 furniture stability | Verify rearward and sideways stability with the high back and headrest | |
| GB 17927 upholstered furniture safety | Check upholstered seat fabric and foam for applicable safety requirements |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.3 furniture strength and durability: Apply seat and back strength/durability test methods to the loaded chair structure; 2. GB/T 10357.2 furniture stability: Verify rearward and sideways stability with the high back and headrest; 3. GB 17927 upholstered furniture safety: Check upholstered seat fabric and foam for applicable safety requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
