PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1120 mm
Overall chair footprint	650 x 650 x 1120 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested user weight capacity	136 kg
Chair net weight	15.5 kg
Seat foam density	45 kg/m3
Seat foam thickness	70 mm
Back mesh fabric thickness	2.0 mm
Fabric abrasion acceptance target	50000 Martindale cycles
Gas-lift stroke	100 mm
Recommended user height range	1850 mm
Caster rolling durability target	100000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Gray woven flexible mesh tensioned in a light-gray molded polymer frame
Lumbar support	Padded light-gray polymer lumbar pad attached across the lower mesh zone
Seat	Molded cushion seat with gray mesh or mesh-faced surface and black underside shell
Armrests	Height-adjustable plastic arm posts with flat gray padded polymer arm pads
Center column	Chrome-plated steel gas lift with black telescopic sleeve
Base and casters	Polished chrome-plated metal five-star base with black nylon twin-wheel casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic gas lift raises and lowers the seat through a 100 mm stroke using the visible right-side lever.
Back recline	Synchronized tilt mechanism with a visible side lever and tension housing; published lock angle is 15 degrees.
Armrest adjustment	Adjustable-height arm posts provide 70 mm vertical travel and padded support at 220 mm above the seat.
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	Suits daily computer tasks where swivel access, lumbar support and rolling mobility are required.
Home office or study room	Compact 650 mm footprint fits a standard desk zone and supports users up to 1850 mm tall.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-GRY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-GRY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-GRY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

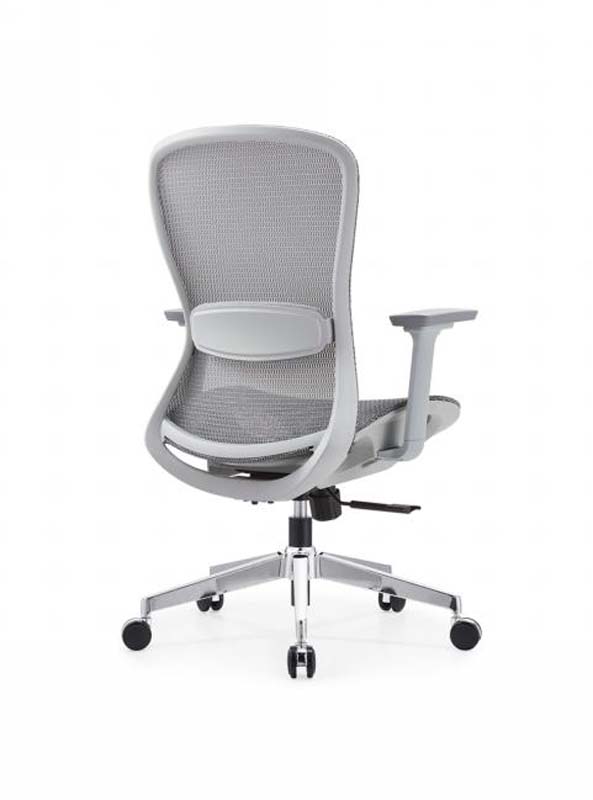

The Light Gray Mesh Ergonomic Task Chair combines a clean, professional appearance with functional support for daily desk work. Its gray woven mesh back is tensioned within a light-gray molded polymer frame, creating a breathable, visually light backrest with a padded light-gray lumbar pad across the lower support zone. The molded seat uses a gray mesh or mesh-faced surface over a black underside shell, while flat gray padded polymer arm pads and height-adjustable plastic arm posts maintain a coordinated neutral finish. A polished chrome-plated metal five-star base, chrome center column, black telescopic sleeve, and black nylon twin-wheel casters complete the chair’s structured office aesthetic. Designed as an ergonomic task chair, the model supports movement through a swivel seat, rolling casters, pneumatic seat-height adjustment, and synchronized tilt mechanism. The right-side lever controls a gas lift with 100 millimeters of vertical travel. A separate visible side lever and tension housing manage the recline function, with a published lock angle of 15 degrees and a recline reference of 125 degrees with three suggested lock positions. The armrests provide 70 millimeters of height adjustment, with padded support positioned 220 millimeters above the seat. The 240-millimeter lumbar support zone and 540-millimeter clear width between armrests contribute to a purposeful seating layout. Construction balances comfort and practicality. The finished seat cushion is 90 millimeters thick, with 70-millimeter, 45 kilogram per cubic meter seat foam; backrest padding is 70 millimeters thick, and the back mesh fabric is 2.0 millimeters thick. The chair has an overall footprint of 650 by 650 by 1120 millimeters, a net weight of 15.5 kilograms, and a suggested user weight capacity of 136 kilograms. The fabric abrasion acceptance target is 50,000 Martindale cycles. This chair is suited to open-plan office workstations where users need swivel access, lumbar support, and rolling mobility for computer-based tasks. It also fits home offices and study rooms, with its compact footprint suitable for a standard desk zone and support for users up to 1850 millimeters tall. Procurement teams should note that each set ships unbranded in two cartons, with packaged gross weight of 23 kilograms, reference carton dimensions of 850 by 420 by 720 millimeters, reference carton volume of 0.26 cubic meter, and a reference assembly time of 40 minutes. The indicative 20GP loading is 135 sets at 85 percent space utilization, useful for bulk workplace and residential project planning.

Light Gray Mesh Ergonomic Task Chair with Adjustable Arms and Chrome Base Specifications
