PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 670 × 1320 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight reference	22 kg
Static seat loading reference	450 kg
Backrest dynamic back-push reference	136 kg
Caster rolling durability reference	100000 cycles
Gas-lift cycles reference	120000 cycles
Seat foam density	45 kg/m3
Seat foam indentation hardness	65 N
Back mesh tensile strength reference	350 N
Recommended user height range	190 cm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat cushion	Fabric-faced molded foam seat, 80 mm thick at center, over a black polymer load shell
Backrest	Black flexible woven mesh stretched over a black polymer and internal steel-framed high back
Headrest	Curved black mesh panel on polymer housing with height-angle adjustment bracket
Armrests	Height-adjustable black polymer arm supports with 260 x 90 mm flat padded contact pads
Mechanism and levers	Black multi-position synchro-tilt mechanism with steel plate, polymer covers and two underside control levers
Base and lifting column	Polished aluminum five-star base, chrome-plated steel gas cylinder and black telescopic dust shroud

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Class 4 gas lift provides 90 mm vertical travel, controlled by the right-side underside lever
Synchro recline	Back and seat move synchronously through a 115-degree recline range with multi-position lock and tension control
Headrest positioning	Height-adjustable curved headrest with angle pivot supports neck posture during reclined work or breaks
Armrest adjustment	Padded arm posts provide height adjustment and a sliding pad interface for forearm alignment

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	760 x 660 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Workstation application	Suits open-plan offices, home offices and managerial workstations requiring 8-hour postural support
Rest-enabled task setting	Fits users who alternate focused work with short reclined breaks because the chair includes a sliding footrest

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-FT-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-FT-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-FT-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

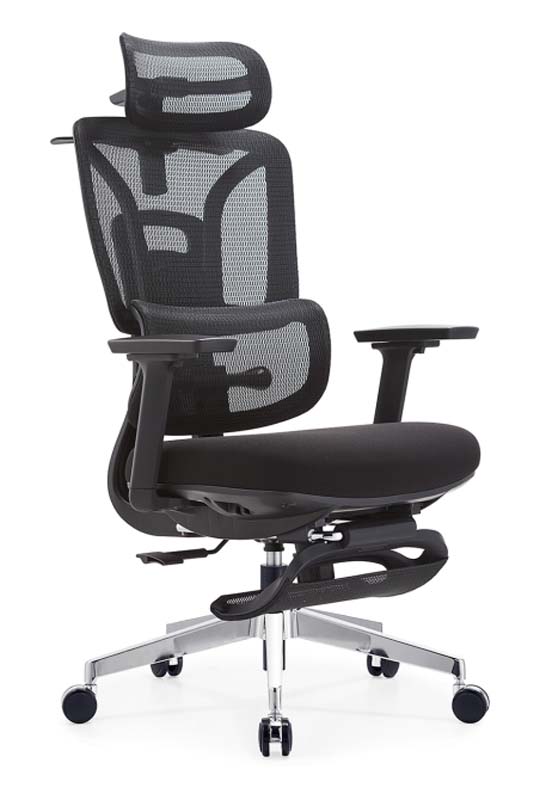

The Black Mesh Ergonomic Office Chair with Headrest and Sliding Footrest is a high-back task chair designed for settings where focused work and brief reclined rest take place at the same workstation. Its black mesh back and matching curved headrest give the chair a streamlined, commercial appearance, while the fabric-upholstered foam seat, black polymer arms and mechanism covers, polished aluminum five-star base, and chrome gas lift create a balanced contrast of dark upholstery and reflective metal. The tall back, integrated headrest, padded armrests, and extending footrest establish a supportive layout suited to users who prefer a reclined posture between periods of concentration. Construction combines flexible woven mesh stretched over a black polymer and internal steel-framed backrest with a fabric-faced molded foam seat set over a black polymer load shell. The seat cushion has a finished thickness of 90 mm and uses 45 kg/m3 foam, with 80 mm thickness at the center. Backrest padding is 70 mm thick, and the lumbar support zone is 240 mm high. The headrest uses a curved mesh panel on a polymer housing with a height and angle adjustment bracket. Arm supports are height-adjustable black polymer units with flat padded contact pads measuring 260 by 90 mm, while the multi-position synchro-tilt mechanism uses a steel plate, polymer covers, and two underside levers. The chair rests on a polished aluminum five-star base, a chrome-plated steel gas cylinder with black telescopic dust shroud, and nylon casters. Functional adjustment is centered on sustained seating comfort and posture variation. A Class 4 gas lift provides 90 mm of seat-height travel through the right-side underside lever. The synchro-tilt mechanism moves the seat and back together through a 115-degree recline range, with multi-position locking and tension control. The headrest adjusts in height and pivots in angle to support the neck during reclined work or breaks, and the arm pads offer height adjustment plus a sliding interface for forearm alignment. The sliding footrest extends the chair’s rest capability without changing its primary role as a workstation seat. This model fits open-plan offices, home offices, and managerial workstations requiring 8-hour postural support. Its neutral black finish and professional form make it appropriate for private offices, shared desk areas, executive workspaces, and residential studies. For procurement, note that the chair is unbranded, model ERG-MESH-FT-BLK-01, and supplied as one set across two cartons, with a packaged gross weight of 23 kg and reference carton volume of 0.26 m3. Installation time is referenced at 40 minutes per set. The recommended user weight capacity is 150 kg, and the clear width between armrests is 540 mm, useful for checking fit across different body types and desk arrangements. Buyers should also plan for assembly access, floor protection on sensitive surfaces, and comparison of adjustability, cushioning, and footrest requirements before volume ordering.

Black Mesh Ergonomic Office Chair with Headrest and Sliding Footrest Specifications
