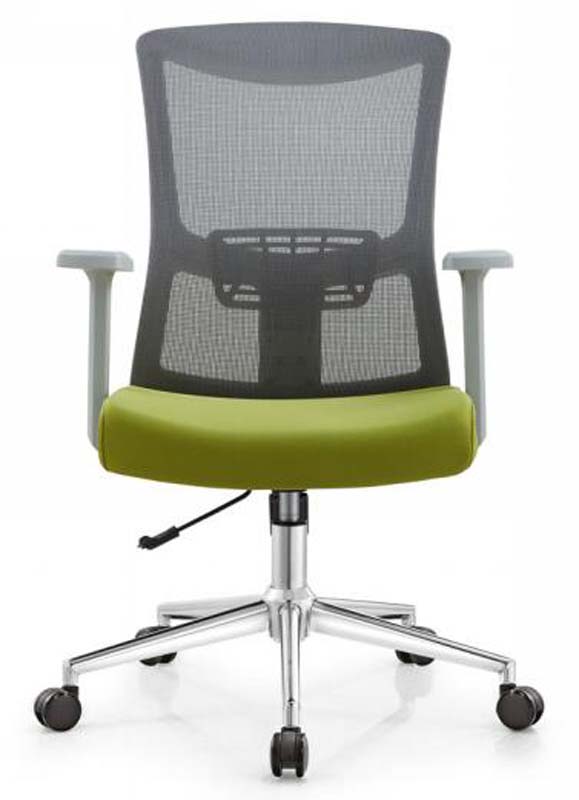

Product supplierMid-Back Mesh Swivel Task Chair with Green Upholstered Seat, Dark gray flexible mesh set in a molded mid-back frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 630 × 620 × 1040 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 120 kg | |
|---|---|---|
| Net weight | 13.5 kg | |
| Seat foam density | 45 kg/m3 | |
| Seat foam rebound | 40% | |
| Back mesh static tension acceptance | 90 kg distributed load | |
| Gas-lift class | Class 4 | |
| Gas-lift stroke | 100 mm | |
| Caster rolling durability target | 100000 cycles | |
| Base static load acceptance target | 1136 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest | Dark gray flexible mesh set in a molded mid-back frame | |
|---|---|---|
| Seat cushion | Green upholstered fabric or faux-leather cover over molded foam | |
| Seat inner support | Molded plywood or polymer seat shell with steel mounting plate | |
| Armrests | Light gray fixed T-shaped polymer pads on painted or powder-coated supports | |
| Gas lift | Chrome-plated steel telescopic gas lift with black release lever | |
| Five-star base | Polished chrome-plated steel or aluminum five-star base |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat height adjustment | Pneumatic lever raises or lowers the seat through 100 mm of travel from 440 to 540 mm. | |
|---|---|---|
| Swivel function | Central gas-lift swivel enables 360-degree rotation without moving the five-star base. | |
| Back movement | Single-lever under-seat mechanism is specified for synchronized or center tilt with a 12-degree rearward travel target. | |
| Mobility | Five black twin-wheel casters support rolling movement on hard floors and low-pile carpets. |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office workstation | Suits daily desk-based staff because it provides height adjustment, swivel access, caster mobility, and breathable mid-back support. | |
|---|---|---|
| Meeting or shared desk area | Green seat and gray mesh provide a neutral commercial appearance for hot-desks, training rooms, and visitor workstations. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
