PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	690 × 690 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight	150 kg
Static seat load verification target	680 kg for 1 hour
Back cyclic durability target	120,000 cycles
Seat-slide cyclic durability target	20,000 cycles if seat slide is supplied
Gas-lift cycles	100,000 height-adjustment cycles
Caster rolling durability	100,000 cycles on hard flooring
Seat foam density	45 kg/m3 molded polyurethane
Back mesh tensile load acceptance	700 N warp and weft
Fabric abrasion acceptance	50,000 Martindale cycles
Recommended user height range	1900 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Light gray elastic mesh tensioned over a curved polymer outer frame
Seat upholstery	Orange woven textile over a contoured foam cushion and polymer seat pan
Headrest	Light gray mesh-faced padded cushion mounted on an adjustable support
Armrests	Injection-molded light gray polymer arm supports with flat polymer pads
Under-seat mechanism	Black steel synchro-tilt mechanism with side tension or lock controls
Base and lift	Painted aluminum-alloy five-star base, steel gas-lift tube, and black polymer telescopic sleeve

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 80 mm stroke, controlled by the under-seat lever and allowing a 540 mm maximum seat height.
Synchro recline	Back and seat move in a synchronized ratio with 18-degree rear tilt and 3-position lock at 93, 102, and 108 degrees.
Tilt tension	Side knob adjusts resistance to 8 user-weight settings, with the mechanism selected for users up to 150 kg.
Headrest positioning	Padded headrest provides 60 mm height travel and 25-degree angle change for neck support during recline.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	820 x 660 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan and executive workstations	High back, headrest, and recline support 10 hour seated work for office, CAD, and administrative users.
Meeting and home-office use	Swivel casters and compact 690 mm footprint suit carpeted offices, study rooms, and shared conference workpoints.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERC-HM-OR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERC-HM-OR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERC-HM-OR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

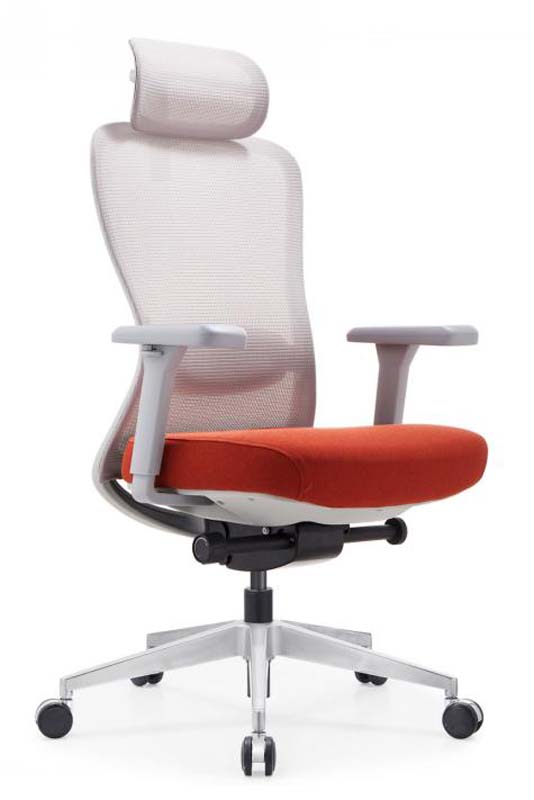

The ERC-HM-OR-01 is an unbranded high-back ergonomic office chair distinguished by a light gray elastic mesh backrest tensioned over a curved polymer outer frame, paired with an orange woven textile seat. The upright, contoured form includes a mesh-faced padded headrest, light gray molded polymer armrests with flat pads, and a painted aluminum-alloy five-star base. Black twin-wheel casters and a black telescopic sleeve complete a functional commercial appearance suited to professional and home settings. Its overall dimensions are 690 by 690 by 1290 millimeters, with 540 millimeters of clear width between the armrests. Construction combines breathable support and cushioned contact surfaces. The backrest includes a 70-millimeter padding thickness and a 240-millimeter lumbar support zone, while the seat uses a contoured molded polyurethane foam cushion at 45 kilograms per cubic meter, with a finished cushion thickness of 90 millimeters. Beneath the seat are a polymer seat pan, a black steel synchro-tilt mechanism, a steel gas-lift tube, and side controls for tension or lock adjustment. The headrest is mounted on an adjustable support, and the arm supports are injection molded in light gray polymer. The chair is designed for extended seated work and flexible posture changes. Pneumatic seat-height adjustment provides an 80-millimeter stroke through an under-seat lever, with a maximum seat height of 540 millimeters. The synchro-tilt mechanism moves the back and seat together, offers an 18-degree rear tilt, and locks in three positions at 93, 102, and 108 degrees. A side knob provides eight tilt-tension settings selected for users up to 150 kilograms. The headrest adjusts through 60 millimeters of height travel and a 25-degree angle change, giving neck support during recline. Swivel mobility and twin-wheel casters make the chair easy to reposition at workpoints. It is appropriate for open-plan offices, executive workstations, CAD and administrative roles, meeting spaces, shared conference points, study rooms, and home offices. The compact 690-millimeter footprint supports use across individual and shared work environments. Procurement planning should account for delivery as one set across two cartons, a packaged gross weight of 23 kilograms, and a reference assembly time of 40 minutes per set. Buyers should confirm flooring compatibility, assembly allocation, and whether a seat-slide function is required, because seat-slide durability applies only if that feature is supplied. Durability targets include 100,000 gas-lift height-adjustment cycles, 100,000 caster rolling cycles on hard flooring, 120,000 back cycles, and a static seat load verification target of 680 kilograms for one hour.

High-Back Mesh Ergonomic Office Chair with Headrest and Orange Seat Specifications
