PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1280 mm
Overall chair dimensions	680 x 680 x 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	21 kg
Seat foam thickness	65 mm
Seat foam density	45 kg/m3
Back mesh tensile target	180 N/50 mm
Seat upholstery abrasion acceptance	50,000 Martindale cycles
Gas lift class	Class 4
Back recline travel	18 degrees
Seat tilt travel	7 degrees
Warranty target	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest and headrest mesh	Grey woven flexible mesh over a black framed load-bearing structure
Seat cushion	Thick padded seat with grey woven fabric or mesh top and black side band
Internal seat shell	Molded polypropylene or plywood-composite seat board with 12 mm target thickness
Arm supports	Silver-finish metal or die-cast aluminum uprights with black padded arm caps
Five-star base	Polished or silver-coated aluminum five-star swivel base
Casters and mechanism	Black nylon twin-wheel casters, steel gas lift and black multi-lever steel mechanism

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 80 mm travel operated by the right-side lever under the seat
Recline and lock control	Synchronized tilt mechanism with 18-degree back travel and lock at upright, mid and reclined positions
Headrest adjustment	Height-adjustable headrest on a central bracket with 70 mm vertical travel and 15-degree angle pivot
Armrest adjustment	Height-adjustable arm pads with side release triggers and four positions over 70 mm

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive and workstation offices	Suitable for daily desk work at 720 to 760 mm office desks because it provides head support, recline and height adjustment
Meeting and home-office rooms	Suited to users needing a mobile swivel task chair with padded seat and breathable mesh back in private or shared workspaces

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 application	Use office chair dimensional requirements for seat, back and clearance verification
EN 1335-2 application	Specify safety test requirements including stability, structural failure and caster behavior
EN 1335-3 application	Use structural test methods for seat, back, armrest, base and gas-lift durability validation
EN 1022 application	Apply seating stability test method for forward, rearward and lateral tipping checks

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 application	Specify office-chair safety and durability tests including back, seat, arm, base and caster loads

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.2 application	Apply furniture mechanical test principles for chair stability and storage/product acceptance planning
GB/T 10357.3 application	Use chair strength and durability test methods for back, seat, arm and leg load verification
GB 17927 application	Specify upholstered furniture fire-safety properties only if the project market requires Chinese fire acceptance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.2 application: Apply furniture mechanical test principles for chair stability and storage/product acceptance planning;
2. GB/T 10357.3 application: Use chair strength and durability test methods for back, seat, arm and leg load verification;
3. GB 17927 application: Specify upholstered furniture fire-safety properties only if the project market requires Chinese fire acceptance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UEC-MESH-HB-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UEC-MESH-HB-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UEC-MESH-HB-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

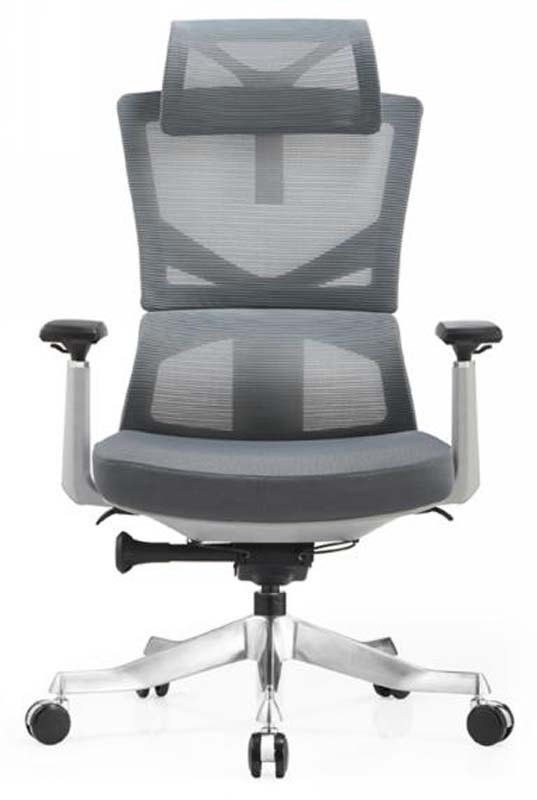

The UEC-MESH-HB-01 is an unbranded high-back ergonomic executive chair designed for professional workplaces and refined home offices. Its upright, structured silhouette combines a grey woven flexible mesh back and matching headrest with a thick upholstered padded seat, creating a balanced appearance between breathable open support and soft seating comfort. The black framed load-bearing structure behind the mesh provides visual definition, while the silver-finish metal or die-cast aluminum arm supports and polished or silver-coated aluminum five-star base give the chair an executive look. Black padded arm caps, mechanism covers, and nylon twin-wheel casters complete the coordinated commercial finish. Overall dimensions are 680 x 680 x 1280 mm, with a 540 mm clear width between the armrests. Construction centers on a molded polypropylene or plywood-composite seat board with a 12 mm target thickness, topped by a 90 mm finished cushion and 65 mm seat foam at 45 kg/m3 density. The seat uses grey woven fabric or mesh on the upper surface with a black side band. The backrest includes 70 mm of padding thickness and a 240 mm high lumbar support zone, while the grey mesh is specified to a 180 N/50 mm tensile target. Seat upholstery acceptance is rated to 50,000 Martindale cycles. A steel Class 4 gas lift, black multi-lever steel mechanism, aluminum swivel base, and twin-wheel casters support regular office use, with a recommended user weight capacity of 150 kg and a net weight of 21 kg. Functional adjustment is provided through a right-side under-seat lever for pneumatic height adjustment with 80 mm travel. The synchronized tilt mechanism offers 18 degrees of back travel and locks in upright, mid, and reclined positions. The headrest moves through 70 mm of vertical travel on a central bracket and pivots through 15 degrees, while the arm pads adjust through four positions across 70 mm using side release triggers. These controls support head support, recline, posture changes, and personalized arm positioning during long desk sessions. The chair is well suited to executive offices, individual workstations, meeting rooms, shared work areas, and home-office spaces, particularly for users seeking a mobile swivel task chair with breathable back support and a padded seat. It is intended for daily desk work with 720 to 760 mm office desks. Procurement teams should plan for assembly and handling: each set ships in two cartons with a packaged gross weight of 23 kg, reference carton dimensions of 850 x 420 x 720 mm, total carton volume of 0.26 m3, and a reference assembly time of 40 minutes. The indicative 20GP loading figure is 135 sets at 85 percent space utilization, useful for bulk-order logistics planning.

High-Back Mesh Ergonomic Executive Chair with Headrest and Aluminum Base Specifications
