PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 690 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	21 kg
Seat foam density	45 kg/m3
Back mesh tensile rating	400 N/50 mm
Fabric abrasion resistance	50,000 Martindale cycles
Gas lift stroke	80 mm
Back recline angle	135 degrees
Footrest static load	45 kg
Caster rolling durability	100,000 cycles
Base static load test target	1136 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest and headrest	Black woven flexible mesh over a polymer outer frame with visible internal support ribs
Seat cushion	Molded polyurethane foam covered with black woven fabric and a shaped waterfall front
Armrests	Rigid black polymer arm pads on black structural supports with polished die-cast aluminum side housings
Five-star base	Polished die-cast aluminum five-spoke base with tubular or profiled legs
Gas lift and center column	Chrome-plated steel telescopic gas lift with black upper collar
Casters	Black nylon or polyurethane twin-wheel swivel casters with metal mounting stems

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic lever adjusts seat height over an 80 mm stroke from 460 to 540 mm
Synchronized recline	Backrest reclines to 135 degrees while the seat tilts with the back through a synchronized mechanism
Head and neck support	Curved mesh headrest provides upper-neck support with height and angle adjustment on a central bracket
Lumbar support	Contoured central mesh frame targets the lower-back zone and is expected to provide height-adjustable support

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	1 carton
Gross weight	24 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to executive, administrative, and knowledge-worker desks where 540 mm seat height and recline support all-day task changes
Manager and home-office space	Fits private offices and premium home workstations because the high back, headrest, and footrest support task work and reclined breaks

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EM-HB-MESH-FT-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EM-HB-MESH-FT-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EM-HB-MESH-FT-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

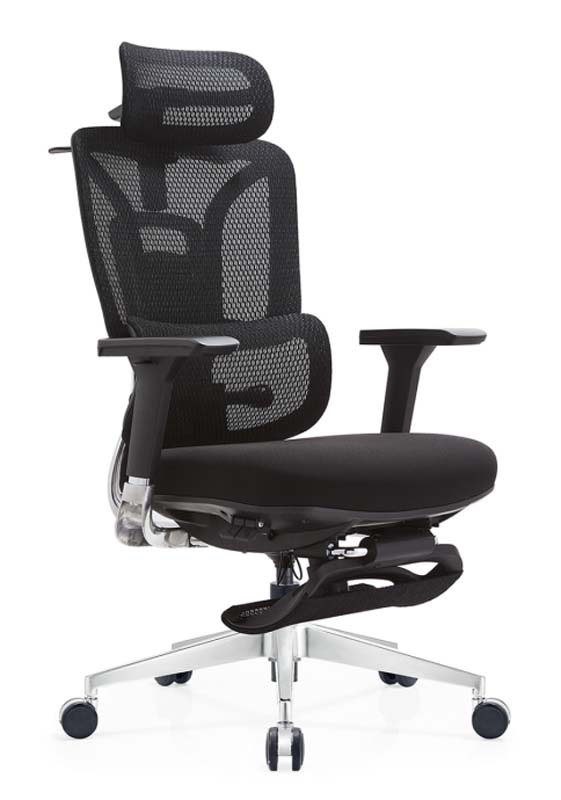

The Black Mesh High-Back Ergonomic Office Chair with Headrest and Footrest offers a complete seating solution for users seeking support through both focused work and relaxed recline. Its tall black mesh backrest creates a light, open visual profile, while the contoured central frame and visible internal support ribs give the back a structured appearance. The curved mesh headrest sits on a central bracket, and the retractable footrest extends the chair’s relaxed posture without changing its upright, executive-style form. Black polymer arm pads, polished die-cast aluminum side housings, and a polished five-spoke aluminum base add a contrasting commercial finish. Overall dimensions are 680 x 690 x 1290 mm, with a clear width of 540 mm between the armrests. Breathable woven flexible mesh is used for both the backrest and headrest, set within a polymer outer frame. The seat uses molded polyurethane foam at 45 kg/m3, upholstered in black woven fabric and finished with a shaped waterfall front. The cushion thickness is 90 mm, while backrest padding is 70 mm and the lumbar support zone is 240 mm high. Supporting components include polished aluminum base and supports, a chrome-plated steel telescopic gas lift with a black upper collar, black structural arm supports, rigid polymer arm pads, and black nylon or polyurethane twin-wheel swivel casters with metal mounting stems. The chair provides pneumatic seat-height adjustment across an 80 mm stroke, with seat height adjustable from 460 to 540 mm. Its synchronized mechanism allows the backrest to recline to 135 degrees while the seat tilts in coordination with the back. The headrest adjusts in height and angle for upper-neck support, and the contoured lumbar area is designed for height-adjustable lower-back support. The retractable footrest makes reclined breaks more practical, while the five-star base and swivel casters support mobility around a workstation. The chair has a recommended user weight capacity of 150 kg. This model is suited to executive offices, administrative workstations, knowledge-worker desks, private manager offices, and premium home-office spaces. Its combination of task support and recline features makes it appropriate where one chair is used for concentrated computer work, meetings, reading, and short rest periods. Procurement teams should note the chair is unbranded under model EM-HB-MESH-FT-01 and ships as a set intended for assembly, with a reference assembly time of 40 minutes. Available logistics information lists one carton and a gross weight of 24 kg, alongside reference packed data of two cartons and 23 kg per set, so packaging details should be confirmed at order placement. Material data includes a 400 N/50 mm back mesh tensile rating and 50,000 Martindale cycles for the seat fabric.

Black Mesh High-Back Ergonomic Office Chair with Headrest and Footrest Specifications
