PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 660 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Static seat load verification target	680 kg
Backrest cyclic durability target	120,000 cycles
Seat sliding durability target	100,000 cycles
Caster rolling durability target	100,000 cycles
Gas-lift stroke	100 mm
Swivel travel	360 degrees
Caster quantity	5 pieces
Color options	1 black finish visible
Warranty target	3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Black woven flexible mesh retained in a molded polymer frame
Seat cushion	Molded foam seat with black fabric or mesh-faced upholstery
Headrest	Curved black mesh panel over a molded polymer outer frame
Armrests	Fixed-height molded polymer arm posts with flat polymer pads
Frame and back supports	Black molded polymer back frame and side body with concealed structural support
Base and casters	Black glass-fiber-reinforced nylon five-star base with black nylon twin-wheel casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift operated by the visible right-side lever, with a 100 mm stroke
Recline system	Synchronized seat-and-back tilt with rear tension knob and 18-degree maximum back travel
Swivel and mobility	360-degree swivel seat mounted on five dual-wheel 60 mm casters for carpet or hard-floor movement
Arm support	Fixed-height T-shaped armrests provide 240 mm vertical support and lateral forearm contact

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to individual desk-based work where head, lumbar, arm, and swivel support are needed for full-day tasks
Meeting and home-office use	Suitable for conference rooms, manager workstations, and home offices with standard 760 mm desk heights

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-HBM-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-HBM-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-HBM-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

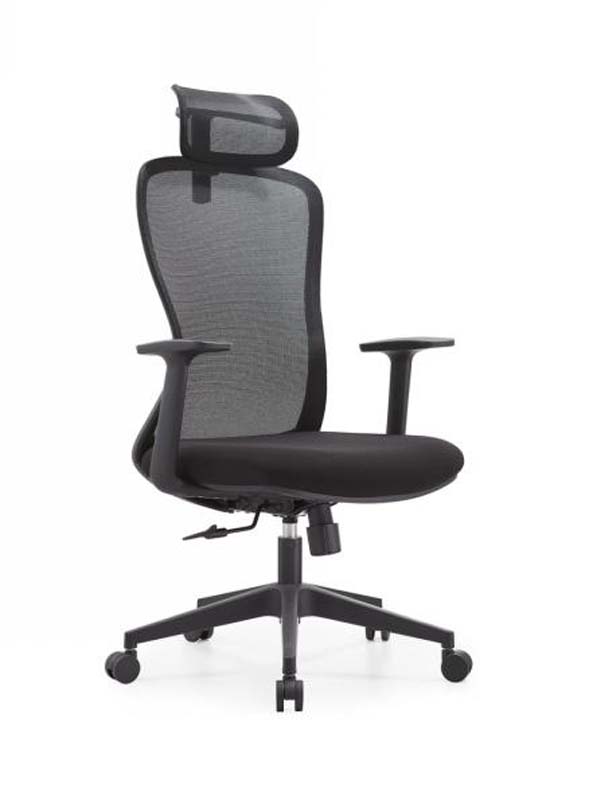

The High-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Arms, model ERG-HBM-01, is an unbranded task chair designed for individual desk work. Its tall black mesh back creates a light, open appearance while the curved mesh headrest provides a coordinated upper profile. A molded polymer frame and black side body shape the backrest, with structural support concealed within. The chair has an overall dimension of 660 by 660 by 1280 millimeters, a finished seat cushion thickness of 90 millimeters, backrest padding thickness of 70 millimeters, a lumbar support zone height of 240 millimeters, and a clear width of 540 millimeters between armrests. The T-shaped armrests use fixed-height molded polymer posts with flat polymer pads, offering 240 millimeters of vertical support and lateral forearm contact. Construction combines a black woven flexible mesh back and headrest with a molded foam seat upholstered in black fabric or mesh-facing material. Plastic components form the arms and frame, while the five-star base is made of black glass-fiber-reinforced nylon and fitted with black nylon twin-wheel casters. The chrome-plated gas lift provides height control. Functional features include pneumatic seat-height adjustment through a visible right-side lever, with a 100 millimeter stroke. A synchronized seat-and-back tilt mechanism uses a rear tension knob and permits 18 degrees of maximum back travel. The seat swivels 360 degrees and moves on five dual-wheel 60 millimeter casters intended for carpet or hard-floor use. The published user weight capacity is 136 kilograms. Verification targets include a 680 kilogram static seat load, 120,000 backrest cycles, 100,000 seat-sliding cycles, and 100,000 caster-rolling cycles. The chair is suited to full-day office workstation tasks requiring head, lumbar, arm, and swivel support. It also fits conference rooms, manager workstations, and home offices using standard 760 millimeter desk heights. Buyers should plan for assembly and receiving logistics: each set ships in two cartons, with a reference assembly time of 40 minutes. Packaged gross weight is 23 kilograms per set, carton dimensions are 850 by 420 by 720 millimeters, and carton volume is 0.26 cubic meters. The indicative 20GP loading quantity is 135 sets at 85 percent space utilization.

High-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Arms Specifications
