PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	610 × 600 × 1040 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested user weight capacity	120 kg
Net weight	13.5 kg
Single-seat capacity	1 person
Gas-lift height stroke	100 mm
Back tilt angle	18 degrees rearward
Seat rocking load test target	100 kg cyclic seat load
Caster rolling durability target	100,000 cycles
Base static-load selection target	1,136 kg downward load
Recommended occupant load	120 kg
Single occupant capacity	1 person

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Black flexible mesh set in a contoured plastic frame
Lumbar zone	Molded black plastic lumbar bridge with open flex slots
Seat cushion	70 mm molded polyurethane foam under black woven upholstery
Seat support shell	Rigid molded polymer seat pan with metal mounting plate
Armrests	Fixed black polymer T-arms with vertical posts and flat pads
Lift and base	Black painted steel five-star base with 50 mm gas column and nylon twin casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lift raises or lowers the seat through a 100 mm stroke using the right-side lever
Recline control	Tilt mechanism allows an 18-degree rearward recline with lever-activated tension setting
Swivel movement	360-degree swivel around the central gas-lift pedestal
Mobility	Five twin-wheel casters provide omnidirectional rolling movement on hard floors or low-pile carpet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan workstation	Use at 720 to 760 mm high desks for daily computer work by staff up to 120 kg.
Private office task desk	Suitable for managers or professionals requiring 360-degree swivel, recline, and rolling access.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1	Recommended dimensional reference for office task chairs during fit and ergonomic review.
EN 1335-2	Recommended safety and structural-performance reference for procurement acceptance.
EN 1335-3	Recommended test-method reference for verifying stability, strength, and durability.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1	Applicable standards and test results require confirmation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3	Recommended test reference for furniture strength and durability of seating used in procurement acceptance.
GB/T 28004.1	Recommended office-chair reference covering general technical requirements for office seating.
GB 17927	Recommended upholstered furniture fire-safety reference when project fire requirements apply.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3: Recommended test reference for furniture strength and durability of seating used in procurement acceptance.;
2. GB/T 28004.1: Recommended office-chair reference covering general technical requirements for office seating.;
3. GB 17927: Recommended upholstered furniture fire-safety reference when project fire requirements apply.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-TA-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-TA-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-TA-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

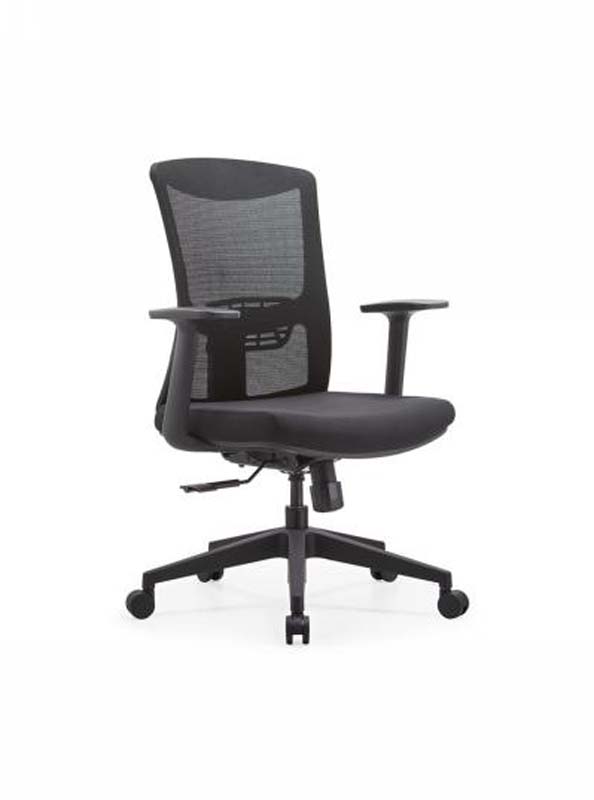

The Black Mesh Swivel Task Chair with Fixed T-Arms is a practical single-seat office chair designed for focused daily work. Its overall dimensions are 610 by 600 by 1040 mm, presenting a compact black visual profile suited to conventional desk settings. The flexible black mesh back is held in a contoured plastic frame, while a molded black plastic lumbar bridge with open flex slots defines the 240 mm high lumbar support zone. Fixed black polymer T-arms, with vertical posts and flat pads, frame the seat and leave a 540 mm clear width between them. The black painted steel five-star base, central gas-lift pedestal, and nylon twin casters complete the familiar task-chair silhouette. Construction balances breathable support with cushioned comfort. The backrest combines black mesh with 70 mm of padding, and the seat uses a 90 mm finished cushion built over 70 mm molded polyurethane foam and black woven upholstery. Beneath the cushion, a rigid molded polymer seat pan with metal mounting plate provides the load-bearing structure. The fixed armrests and back frame are finished in black polymer, coordinating with the black painted metal base. A 50 mm gas column connects the seat mechanism to the five-star base, which is fitted with nylon twin casters. The chair has a net weight of 13.5 kg and a suggested user weight capacity of 120 kg. Functionally, the chair is built for regular workstation movement. A right-side lever operates the pneumatic lift, raising or lowering the seat through a 100 mm height stroke. The tilt mechanism permits an 18-degree rearward recline and includes a lever-activated tension setting, while the central pedestal allows 360-degree swivel. Five twin-wheel casters provide omnidirectional rolling access on hard floors or low-pile carpet. Product validation targets include a 100 kg cyclic seat load for the rocking function and 100,000 cycles of caster rolling durability. This model is appropriate for open-plan workstations with 720 to 760 mm high desks and for private office task desks used by managers or professionals who need swivel, recline, and mobility. For procurement, each set is supplied in two cartons, with packaged gross weight of 23 kg and carton volume of 0.26 cubic meters. Reference assembly time is 40 minutes per set. Container planning can use 135 sets per 20GP at 85 percent space utilization. The unbranded model number is OC-MESH-TA-BLK-01.

Black Mesh Swivel Task Chair with Fixed T-Arms Specifications
