PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 620 × 1080 mm
Overall chair dimensions	650 x 620 x 1080 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	13.5 kg
Seat foam density	35 kg/m3
Seat foam indentation comfort grade	35% ball rebound
Mesh back static load target	136 kg
Base static-load target	1136 kg
Gas-lift class target	Class 4
Caster rolling durability target	100000 cycles
Seat-slide fatigue target	100000 cycles
Back-rest fatigue target	120000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back suspension	Gray woven mesh stretched over a gray molded polymer back frame
Seat surface	Gray mesh or mesh-textured fabric over a padded seat plate
Seat cushion	Molded polyurethane foam pad with 60 mm published thickness and 35 kg/m3 density target
Back frame	Gray glass-fiber-reinforced nylon or polypropylene Y-frame with open structural ribs
Armrests	Gray polymer uprights with dark gray soft-touch polymer top pads
Lift and mechanism	Black powder-coated steel gas-lift column with steel tilt mechanism under the seat

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with a 100 mm target stroke, controlled by the visible right-side lever.
Recline movement	Center-tilt mechanism with 110degree back travel and single-position lock target.
Tilt tension	Rear rotary tension knob adjusts resistance for user weight and recline force.
Swivel mobility	360-degree swivel seat around the gas-lift center column.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open office workstations	Suited to 760 mm high desks where swivel, height adjustment, and rolling access support daily computer work.
Home study or shared workroom	Compact 650 mm footprint and fixed armrests fit individual desks, hoteling stations, and shared administrative seating.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UMB-MT-GRY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UMB-MT-GRY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UMB-MT-GRY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

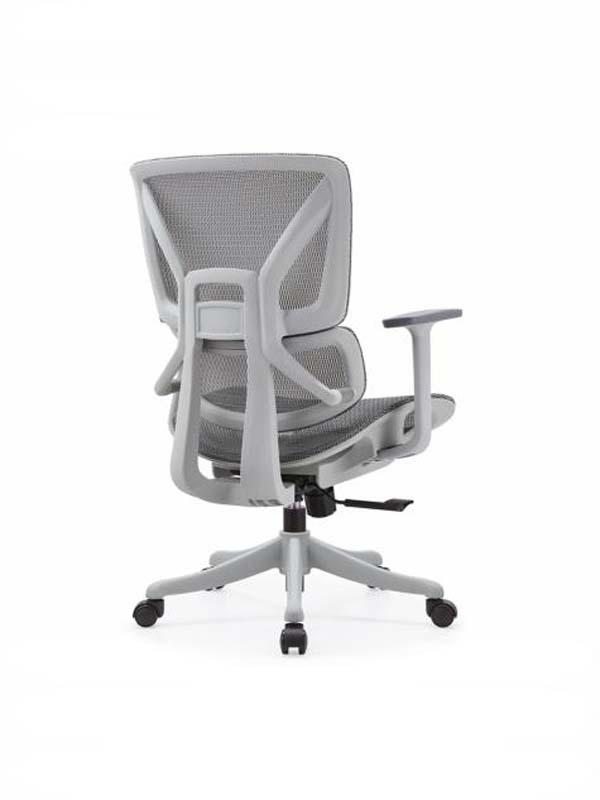

The UMB-MT-GRY-01 is an unbranded mid-back mesh swivel task chair designed for practical daily office seating. Its coordinated gray appearance combines a molded polymer back frame, mesh back and seat surfaces, and fixed armrests with dark gray soft-touch top pads. The chair has a measured footprint of 650 mm wide by 620 mm deep and an overall height of 1080 mm. A five-star black nylon base, twin-wheel casters, and central gas-lift column give the chair a familiar task-chair silhouette, while the open Y-frame and structural ribs keep the back visually light. Clear spacing between the armrests is 540 mm, providing defined shoulder and arm room at the seat. Construction uses a gray glass-fiber-reinforced nylon or polypropylene back frame, gray woven mesh suspension, and a seat surface of gray mesh or mesh-textured fabric over a padded seat plate. The seat includes a molded polyurethane foam cushion with a 90 mm finished thickness, 60 mm published foam thickness, and 35 kg/m3 density target, with a stated comfort grade of 35 percent ball rebound. Backrest padding thickness is 70 mm, and the lumbar support zone is 240 mm high. Under the seat are a black powder-coated steel gas-lift column and steel tilt mechanism. The gas lift has a Class 4 target, and the recommended user weight capacity is 120 kg. Static-load targets are 136 kg for the mesh back and 1136 kg for the base. The net chair weight is 13.5 kg. Functionality centers on adjustable and mobile work positioning. A visible right-side lever operates pneumatic seat-height adjustment with a 100 mm target stroke. The center-tilt mechanism provides 110 degrees of back travel with a single-position lock target, while a rear rotary knob controls tilt tension to match recline resistance to user weight and preference. The seat rotates 360 degrees around the center column, and twin-wheel casters support rolling access around a workstation. Fixed armrests offer consistent upper-body support without added adjustment complexity. The chair is suited to open-office workstations at 760 mm high desks, where swivel movement, height adjustment, and rolling mobility support routine computer tasks. Its scale also fits home studies, shared workrooms, hoteling stations, and individual or shared administrative desks. Procurement planning should note that each set ships in two cartons, with packaged gross weight of 23 kg and carton volume of 0.26 cubic meter per set. Reference carton dimensions are 850 by 420 by 720 mm, reference assembly time is 40 minutes per set, and indicative loading is 135 sets in a 20GP container at 85 percent space utilization. These details make the model appropriate for buyers seeking a uniform gray mesh task chair for general workplace, study, or shared seating programs.

Mid-Back Mesh Swivel Task Chair with Fixed Armrests Specifications
