PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1040 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight	120 kg
Net weight	14.5 kg
Seat foam density	45 kg/m3
Back mesh tensile load	120 kg static reference
Base static load reference	500 kg
Caster rolling durability	100000 cycles
Gas-lift cycles	100000 height-adjustment cycles
Seating capacity	1 person
Warranty target	3 years
Color options	2 finishes

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Light grey polymer outer frame with woven light-grey elastic mesh panel
Seat cushion	Dark grey fabric-upholstered padded cushion over molded foam
Lumbar mechanism	Grey polymer lumbar shell with circular tension knob and curved support wings
Armrests	Grey polymer T-shaped fixed supports with rounded padded contact pads
Base and gas lift	Grey nylon five-star base with black or dark-grey steel center column and gas lift
Casters and chassis	Black twin-wheel nylon casters and black metal-reinforced tilt mechanism under the seat

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swivel and lift	360-degree swivel seat with 100 mm pneumatic height travel controlled by the under-seat lever
Recline movement	Synchronized tilt mechanism with 15-degree backward recline and tension-adjustment knob at the rear lumbar area
Lumbar support	Curved rear lumbar support applies pressure to the lower mesh zone through a central rotary knob
Mobility	Five black twin-wheel casters enable rolling on hard floors or low-pile carpet and distribute load around a 650 mm base

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	680 x 600 x 340 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstations	Suitable for open-plan desks, home offices and administrative workstations requiring breathable back support and rolling mobility
Meeting or study spaces	Usable in focused study rooms, hot desks and temporary meeting positions where a compact mid-back chair is required

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UBC-MESH-MB-GRY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UBC-MESH-MB-GRY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UBC-MESH-MB-GRY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

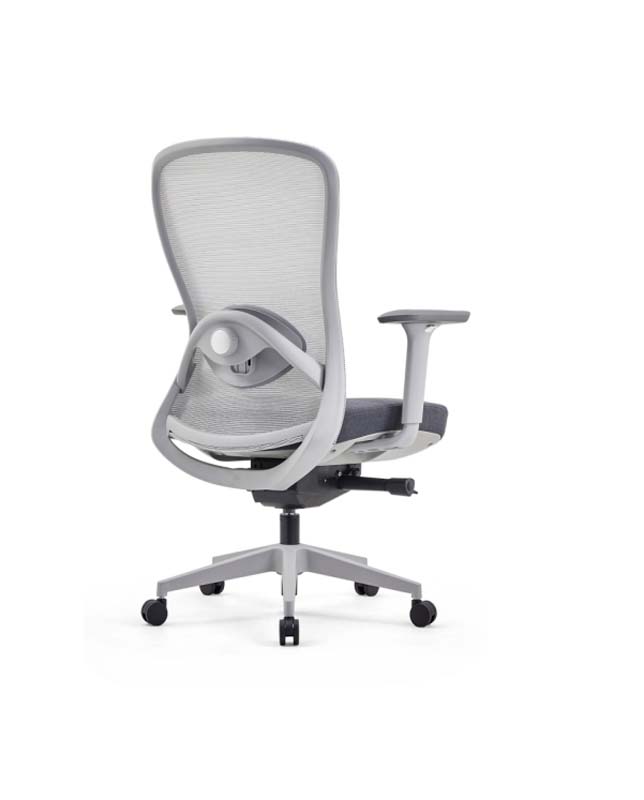

The UBC-MESH-MB-GRY-01 is an unbranded mid-back ergonomic task chair designed for daily desk use where breathable support, straightforward adjustment, and rolling mobility are priorities. Its overall form is structured around a light grey polymer outer back frame with a woven light-grey elastic mesh panel. The dark grey upholstered seat creates a measured visual contrast, while the grey T-shaped fixed armrests, grey nylon five-star base, and black twin-wheel casters complete a neutral commercial appearance suited to coordinated grey office interiors. The chair’s layout places the user within a 650 mm wide and deep footprint with a 1040 mm overall height. The backrest includes 70 mm of padding thickness and a 240 mm high lumbar support zone, while the finished seat cushion is 90 mm thick. The clear width between the armrests is 540 mm. Fixed armrests provide consistent support without adding width-adjustment complexity, and their rounded padded contact pads offer a comfortable resting surface during keyboard or writing tasks. Construction combines a molded foam seat cushion upholstered in dark grey fabric with an elastic mesh back and polymer support structure. The lumbar mechanism uses a grey polymer shell with curved support wings and a circular tension knob. Under the seat are a black metal-reinforced tilt mechanism and a steel gas lift with a black or dark-grey center column. The grey nylon five-star base supports black twin-wheel nylon casters, balancing light handling with a stable rolling foundation. Functional features include a 360-degree swivel seat and 100 mm of pneumatic height travel controlled by an under-seat lever. The synchronized tilt mechanism allows a 15-degree backward recline, with tension adjusted through the rear lumbar knob. The curved lumbar support applies pressure to the lower mesh zone through the central rotary control, helping the backrest conform to individual posture preferences. The five casters distribute load around the base and are intended for hard floors or low-pile carpet. This chair is appropriate for open-plan office workstations, administrative desks, home offices, study rooms, hot desks, and temporary meeting positions. It is especially relevant where a compact mid-back profile is preferred. Procurement teams should note the 120 kg recommended user weight, fixed armrest configuration, 40-minute reference assembly time, and delivery as one set in two cartons. The neutral finish and practical movement features make it a sound choice for multi-user and flexible seating environments.

Mid-Back Mesh Ergonomic Task Chair with Lumbar Support and Fixed Armrests Specifications
