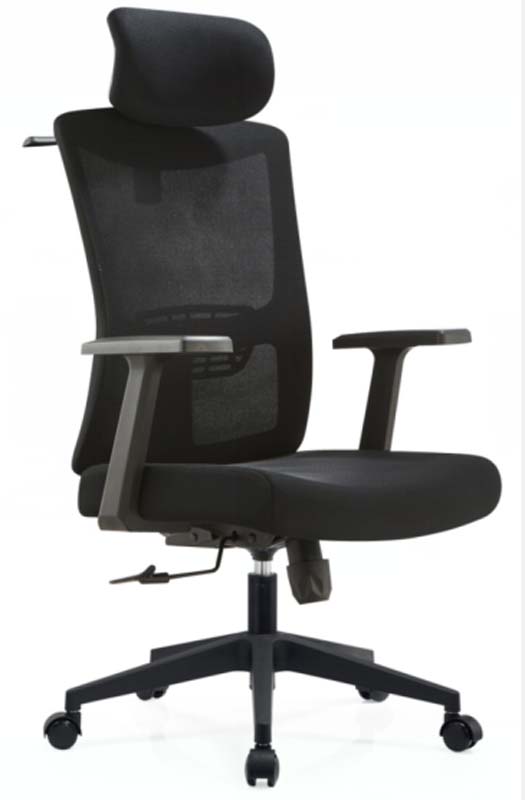

Product supplierHigh-Back Mesh Ergonomic Office Chair with Headrest and Fixed Arms, Black flexible mesh stretched over a curved black polymer or nylon outer frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 650 × 650 × 1260 mm | |
|---|---|---|
| Seat depth | 480 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 16.5 kg | |
|---|---|---|
| Rated user weight | 136 kg | |
| Static seat load verification | 680 kg | |
| Base static load verification | 1134 kg | |
| Caster rolling durability | 100000 cycles | |
| Gas-lift vertical durability | 100000 cycles | |
| Backrest tilt durability | 300000 cycles | |
| Seat foam density | 45 kg/m3 | |
| Foam rebound | 42 percent | |
| Fabric abrasion resistance | 50000 Martindale cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest construction | Black flexible mesh stretched over a curved black polymer or nylon outer frame | |
|---|---|---|
| Seat cushion | Molded high-resilience polyurethane foam with black woven fabric upholstery | |
| Headrest | Black upholstered foam cushion on a height-adjustable support bracket | |
| Armrests | Rigid black nylon or PP T-shaped supports with flat polymer arm pads | |
| Central mechanism | Black steel tilt plate and polymer lever housing under the seat | |
| Gas lift | Chrome-plated steel upper tube with black painted steel outer cylinder |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat height adjustment | Pneumatic gas lift raises the seat through a 100 mm stroke using the right-side lever | |
|---|---|---|
| Backrest recline | Synchro or knee-tilt mechanism reclines to 128 degrees with tension control and lock at 95, 108, 118, and 128 degrees | |
| Swivel movement | 360-degree swivel around the central gas-lift axis with five-point caster support | |
| Mobility | Five twin-wheel swivel casters provide rolling movement on hard floors and low-pile carpet |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 680 x 620 x 340 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstation use | Suitable for individual workstations and open-plan offices requiring 4 to 8 hours of seated task support | |
|---|---|---|
| Home office or meeting use | Suitable for home offices, study rooms and temporary meeting seating where mobility and swivel access are required |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1:2020 applicability | Use for office chair dimensions, safety zones and structural terminology | |
|---|---|---|
| EN 1335-2:2018 applicability | Use for office-chair safety, stability and structural performance testing | |
| EN 1335-3:2020 applicability | Use for office-chair mechanical test methods and acceptance verification | |
| EN 1022:2018 applicability | Use for seating stability testing on the finished chair |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 applicability | Applicable standards and test results require confirmation |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2024 applicability | Use for general wooden-furniture dimensional and inspection requirements where applicable to upholstered seat components | |
|---|---|---|
| GB/T 10357.6-2013 applicability | Use for chair mechanical durability test methods during procurement inspection | |
| GB 17927-2024 applicability | Use for upholstered furniture safety and harmful-substance limits |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2024 applicability: Use for general wooden-furniture dimensional and inspection requirements where applicable to upholstered seat components; 2. GB/T 10357.6-2013 applicability: Use for chair mechanical durability test methods during procurement inspection; 3. GB 17927-2024 applicability: Use for upholstered furniture safety and harmful-substance limits; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
