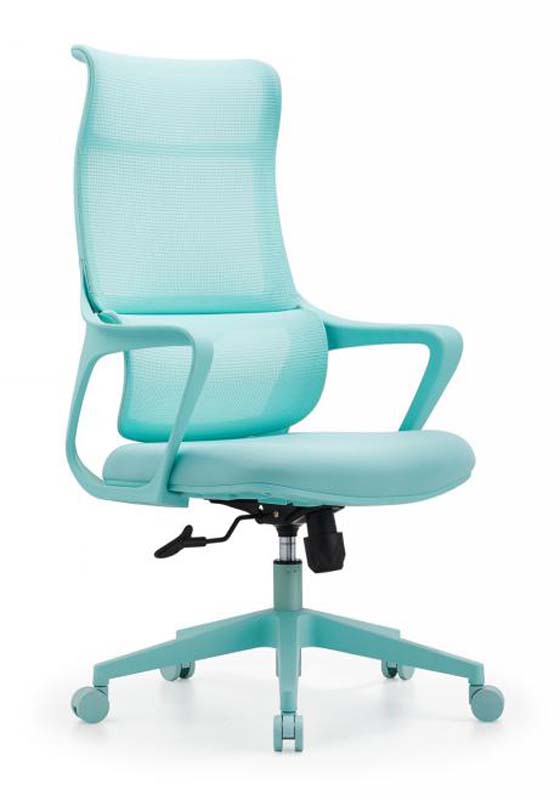

Product supplierMint Mid-Back Mesh Swivel Office Chair with Fixed Armrests, Mint-colored woven polyester mesh stretched over a molded frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 630 × 620 × 1060 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 120 kg | |
|---|---|---|
| Net weight | 12.5 kg | |
| Seat static load verification target | 340 kg | |
| Backrest static pull verification target | 136 kg | |
| Caster rolling durability | 100000 cycles | |
| Gas-lift cycling durability | 100000 cycles | |
| Seat height lift travel | 100 mm | |
| Seat foam density | 45 kg/m3 | |
| Back mesh tensile verification target | 120 kg | |
| Recommended user height range | 1850 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest support fabric | Mint-colored woven polyester mesh stretched over a molded frame | |
|---|---|---|
| Seat upholstery | Mint woven fabric or mesh-faced cover over contoured foam cushion | |
| Internal seat board | 12 mm molded plywood or engineered composite seat pan | |
| Cushion foam | 70 mm molded polyurethane foam with 45 kg/m3 density target | |
| Armrest and back frame | One-piece mint-painted molded polypropylene loop frame with integrated fixed arms | |
| Gas lift and mechanism | Black steel tilt mechanism, 50 mm chrome sleeve and mint-painted steel gas cylinder |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Swivel function | 360-degree seat rotation around the central gas-lift spindle | |
|---|---|---|
| Height adjustment | Pneumatic lever raises the seat through 100 mm between 420 mm and 520 mm | |
| Backrest recline | Synchro-style tilt mechanism reclines the back to 12 degrees with one-position lock | |
| Fixed armrest support | Integrated loop arms provide 230 mm forearm support without width, height or pivot adjustment |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstation use | Suitable for individual desks in open offices and home offices because of swivel, height adjustment and caster mobility | |
|---|---|---|
| Meeting and study spaces | Fits compact meeting rooms, study rooms and hot-desk areas with a 630 mm footprint and mint color finish |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1 office seating dimensions | Check seat height, depth, back support and clearance against office-chair dimensional requirements | |
|---|---|---|
| EN 1335-2 safety and strength | Use structural safety, stability and caster strength requirements for acceptance testing | |
| EN 1335-3 test methods | Specify static load, fatigue and stability tests through recognized laboratory methods | |
| EN 1021-1 cigarette ignition | Require upholstery cigarette-ignition testing if fabric is used in commercial projects |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 office chairs | Use back, seat, base, arm and caster load tests for commercial-task-chair acceptance |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.3 furniture mechanical test | Apply seat and back strength and durability tests to the chair structure | |
|---|---|---|
| GB/T 28001-2011 ergonomic guidance | Use desk-task seating clearance and basic posture dimensions during procurement review | |
| GB 18584 indoor furniture limit | Require formaldehyde emission verification for wood-based seat components |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.3 furniture mechanical test: Apply seat and back strength and durability tests to the chair structure; 2. GB/T 28001-2011 ergonomic guidance: Use desk-task seating clearance and basic posture dimensions during procurement review; 3. GB 18584 indoor furniture limit: Require formaldehyde emission verification for wood-based seat components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
