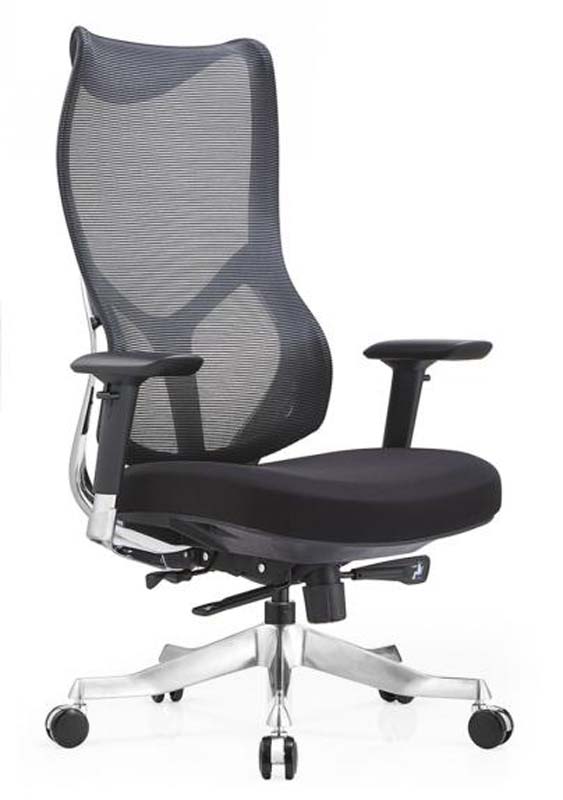

Product supplierHigh-Back Mesh Ergonomic Executive Office Chair, Breathable dark polymer mesh stretched over a contoured frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 680 × 700 × 1240 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 150 kg | |
|---|---|---|
| Net weight | 20 kg | |
| Seat static-load acceptance target | 160 kg | |
| Backrest rearward force target | 136 kg | |
| Gas-lift service class target | Class 4 | |
| Caster rolling durability target | 100000 cycles | |
| Seat height adjustment cycles target | 100000 cycles | |
| Seat foam density | 45 kg/m3 | |
| Foam rebound rate | 40% | |
| Typical user body-height range | 1900 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest support fabric | Breathable dark polymer mesh stretched over a contoured frame | |
|---|---|---|
| Seat surface | Black woven fabric or mesh-faced upholstery over padded cushion | |
| Cushion core | 80 mm molded polyurethane foam target at 45 kg/m3 | |
| Arm pads | Black molded polyurethane pads on height-adjustable support posts | |
| Back support structure | Chrome-finish tubular side frame with internal lumbar frame | |
| Base and center column | Polished die-cast aluminum five-star base with steel gas-lift cylinder |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat-height adjustment | Pneumatic lift raises the seat from 450 to 530 mm using the right-side lever | |
|---|---|---|
| Back tilt and tension | Multi-position synchro recline with rear tilt tension control and 18-degree maximum travel | |
| Armrest adjustment | Height-adjustable arm posts with 70 mm travel and black fixed-angle pads | |
| Swivel and mobility | 360-degree swivel seat mounted on five 60 mm twin-wheel casters |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 720 x 640 x 360 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstations | Suits executive, managerial, and dedicated computer workstations requiring high-back support and mobility | |
|---|---|---|
| Meeting and home-office spaces | Appropriate for prolonged desk use where breathable back support and padded seating are required |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
