PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 690 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	21 kg
Recommended user weight capacity	150 kg
Suitable user height	165 to 190 cm
Backrest recline range	95 to 135 degrees
Seat tilt travel with mechanism	8 degrees
Gas lift height travel	80 mm
Caster rolling durability target	100000 cycles
Seat static load verification target	1020 kg
Base static load verification target	1134 kg
Daily user capacity	1 user

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Gray breathable polymer mesh stretched over a contoured load-bearing frame
Seat support structure	Molded cushion carrier with elastic mesh suspension and lower plastic seat shell
Back frame and arm supports	Light gray injection-molded structural polymer with integrated side brackets
Arm contact pads	Soft polyurethane pads bonded to rigid arm plates
Headrest	Curved polymer-framed mesh pad on a height-adjustable central bracket
Five-star base	Polished die-cast aluminum five-star base with five spoke arms

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift raises the seat 80 mm through a right-side lever for 460 to 540 mm desk height matching
Recline and lock control	Synchronized seat-and-back tilt supports 95 to 135 degrees with multiple lock positions for task, meeting, and rest postures
Headrest positioning	Curved mesh headrest provides neck support through height and angle adjustment on a central bracket
Armrest adjustment	Padded armrests provide 70 mm height adjustment and horizontal repositioning to align with standard desk edges

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive and open-plan offices	Suited to long desk work where head, lumbar, arm, and leg support reduce posture changes during computer tasks
Home office and study room	Fits a 1200 mm or wider desk zone and provides recline plus footrest for work, reading, and short breaks

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERM-GRY-FT-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERM-GRY-FT-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERM-GRY-FT-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

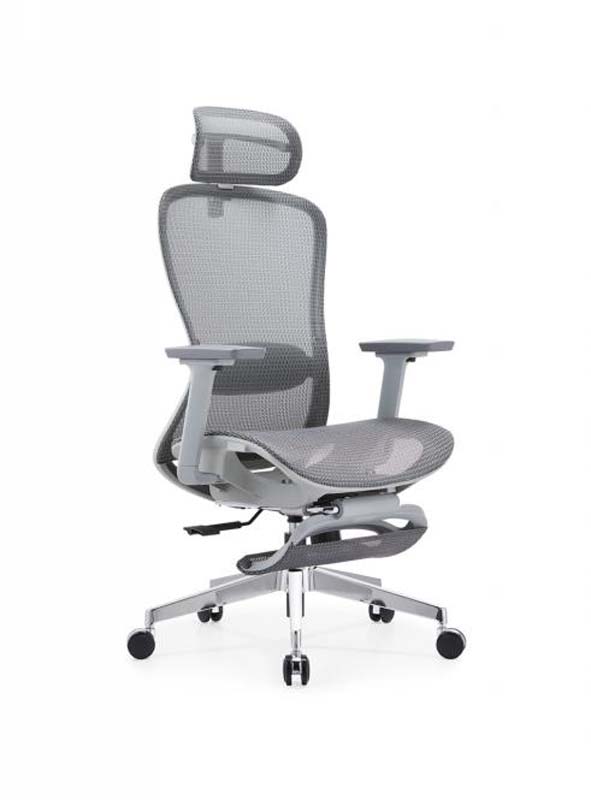

The Gray Mesh Ergonomic Executive Chair combines a high-back office silhouette with integrated comfort features intended for sustained desk work and short rest breaks. Its visual character is defined by gray breathable mesh across the seat and back, light gray polymer arm and back components, and a polished die-cast aluminum five-star base. The curved mesh headrest sits on a central height-adjustable bracket, while the padded arms and contoured back create a structured executive appearance suited to modern commercial interiors. Construction balances resilient support with a lightweight visual profile. The seat and back upholstery uses gray breathable polymer mesh stretched over a contoured load-bearing frame. Beneath the seat, a molded cushion carrier with elastic mesh suspension and a lower plastic shell provides internal support. The finished seat cushion is 90 mm thick, and the backrest includes 70 mm of padding depth with a 240 mm high lumbar support zone. Arm contact surfaces use soft polyurethane pads bonded to rigid arm plates, and the back frame and arm supports are made from light gray injection-molded structural polymer. Mobility is provided by a chrome gas lift, polished aluminum spoke base, and nylon casters. The chair has a net weight of 21 kg and a recommended user weight capacity of 150 kg, with sizing oriented to users from 165 to 190 cm tall. Functional adjustment is centered on a synchronized seat-and-back tilt mechanism. The backrest reclines from 95 to 135 degrees and offers multiple lock positions for upright task work, meeting postures, and relaxed reclining. The seat moves through 8 degrees of tilt with the mechanism, and the pneumatic lift provides 80 mm of seat-height travel through a right-side lever, supporting desk-height matching from 460 to 540 mm. The headrest adjusts in height and angle, while the armrests offer 70 mm of height adjustment and horizontal repositioning to align with standard desk edges. The retractable footrest extends the chair’s use beyond computer tasks into reading or brief breaks.

Gray Mesh Ergonomic Executive Chair with Headrest and Retractable Footrest Specifications
